GEARBOX

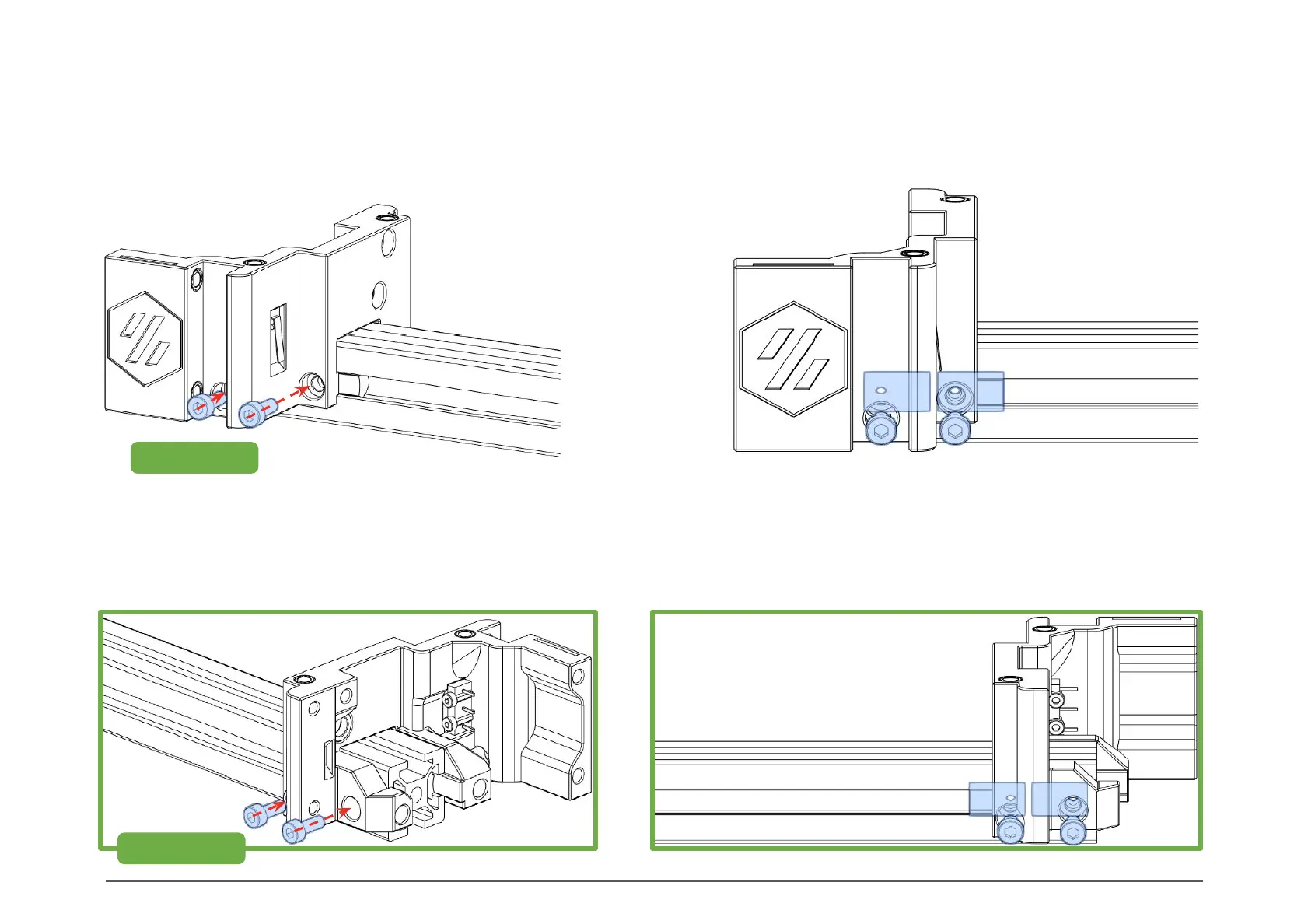

SEATING THE 2020
Start each of the 4 M3x8 screws into the M3 T nuts that you inserted earlier. Once all four
are started, take care the 2020 extrusion remains seated against Gear_Box_Front while
tightening the M3x8 screws. It it important for the alignment of the Gearbox.
M3x8 SHCS
M3x8 SHCS
2020 INSTALLATION
