GEARBOX
M3 Heat Set Inserts
MR85ZZ Bearing
Gear_Box_Back

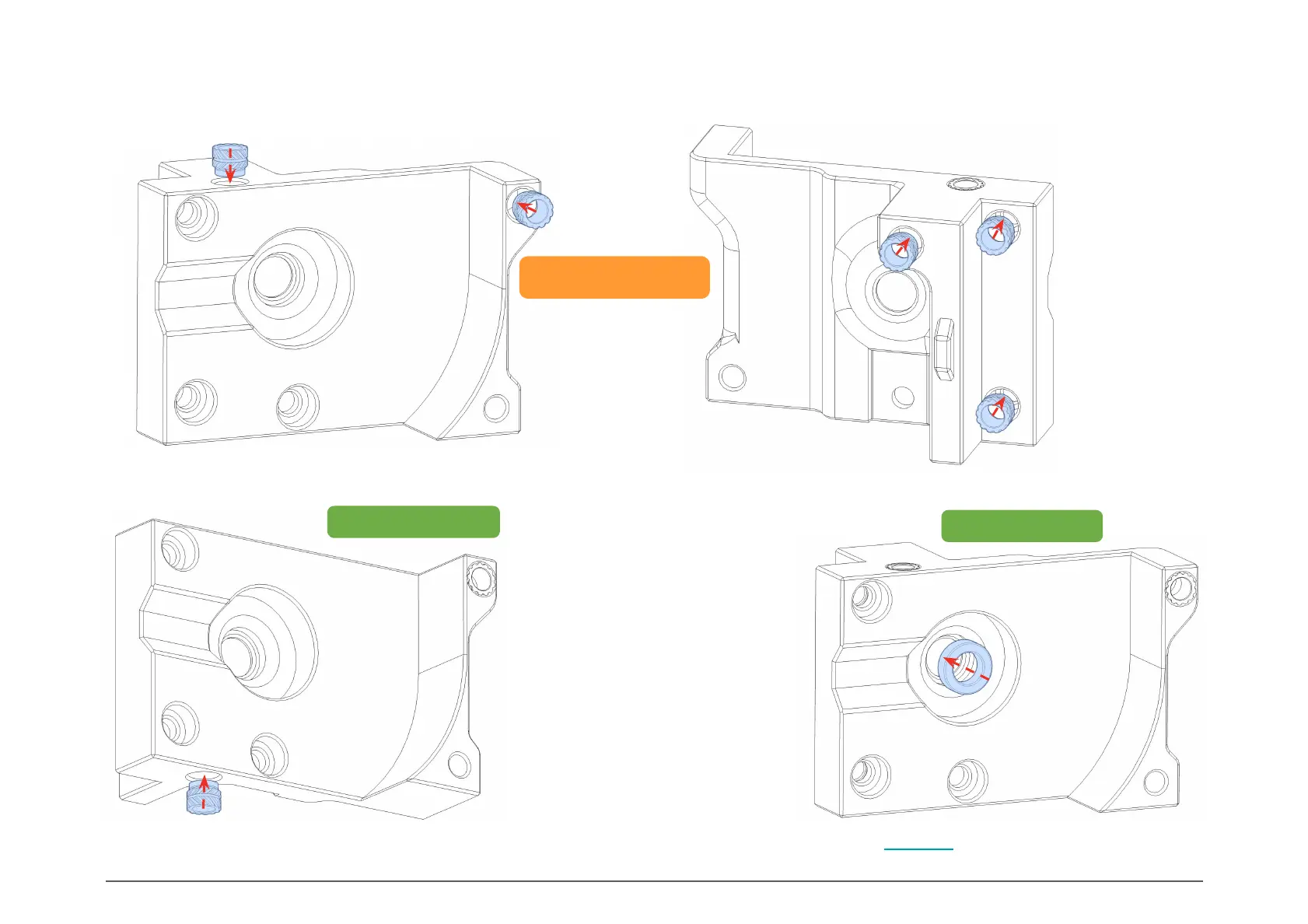

GEARBOX BACK PREPARATION
MR85ZZ BEARING INSERTION
If your printed parts are
accurate, the bearing should
press-fit easily into place. If
you’re having trouble seating
the bearings, make sure the
channel is clear of drooping
overhangs, and try pulling the
bearing into place with an M5
bolt.
HEAT SET INSERTS
The list of pages with heat set inserts is on Page 15.
