FILAMENT BLOCKS
BASE TRAP (BRAKE)
This traps the filament when it is not in use so it
doesn't fall out of the Base. If you choose to use
the M3 set screw version of the Base_Trap
(recommended), make sure the set screw is
screwed flush into the Base_Trap and doesn't
protrude. Also make sure the filament hole in the
Base_Trap is clear and free of stringing.
M3x3mm set screw
ASSEMBLY

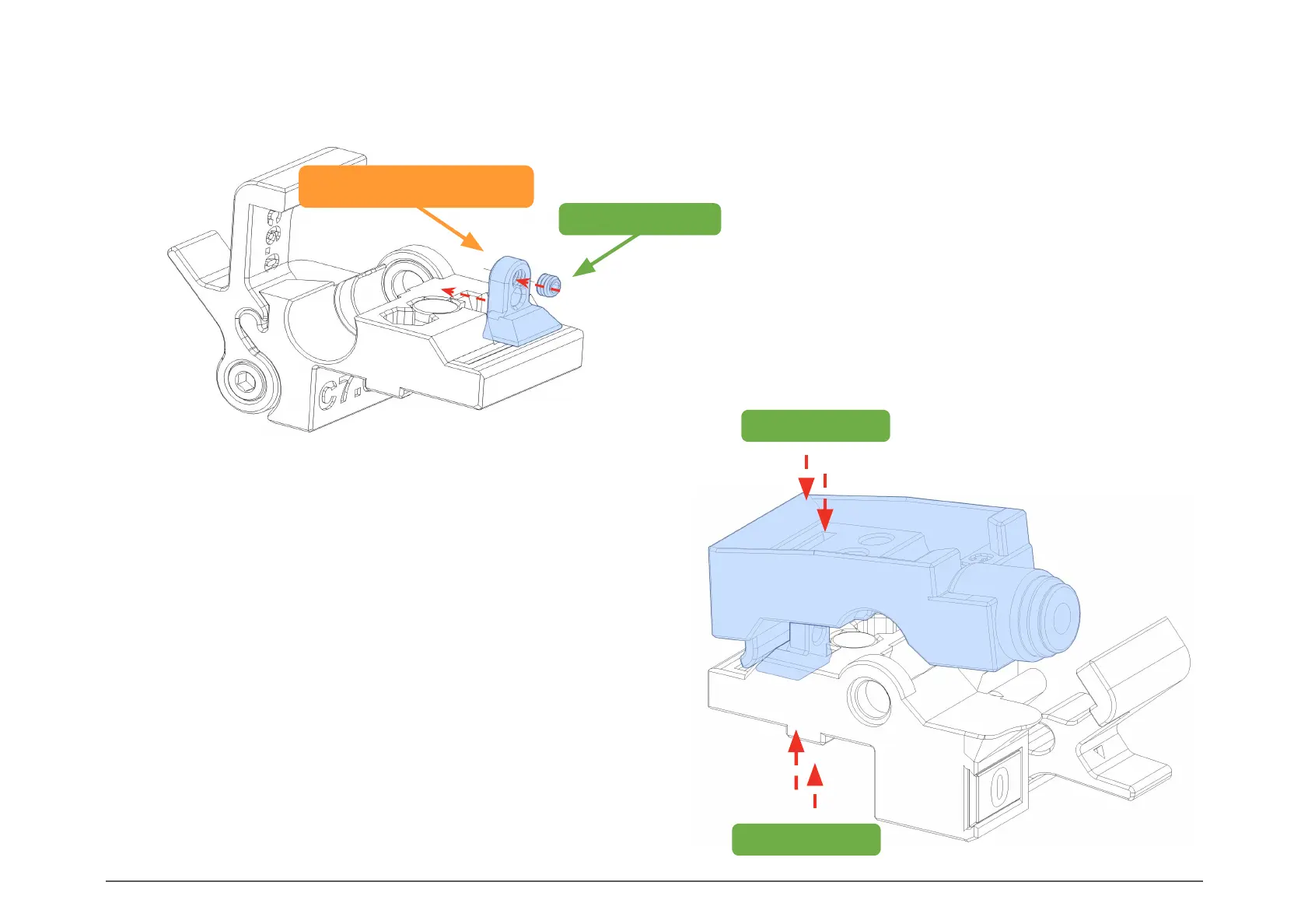

Open the Latch. Next, line up the Filament_Path
vertically with the Base, and make sure that the
Base_Trap fits into its slot on the Filament_Path.
Squeeze gently until they snap together. Close the
Latch.
Repeat assembly of all of the parts into Filament Blocks.
To separate, pull apart at a slight angle, but be careful
not to break the hinge.
Press Together
Press Together
[a]_Base_Trap_M3_xN
TRAP AND BLOCK ASSEMBLY
