CAD version: ERCF V2
FIT CHECK
When snapped together the filament block parts should pivot freely on the
rear hinge, repelled by the magnetic spring. The Base_Trap should move
smoothly without binding or preventing the parts from closing or opening.
If the parts interfere or bind as you press them together, then you will need
to disassemble them. Use a small file or hobby knife to clean out any
stringing in the Base_Trap slot, and square up its corners (see page 57).
Depending on how well calibrated your printer is, you might also need to
lightly sand or file the sides of the Base_Trap to improve fit until the the
parts move freely.
Remove the Filament_Path and and set it aside. Repeat for all Filament
Blocks.
6363
FILAMENT BLOCKS
ASSEMBLY

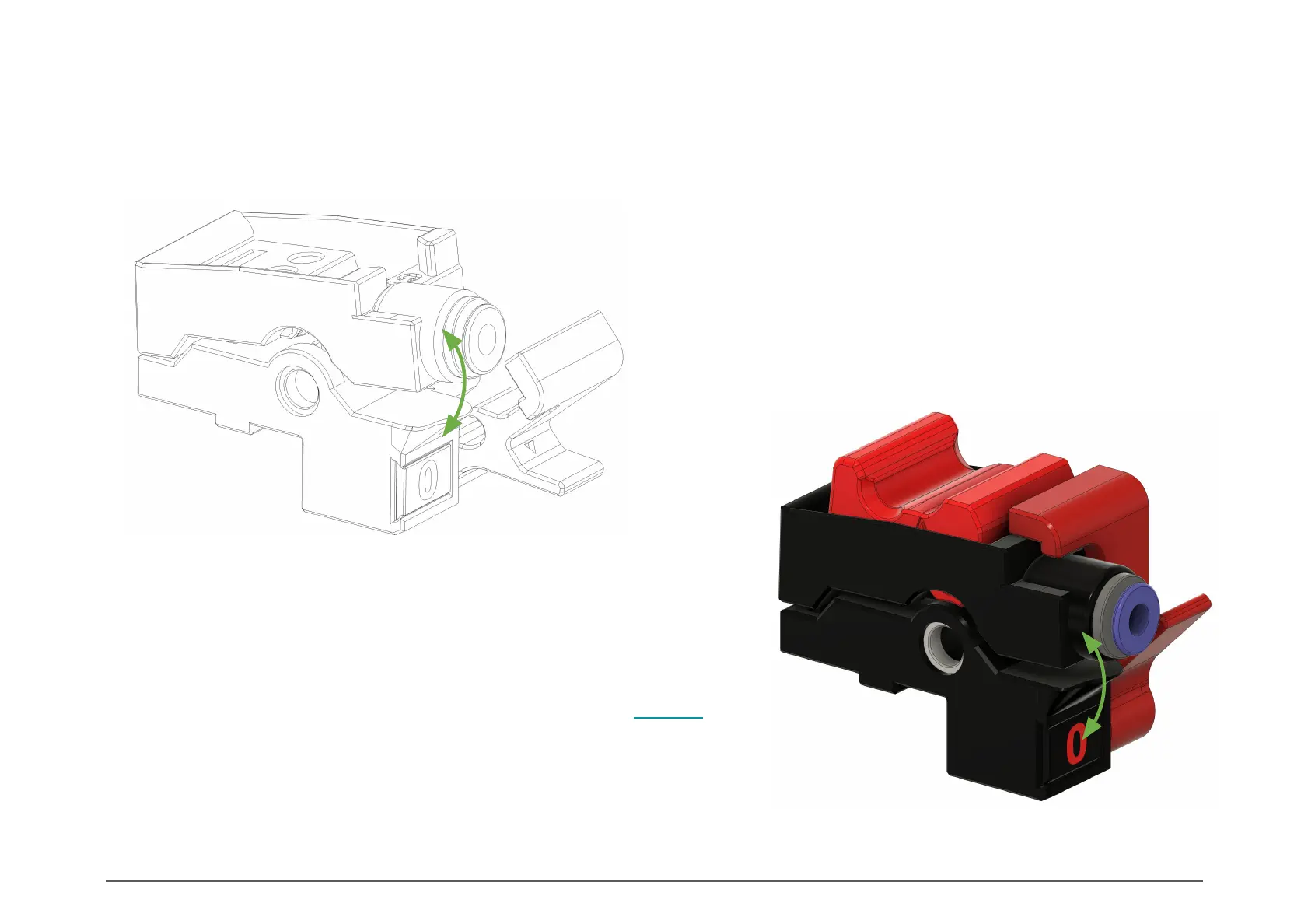

Insert the Tophat, hinge into the groove on the
Filament_Path. Close the Latch and press everything
together to make sure that it pivots nicely.
Remove the Tophat and set it aside for the moment.
FIT CHECK
