WWW.VORONDESIGN.COM
CAD version: ERCF V2
6464
FILAMENT BLOCKS
TOLERANCES

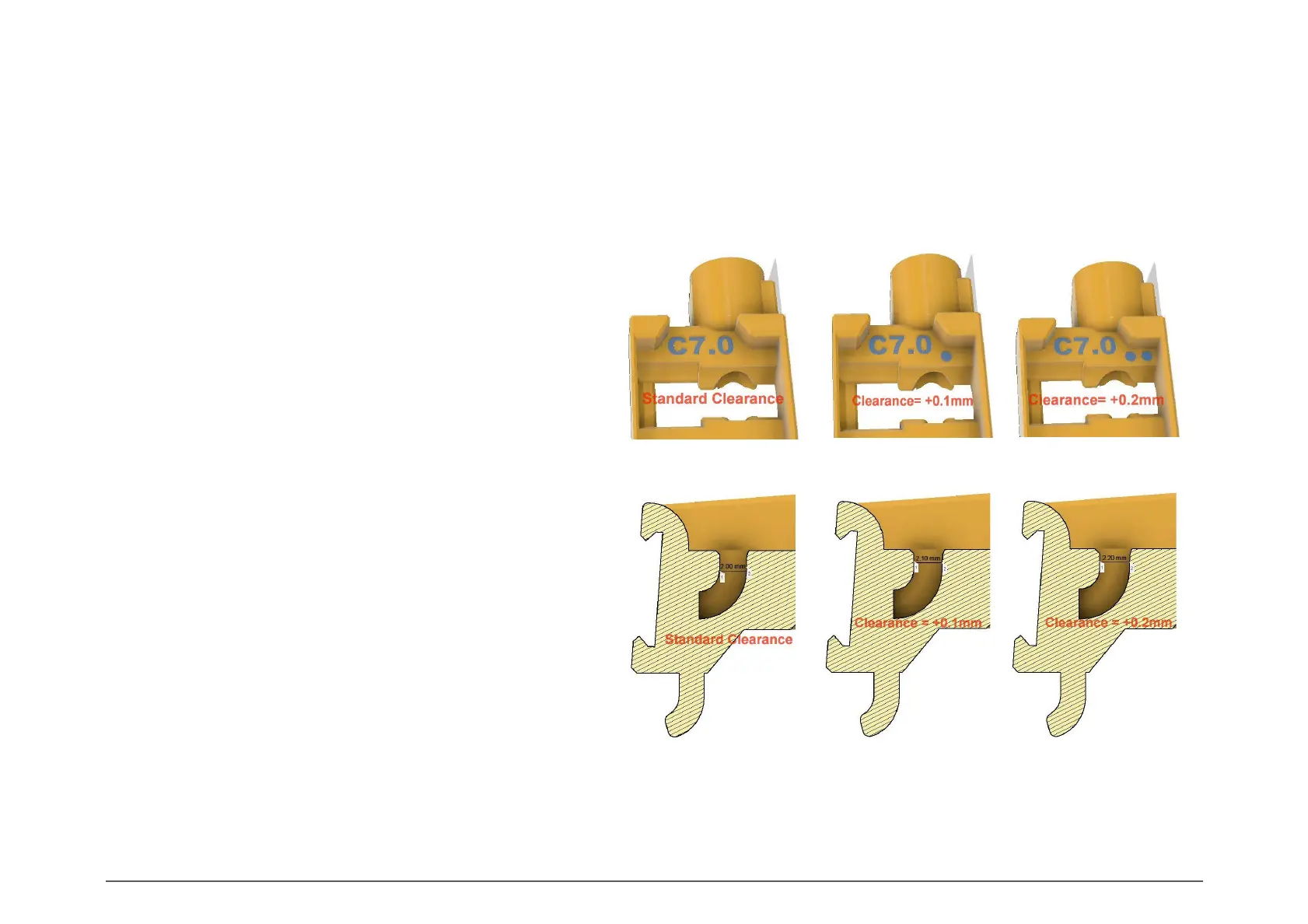

If you have trouble with the fitment process and
can’t get the Tophat to lock in place, there are two
alternate Filament_Path parts provided with
additional clearance built in (+0.1mm & +0.2mm).
These can be found in the following folder:
ERCF_v2/Stls/Filament_Blocks/Clearance_Options/
TOP HAT CLEARANCE OPTIONS
