CAD version: ERCF V2
6565
FILAMENT BLOCKS

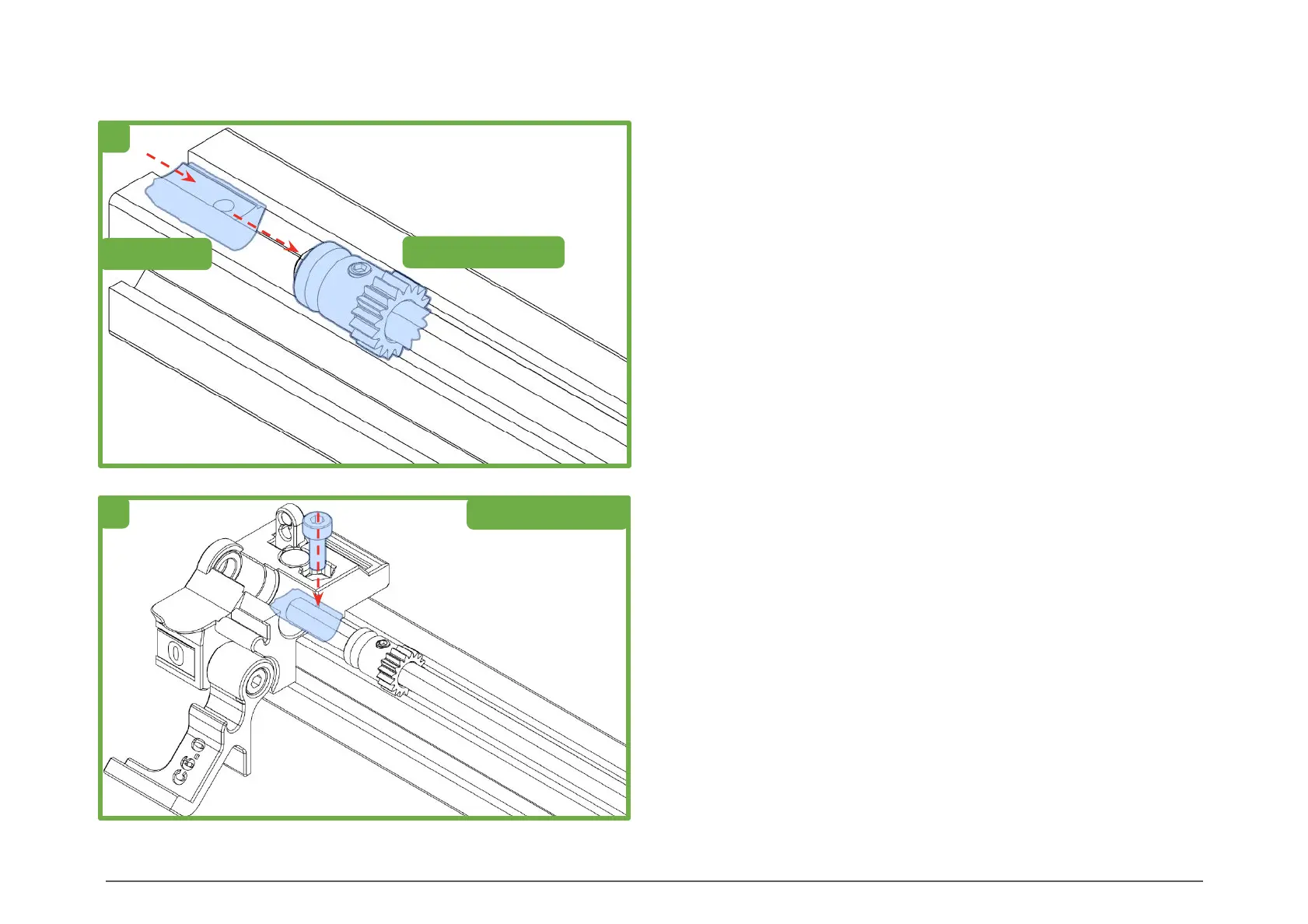

1. PREPARATION
Slide a Bondtech gear onto the D-Cut shaft. Be aware of it’s
orientation, gear side first. Then slide a roll-in T Nut into the top
channel of the 2020 extrusion, with the m3 mounting hole
toward the Gearbox.
Bondtech Gear
FILAMENT BLOCK ARRAY ASSEMBLY
M3 T-Nut
2. FILAMENT BLOCK INSERTION
Attach the Base labelled 0 to the T Nut with an M3x8mm
screw. Leave it loose enough that the Base can still slide on
the 2020.
M3x8mm SHCS
1
2
To Next Page
