CAD version: ERCF V2
6666
FILAMENT BLOCKS
FILAMENT BLOCK ARRAY ASSEMBLY

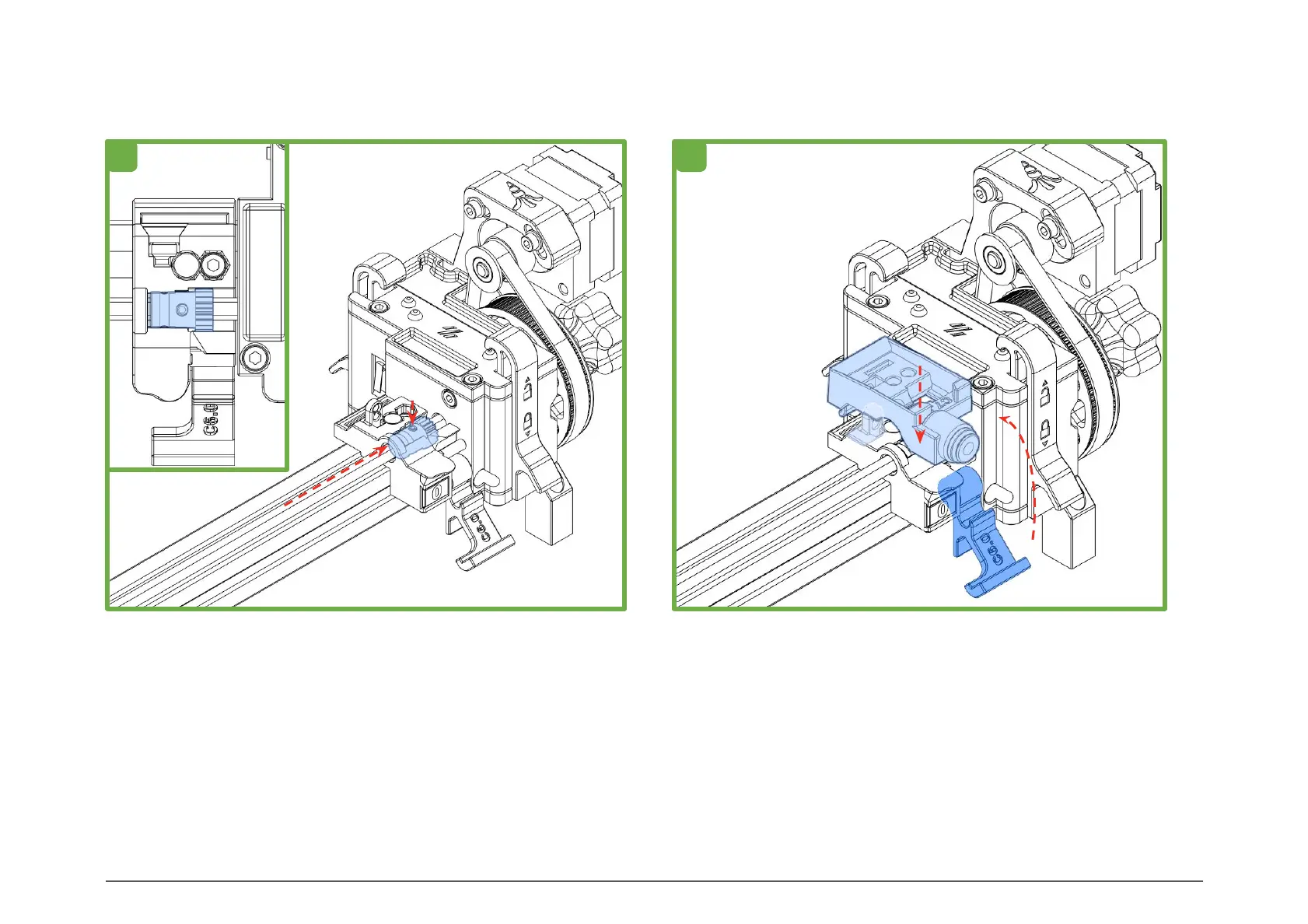

FILAMENT BASE MOUNTING
Push the Bondtech gear and Base to the Gearbox. The Drive
Shaft should not bind on the bearings.
Snug the Bondtech gear’s set screw in a central location. We
will do fine adjustment later, but we need the gear to rotate
smoothly for the array alignment step.
3
FILAMENT PATH MOUNTING
Push the Filament_Path labelled 0 straight down onto the
Base. It should seat without much force. Close the Latch.
4
Repeat these 4 steps for all of the Bases and Filament_Paths.
