CAD version: ERCF V2
6767

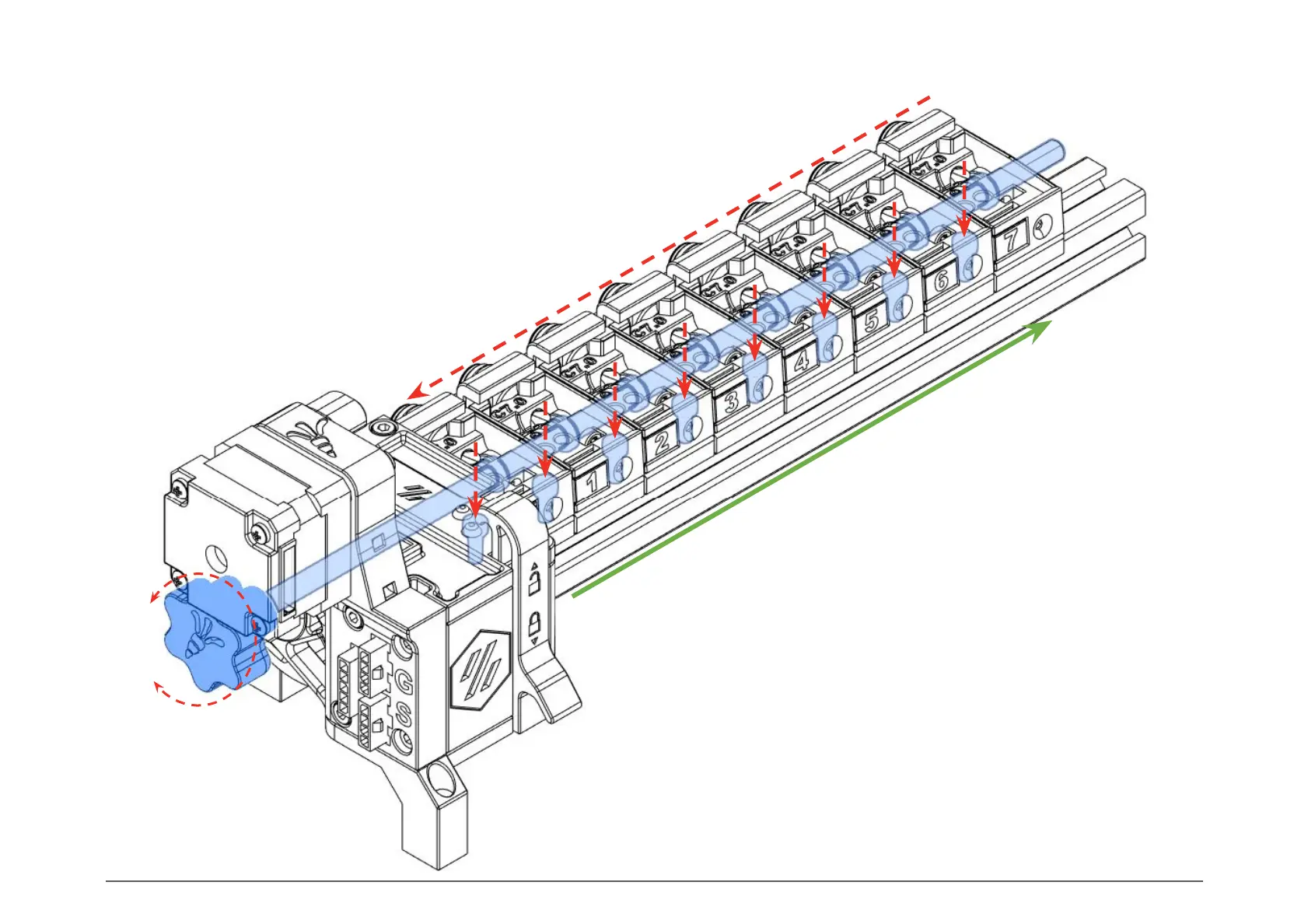

Starting with Filament Block 0, tighten the M3x8mm mounting
screws for each block, so that it is firmly attached to the 2020 and
snug against its’ neighbor.
After you tighten each Filament Block into place, spin the Drive
Shaft to make sure it’s still aligned. If it starts rubbing or doesn’t
spin freely, loosen the M3x8mm screw and re-seat the Filament
Block.
Once all the Filament Blocks are tightened and the Drive Shaft
runs smoothly, you’re done with this step.
FILAMENT BLOCKS
FILAMENT BLOCK ARRAY ALIGNMENT
TIGHTENING FILAMENT BLOCKS
Make sure the Filament Blocks are pushed firmly
up against the Gearbox and each other.
Push Filament Blocks
Tighten in order
