VORON ERCF v2 - Page 75

WWW.VORONDESIGN.COM
CAD version: ERCF V2
7575
END BLOCK
ECAS-M4 Adapter
ECAS ADAPTER

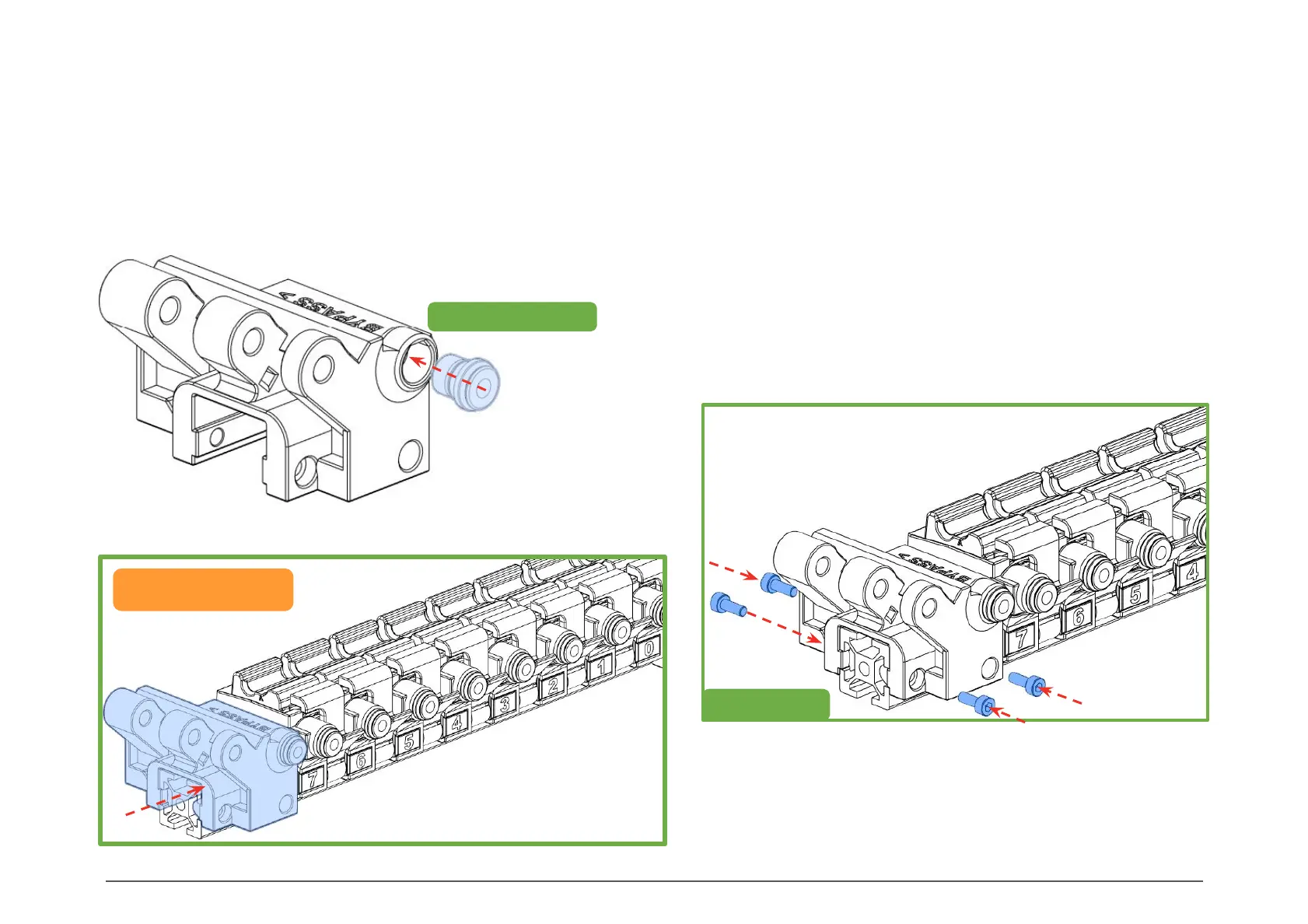

Insert an ECAS-M4 adapter into the End_Bypass Block.
End_Bypass
INSTALL END FILAMENT BLOCK
Slide the End_Bypass Block onto the 2020 and secure with
4 M3x8 SHCS screws.
END FILAMENT BLOCK
M3x8 SHCS
