CAD version: ERCF V2
7676
END BLOCK
M3x8 SHCS

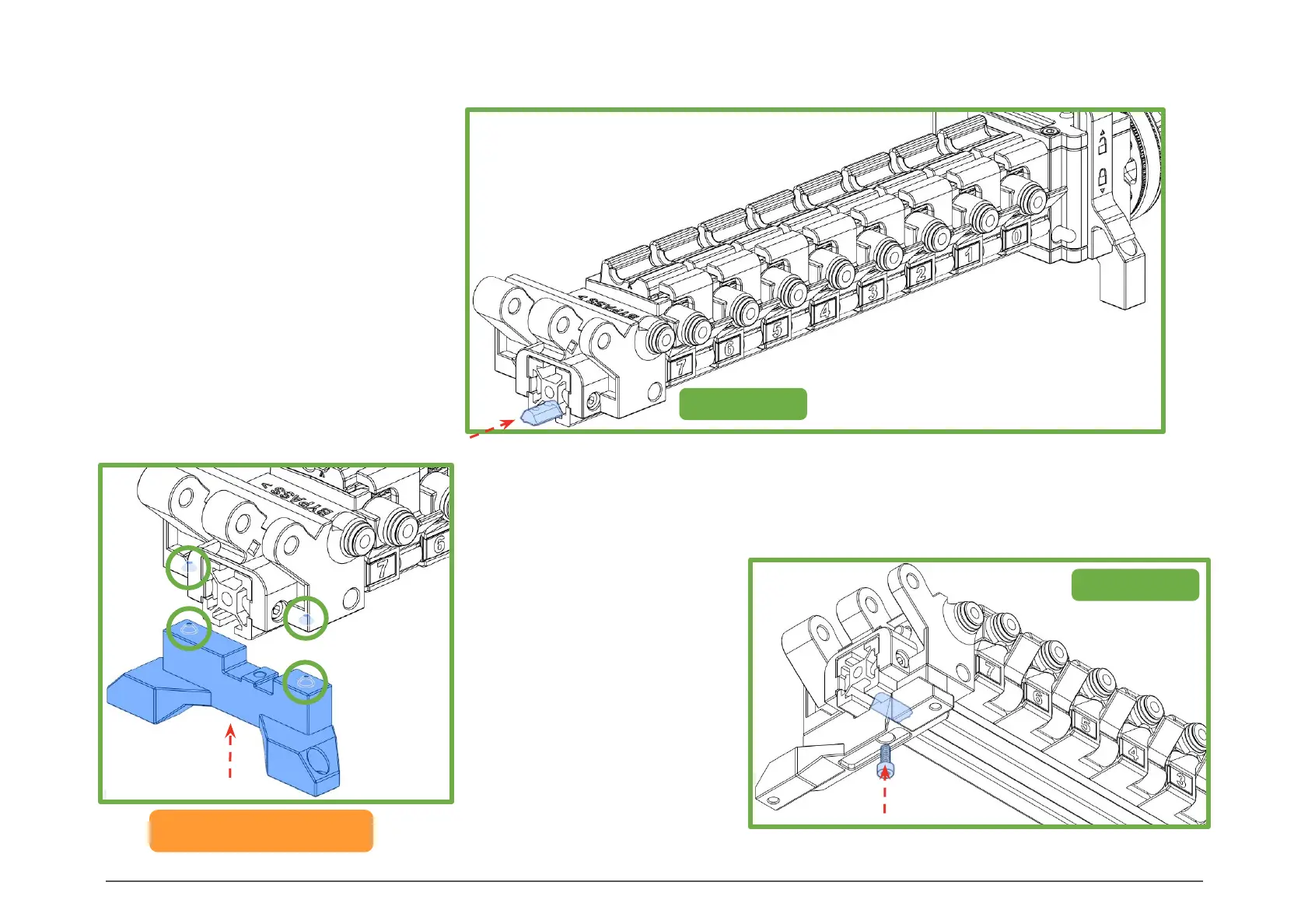

ATTACH THE FOOT
Align End_Bypass_Foot
dimples with the End_Bypass
block and secure it with an
M3x8 SHCS screw.
M3 T Nut
END BLOCK
Insert an M3 T Nut into the bottom
channel of the 2020 extrusion as
shown.
[a]_End_Bypass_Foot
FILAMENT BLOCK END FOOT
