VORON ERCF v2 - Encoder Assembly; Encoder Overview and Parts

WWW.VORONDESIGN.COM
CAD version: ERCF V2
SELECTOR : ENCODER
9494
K
L
M
1x [black]_Encoder_Slotted_Wheel.stl
1X Encoder_Left.stl
1x Encoder_Right.stl
1x MR623ZZ Bearing**
1x BMG 3x20mm Stainless Rod
1x Binky PCB
1x BMG Idler Gear (without set screw)
2x BMG Needle Bearings
1x ECAS-M4 Adapter
1x M2x8 or 10mm Self-Tapping Screw
1x M3x8mm SHCS
3x M3x20mm SHCS
3x M3 Threaded Insert
**Or 623ZZ
A
B
C
D
E
F
G
H
I
J
ENCODER SUB-BOM
L
M
K
J
D
E
F
I
H
F
A
B
C

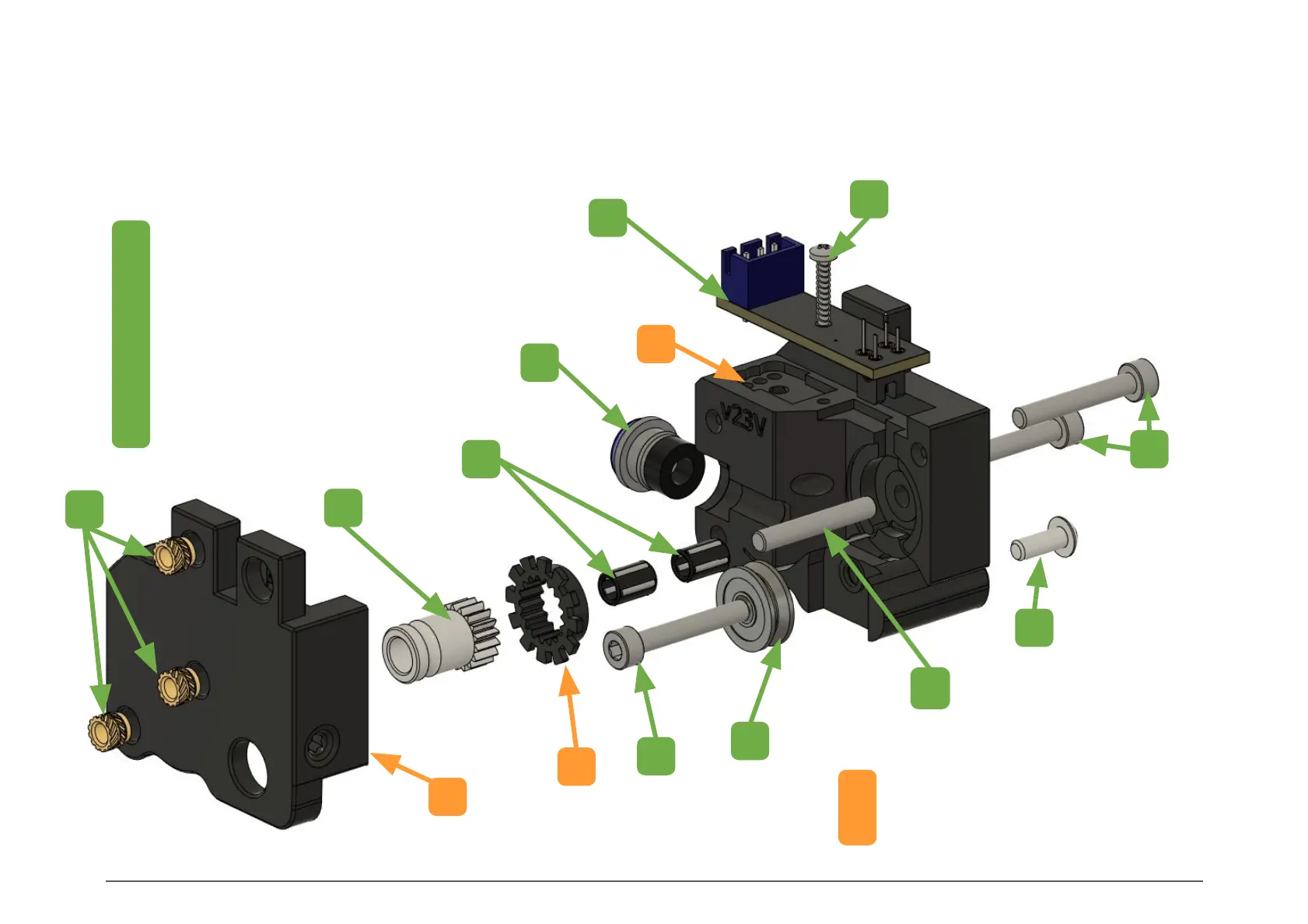

ENCODER EXPLODED VIEW
G
