SELECTOR : ENCODER
M3 Heat Set Inserts
ENCODER PREPARATION
Encoder_Right

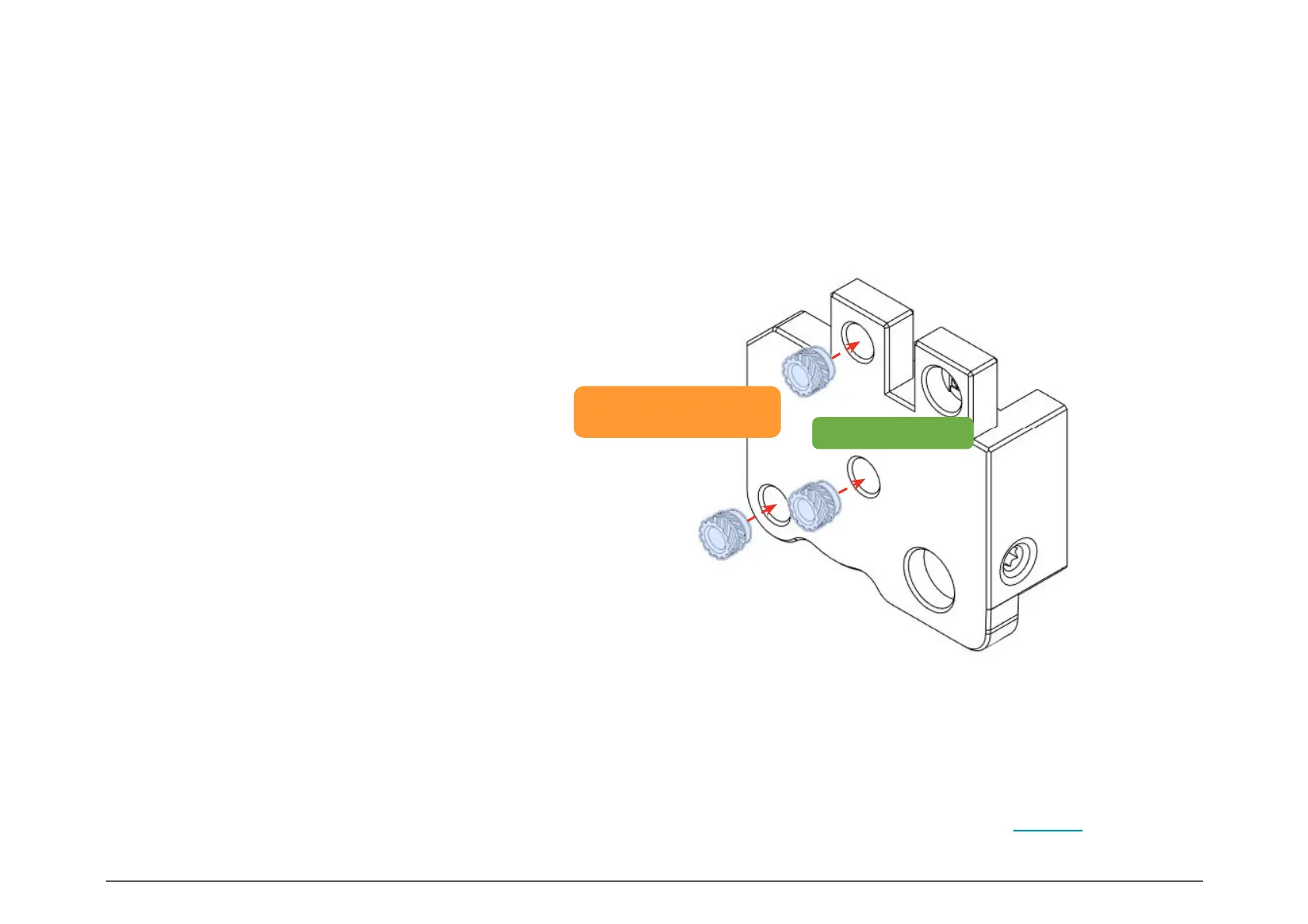

HEAT SET INSERTS
The list of pages with heat set inserts is on Page 15.
V623ZZ VS MR623ZZ BEARINGS
There are two versions of the Encoder:
One using the rarer, but
better-performing V623ZZ bearing. This
is our default, preferred option.
One using the much more easily-sourced
MR623ZZ flat bearing. These files are in
the folder:
ERCF_v2 / Stls / Selector /
Encoder_Flat_Bearing_Option
We will show the V623ZZ version of the
Encoder. Installation is virtually identical
for the MR623ZZ option.
