WWW.VORONDESIGN.COM
CAD version: ERCF V2
9898
SELECTOR : ENCODER
Insert the ECAS Bowden Collet from the back and tighten the
two M3x20 SHSC screws you inserted earlier.
Slide the V623ZZ Filament Bearing in from the bottom and
fasten with a M3x20 SHCS screw.
At this point use a small length of filament to verify everything
runs smoothly and the Encoder_Slotted_Wheel doesn’t rub on
the Encoder body or Binky PCB Optical Sensor.
If you notice any issues, disassemble the Encoder & recheck.
Adjust the position of the Encoder_Slotted_Wheel, being careful
not to damage it or its vanes.
ASSEMBLY

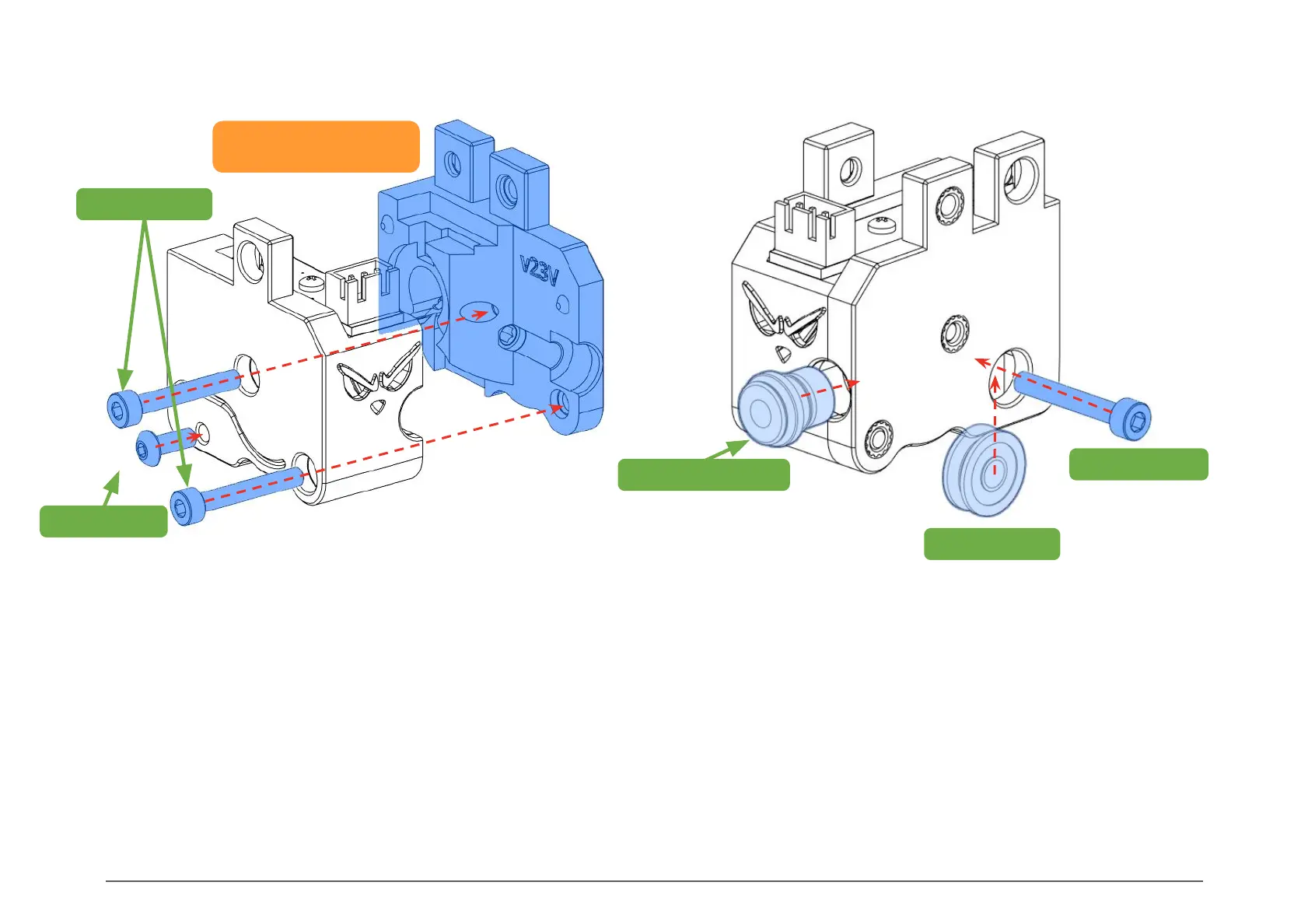

Align the two halves of the encoder and press them together.
Attach them loosely with two M3x20 SHCS screws.
Screw and tap the M3x8 SHCS into the plastic hole on the
Tension Spring as a standoff for the homing endstop
microswitch located in the gear housing.
ENCODER ASSEMBLY
ECAS-M4 Adapter
M3x20 SHCS
M3x8 BHCS
M3x20 SHCS
V623ZZ
Encoder_Right
To Next Page
