WWW.VORONDESIGN.COM
CAD version: ERCF V2
9999
SELECTOR
M3x20 SHCS
M3x20 SHCS

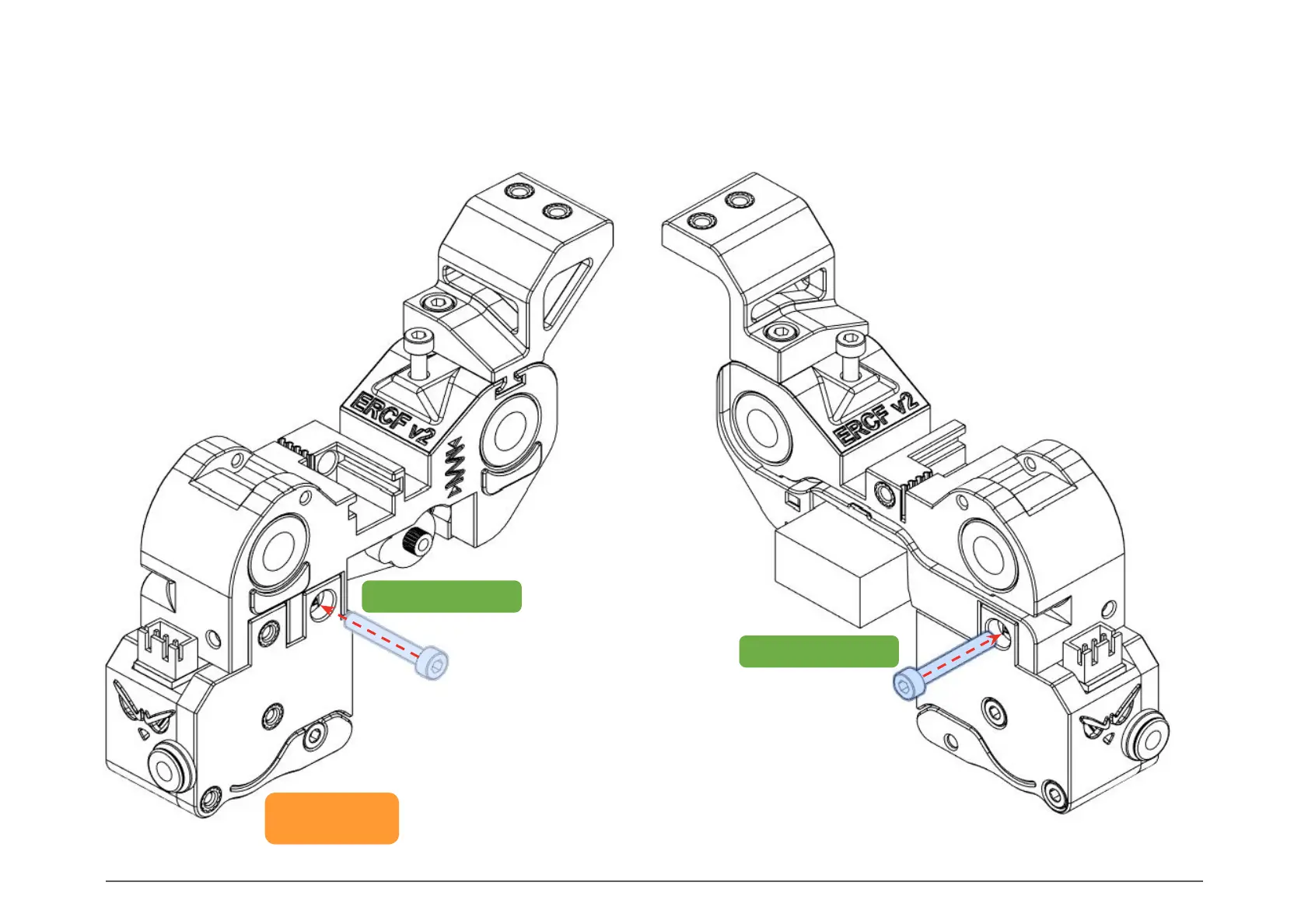

ENCODER INSTALLATION
Remove the M3x20 SHCS that you inserted on
page 91 to hold the servo mount. Then secure the
Encoder to the Selector_Cart with two M3x20
SHCS screws.
Encoder
ENCODER INSTALLATION
