IR610 high performance vector control frequency inverter user manual Chapter3 Product appearance and wiring
- 15-

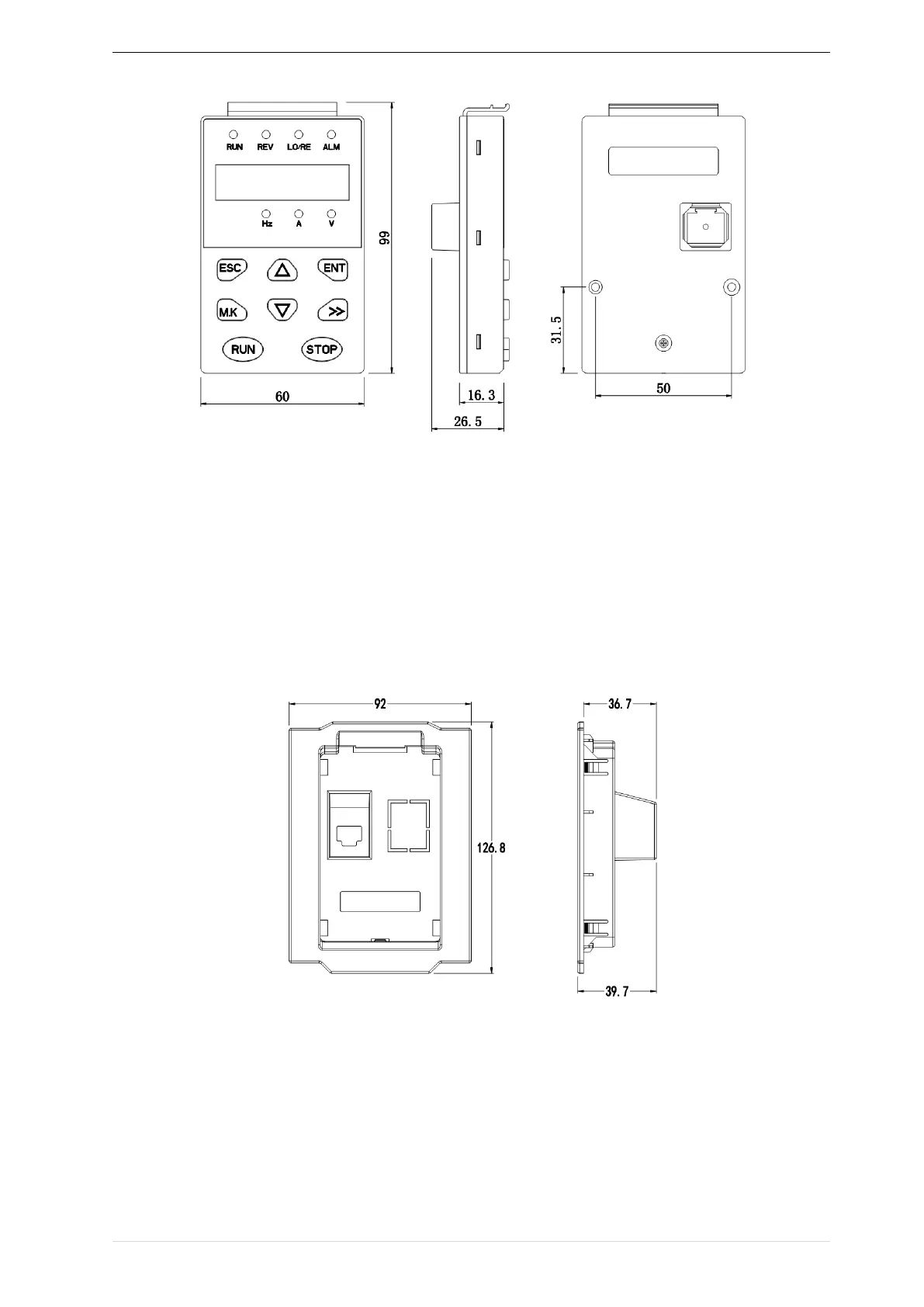

Diagram 3-2 Keypad dimension
If you want to mount keyboard on control cabinet (to prevent the keypad from protruding toward the outside of the
control cabinet), use a keypad Bracket. The dimensions of the keypadbracket are shown in Figure 3-2. The
dimensions of the mounting diagram and control cabinet are shown in Figure 3-3.
M3 screw X2 depth 8mm (for
mounting to the control cabinet)
Figure 3-3 Keypad Holder Size (Unit: mm)
