IR610 high performance vector control frequency inverter user manual Chapter3 Product appearance and wiring
- 25-

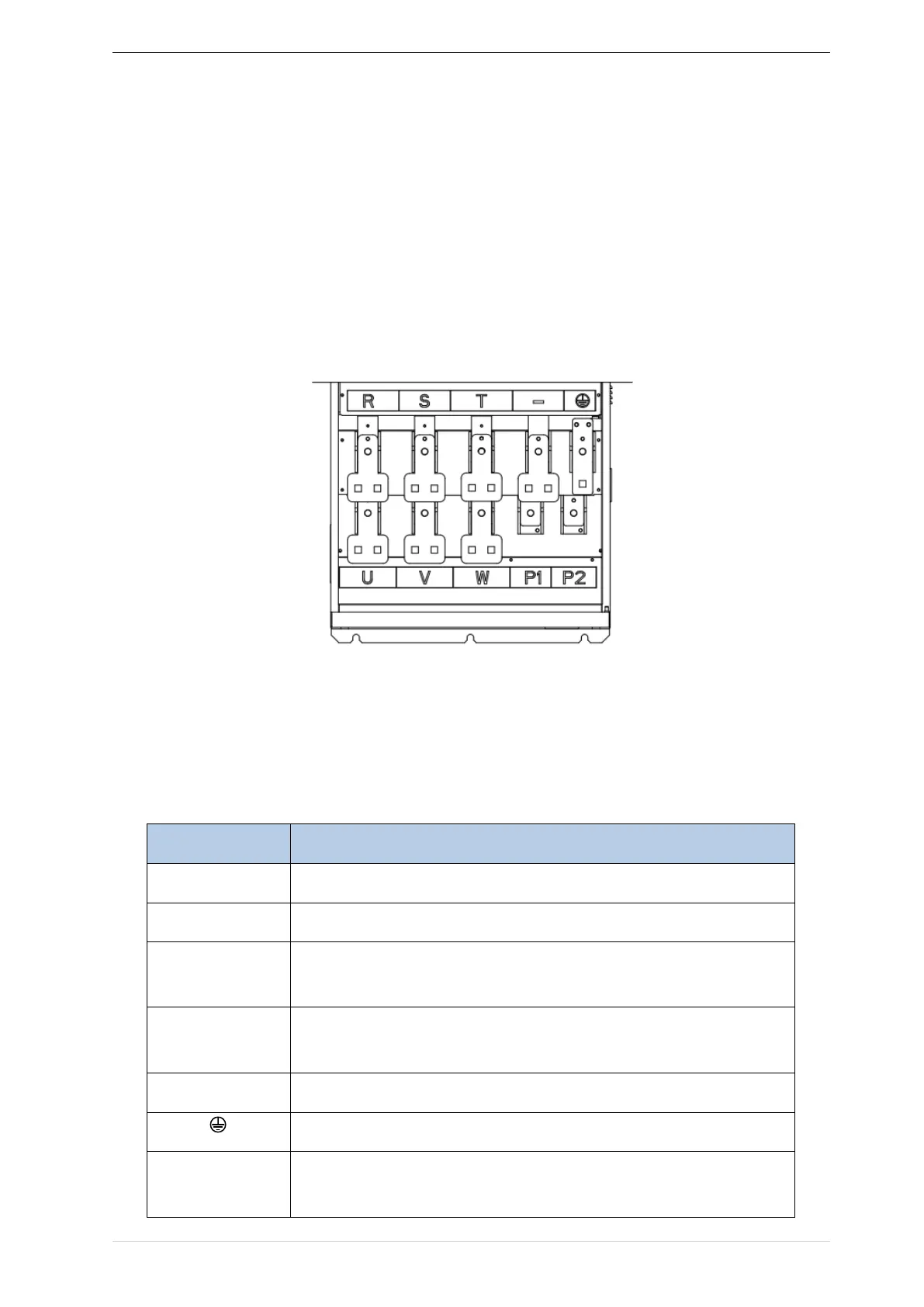

Figure 3-15 110kw-250kw Main Circuit Terminal Blocks
Figure 3-16 280kw-400kw Main Circuit Terminal Blocks
Table 3-17 Function description of the main circuit terminal of the inverter
AC power input terminal, connect three-phase AC power
Inverter AC output terminal, connect three-phase AC motor
The positive and negative terminals of the internal DC bus are connected to the
external brake unit or For common DC bus
P1 and P2 are terminal to Connect DC reactor, short P1 to P2 when DC reactor
is not used (P2 is equivalent to "+" of DC bus)
Braking resistor connection terminal when built-in brake unit
Safety capacitor and varistor grounding selection screw (SIZE A~SIZE C EMC
screw on the left side of the fuselage)
