8.2 Assembly of Plastic Flue

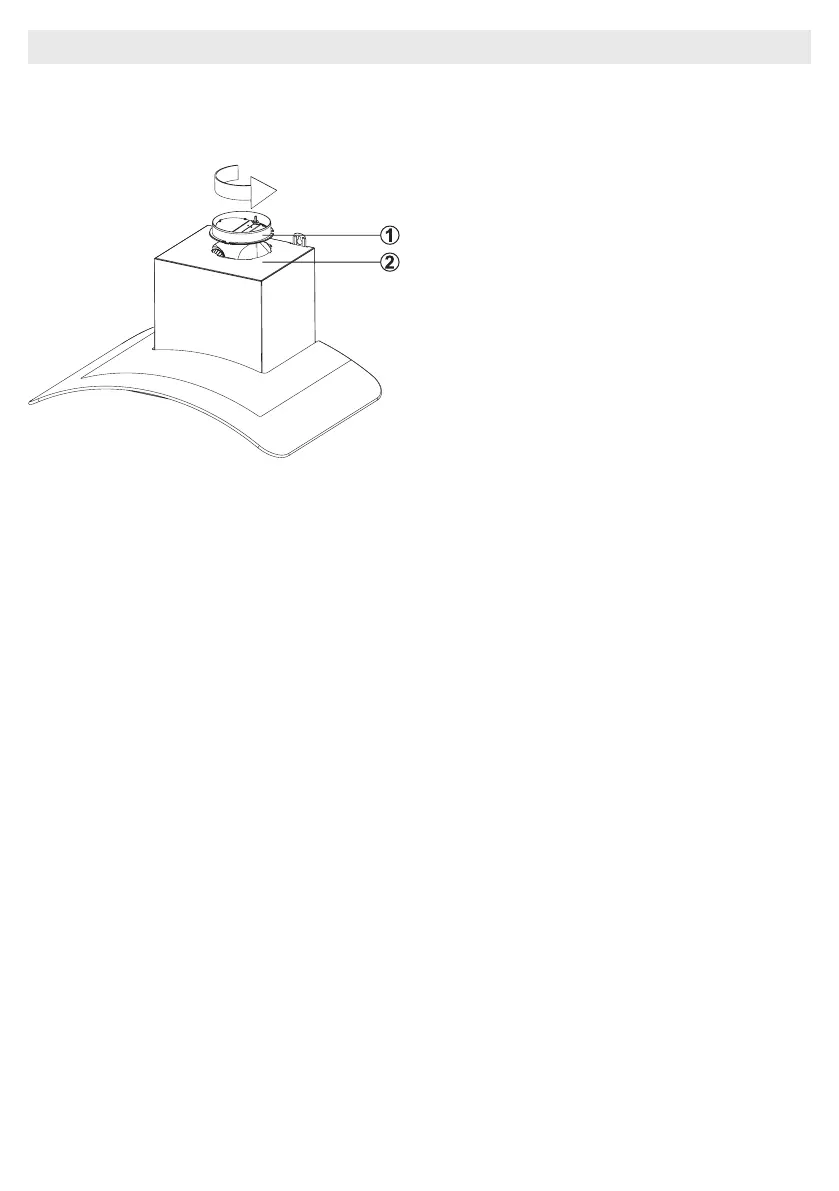

Fig. 11: PLASTIC FLUE CONNECTION
1. 120 mm Flue Adapter
2. Body
■ Attach the plastic ue (1) in the product body
(2), and rotate it in the arrow direction (Fig. 11).
■ Make the air outlet connection of the product
ASSEMBLY OF PLASTİC FLUE
