Appendix B

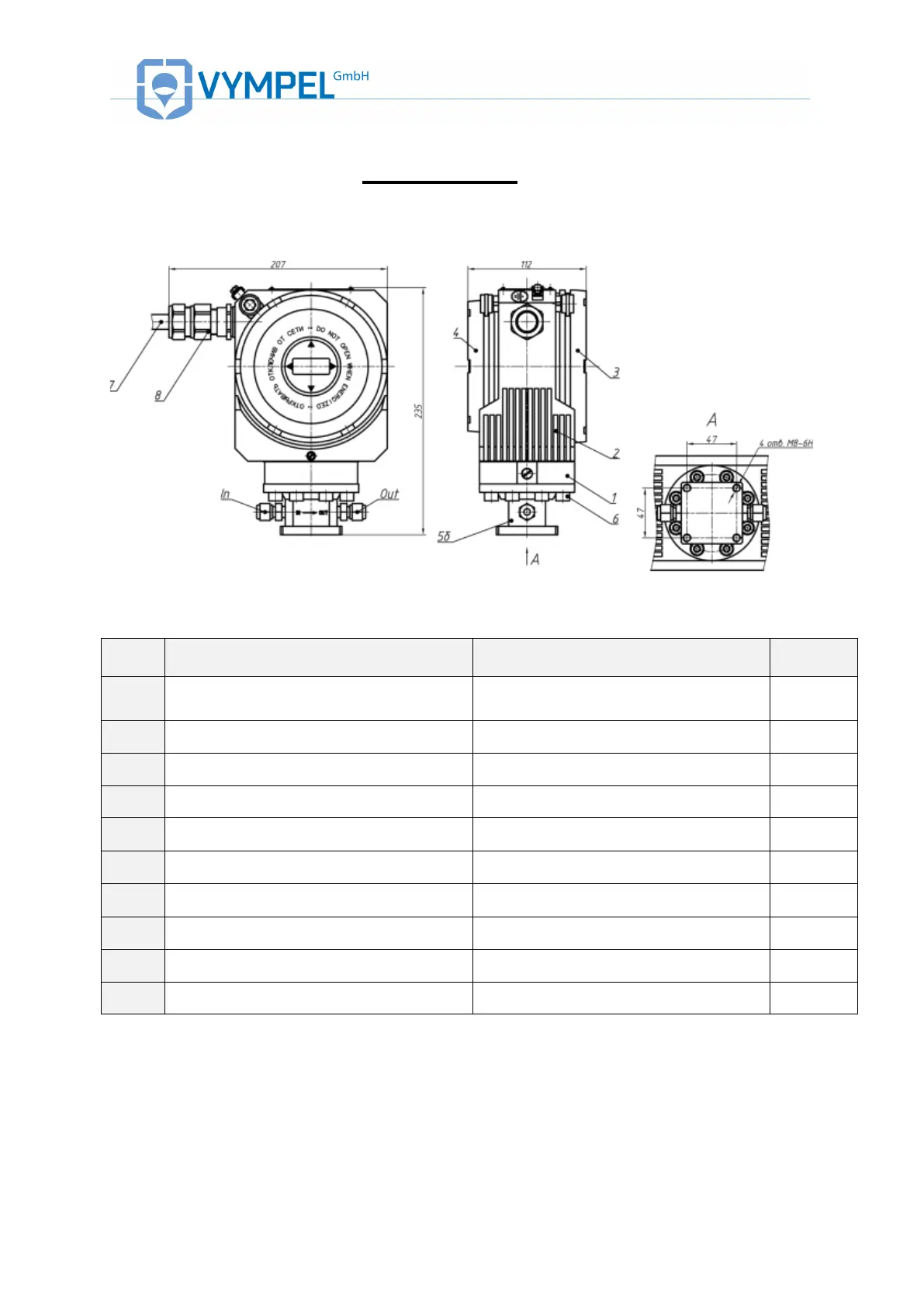

Dimensions and connection sizes of the CP 2M dew point analyzer
Illustration II
Pos.
Designation
Description
Number
1
KRAY5.910.005
Transducer
1
2
KRAY8.034.113
Housing
1
3
KRAY6.172.035
Cover A
1
4
KRAY8.046.172
Cover B
1
5б
KRAY6.457.068
Gas delivery element
1
6
А4-80 DIN912
Bolts М8х25
8
7
Power cable
1
8
20E1FU1RA
Power cable coupling
1
IN
Sample gas inlet
1
OUT
Sample gas outlet
1
