Cong Prima 2M - manual
39
!

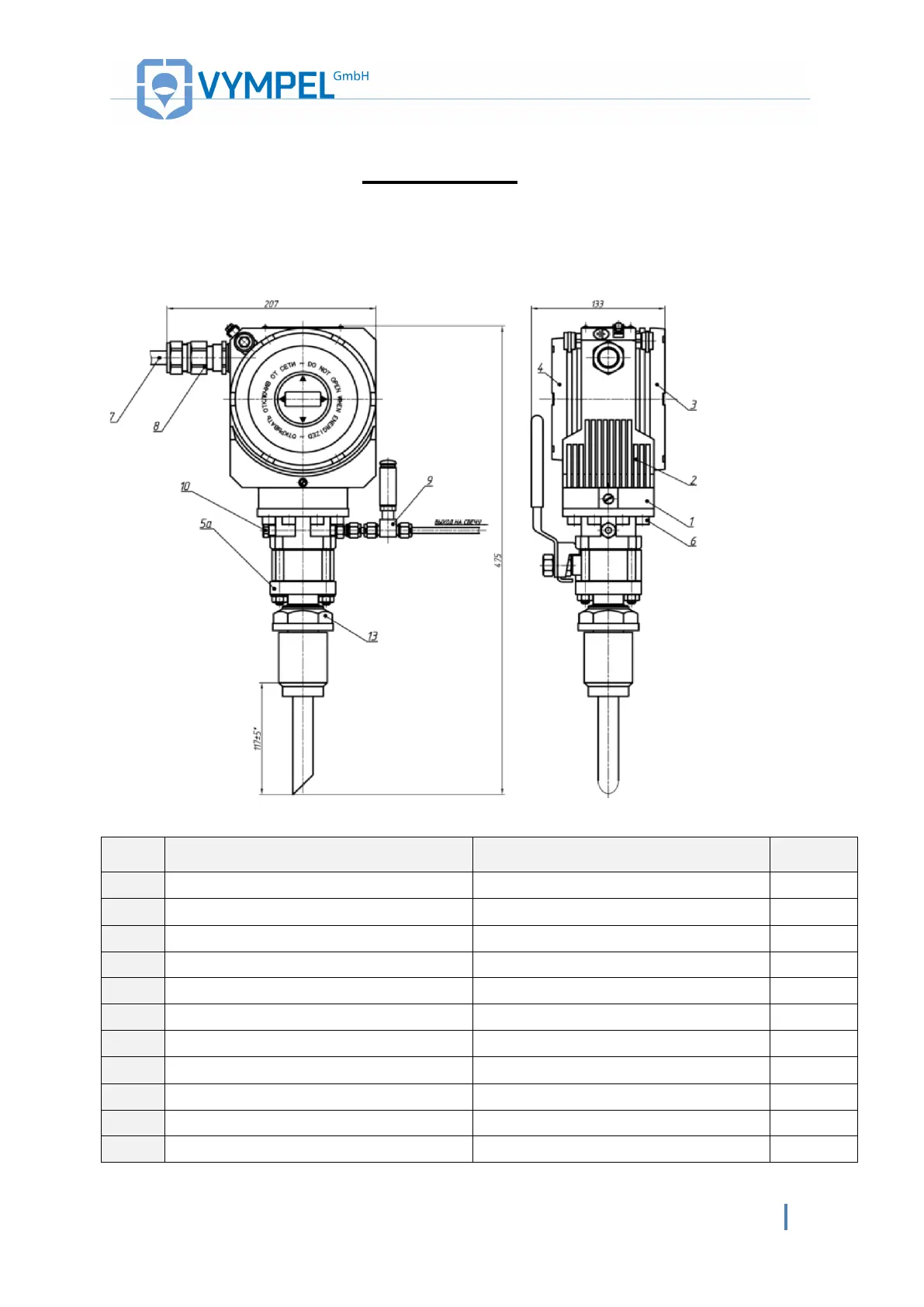

Appendix C
Dimensions and connection sizes of the Cong Prima 2M dew point
analyzer
(Version: KRAY 2.848.015)
Illustration III
Pos.
Designation
Description
Number
1
KRAY5.910.005
Transducer
1
2
KRAY8.034.113
Housing
1
3
KRAY6.172.035
Cover A
1
4
KRAY8.046.172
Cover B
1
5а
KRAY6.457.020-01
Gas delivery element
1
6
А4-80 DIN912
Bolts М8х25
8
7
Power cable
1
8
20E1FU1RA
Power cable coupling
1
9
VYMP6.451.001
Shutoff valve
1
10
DMD-2N
Process outlet
1
13
KRAY 8.930.006
Lock nut
1
