Section 8
Appendixes
Page 38

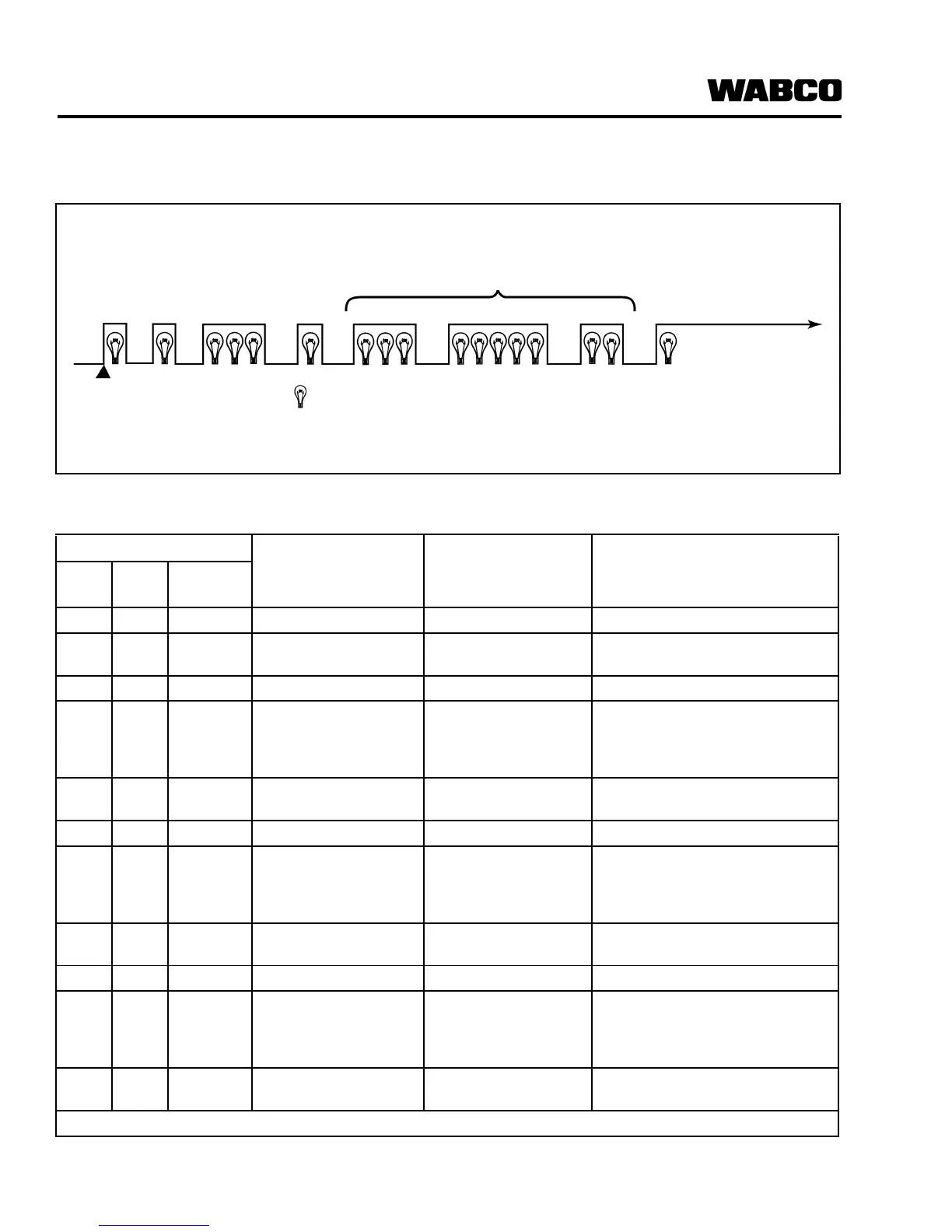

Blink Code Example (4S/2M Configuration)
Expert Mode
Table J — Expert Mode Fault Code
Figure 8.1
Blink Code
Component or
Location
Cause or Type
of Fault Solution
1st
Digit
2nd
Digit
3rd
Digit (X)
000 No Faults No action needed.
35X Sensor BU1 Cable Break,
Short Circuit
Check sensor, sensor cable and
cable connection.
37X Sensor BU1 Out of Adjustment Adjust sensor.
310X Sensor BU1 Speed Erratic Check for excessive hub
runout, a sensor gap that is
too wide or damage to the
tooth wheels.
45X Sensor YE1 Cable Break,
Short Circuit
Check sensor, sensor cable and
cable connection.
47X Sensor YE1 Out of Adjustment Adjust sensor.
410X Sensor YE1 Speed Erratic Check for excessive hub
runout, a sensor gap that is too
wide or damage to the
tooth wheels.
55X Sensor BU2 Cable Break,
Short Circuit
Check sensor, sensor cable and
cable connection.
57X Sensor BU2 Out of Adjustment Adjust sensor.
510X Sensor BU2 Speed Erratic Check for excessive hub
runout, a sensor gap that is too
wide or damage to the
tooth wheels.
65X Sensor YE2 Cable Break,
Short Circuit
Check sensor, sensor cable and
cable connection.
X = Number of Fault Occurrences
1002096b
1 S 1 S
OFF
1 S
OFF
1 S
OFF
2.5 S
OFF
2.5 S
OFF
2.5 S
OFF
2.5 S
OFF
2.5 S
1st Digit
3 Flashes = I.D.
= 4S/2M 2nd Digit 3rd Digit
FAULT CODE
Lamp stays ON after all
fault code sequences
have been displayed.
Power ON;
ECU activated
= Light ON S = Second(s)
BLINK CODE 3-5-2 = CUT SENSOR CABLE
To Next Page
