Section 2
System Components
Page 4
Connection Cable for ABS External Valves
앫 Three-wire cable with connector.
앫 Connects the ABS external valve to the ECU.
앫 “Y” cable for use with 4S/3M configurations
also available.
Power Cables
앫 Connects power to the ECU and provides a
connection for the warning lamp.
앫 Available with blunt-end four- or five-wire cable
or four- or five-wire industry standard harness
connector at one end.
앫 Molded connector on opposite end used to
attach cable to ECU.
Diagnostic Cable
앫 Provides for blink code diagnostics and
diagnostics using the MPSI Pro-Link
®
9000
diagnostic tool.
앫 Five-wire cable with over-molded connector to
ECU on one end and SAE J1587 diagnostic
connector over-molded on the other end.
Diagnostic Tool
앫 Sealed switch and lamp that connects to the
SAE J1587 diagnostic connector.
앫 Used to activate blink code diagnostics,
reconfigure the ECU and test the
ECU installation.
앫 Protective dust cap included.
앫 Designed to remain on the trailer at all times.

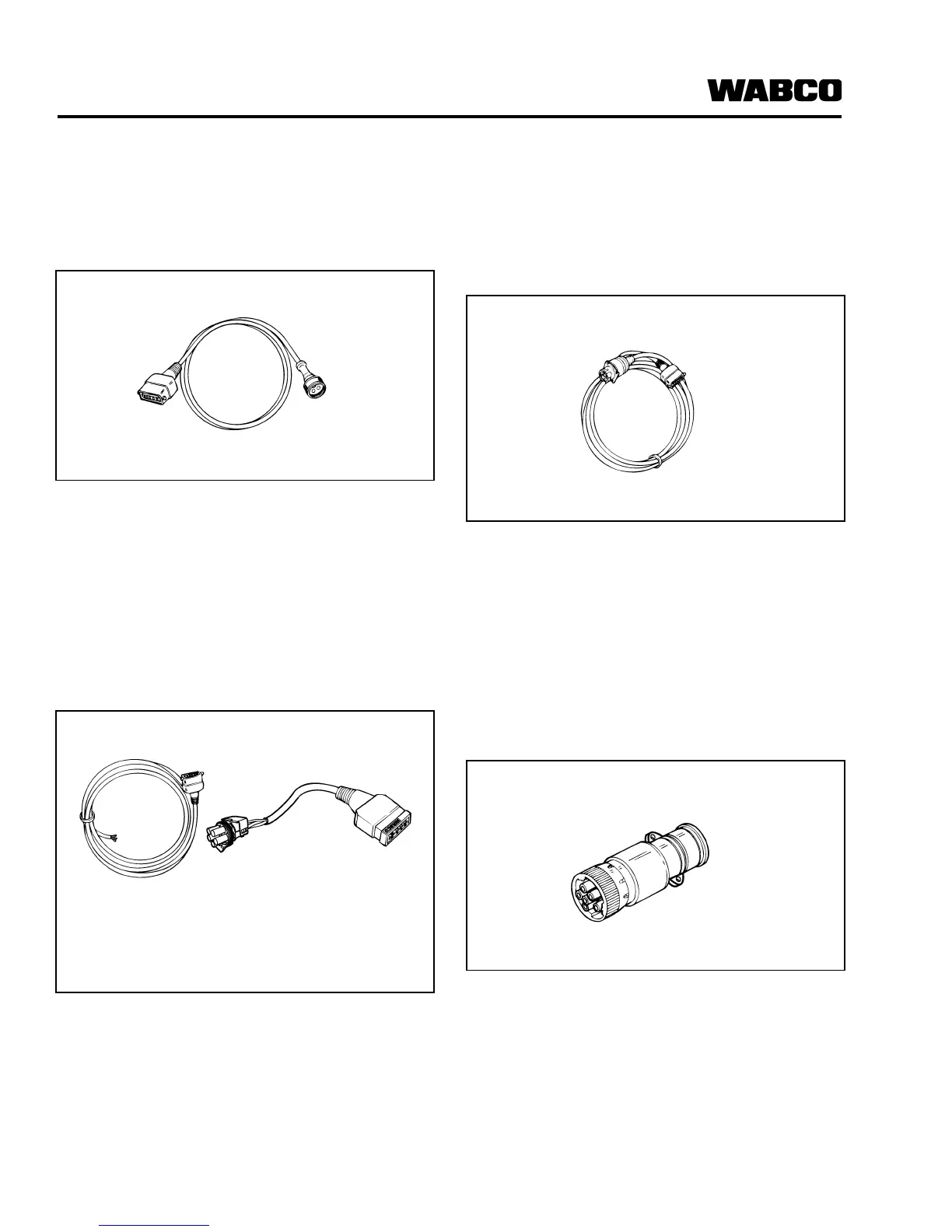

Figure 2.6
Figure 2.7
1 Blunt End
2 Industry Standard
1002078b
BLUNT END
INDUSTRY
STANDARD
Figure 2.8
Figure 2.9
