Page 5
Section 2
System Components

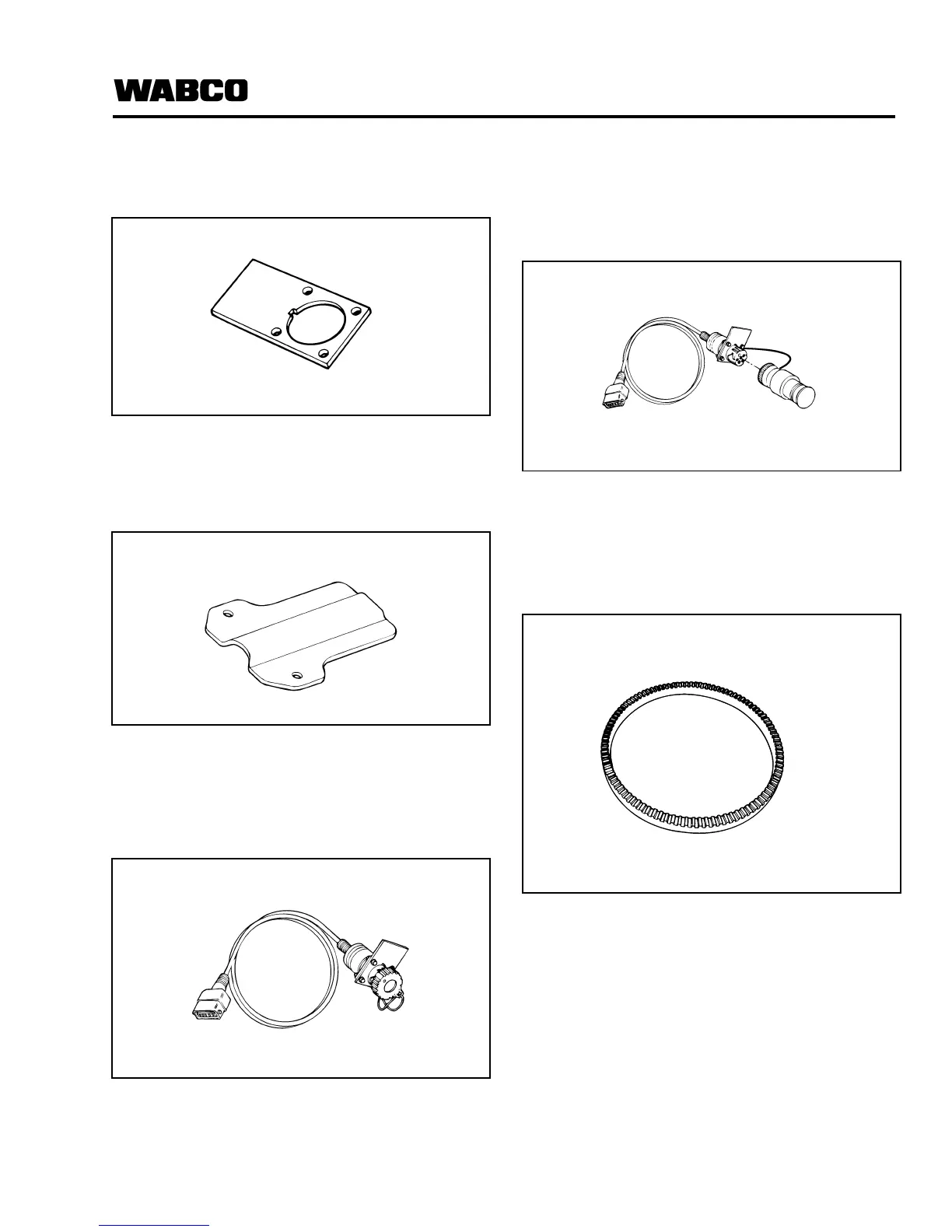

Diagnostic Cable Mounting Bracket
앫 Bracket used to mount the diagnostic cable
assembly to the trailer.
ECU/Valve Assembly Mounting Bracket
앫 Bracket used to remote mount the ECU/Valve
Assembly to the trailer frame.
Diagnostic Cable Assembly with Protective Cap
앫 Diagnostic cable mounted to the bracket
with a protective cap on the SAE J1587
diagnostic connector.
Diagnostic Cable Assembly with Diagnostic Tool
앫 Diagnostic cable mounted to the bracket with a
diagnostic tool connected to the SAE J1587
diagnostic connector.
앫 Protective dust cap included.
Tooth Wheel
앫 A machined ring mounted to the
machined surface on the hub of each
ABS-monitored wheel.
Figure 2.10
Figure 2.11
Figure 2.12
Figure 2.13
Figure 2.14
