Maintenance
Adding hydraulic oil
High pressure hydraulic oil ejection hazard! Removing the
filler plug can cause oil to escape.
Can cause severe injury or death.
• Carefully unscrew the plug to slowly reduce the pressure inside the reservoir.
• Wear protective equipment. If oil contacts the eye flush immediately with clean
water and seek medical treatment.
Do not add hydraulic oil unless the engine is stopped. Otherwise, hydraulic oil will overflow
at the filler opening on the hydraulic oil reservoir.
☞Add as follows:
• Park the machine on level ground
• Retract all hydraulic cylinders
• Stop the engine
• Clean the area around filler inlet B with a cloth
• Open filler inlet B
With the filter insert in place:
• Add hydraulic oil
• Check the hydraulic oil level on sight glass A
• Add if necessary and check again
• Firmly tighten plug B

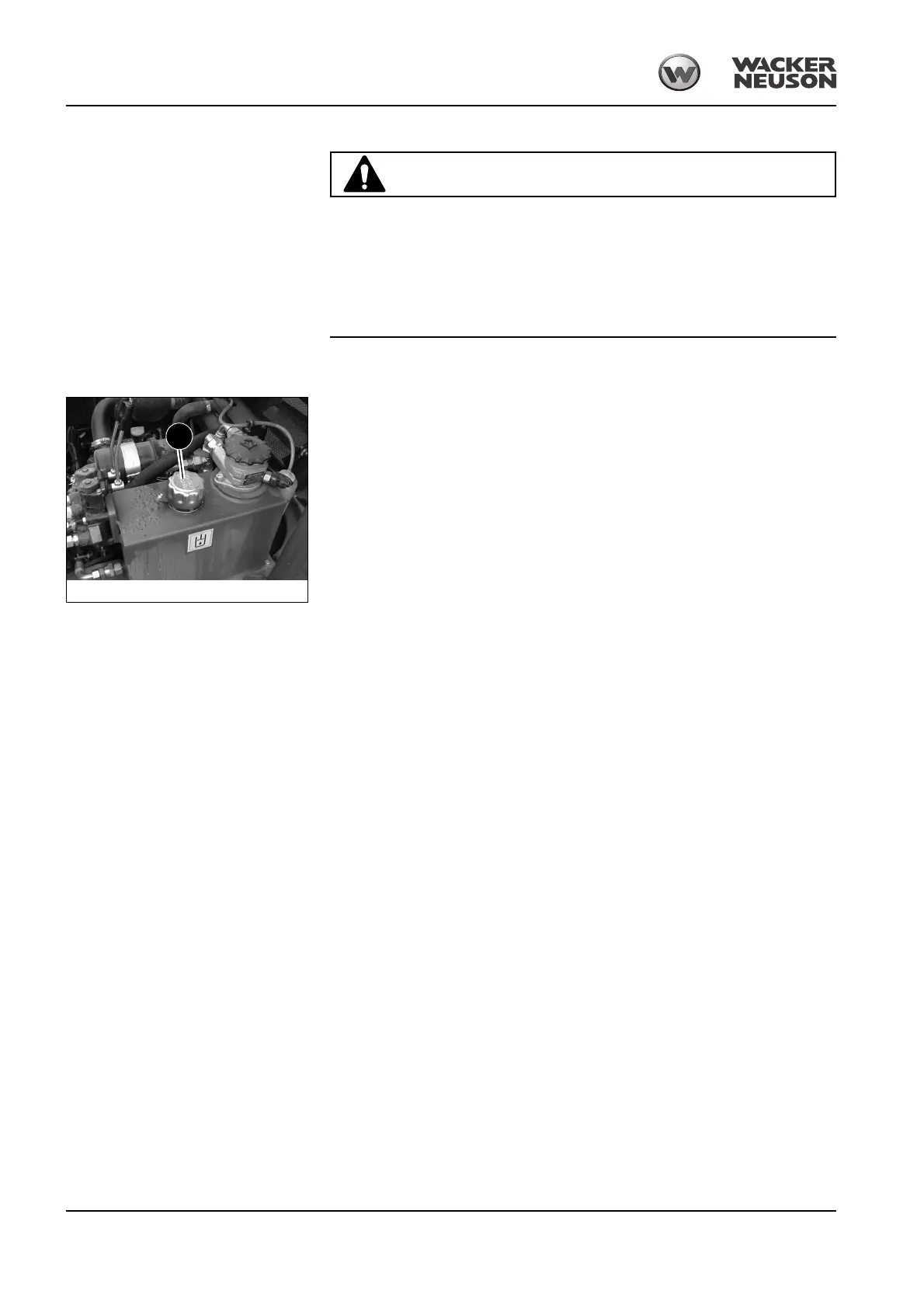

Fig. 98: Hydraulic oil reservoir
B
