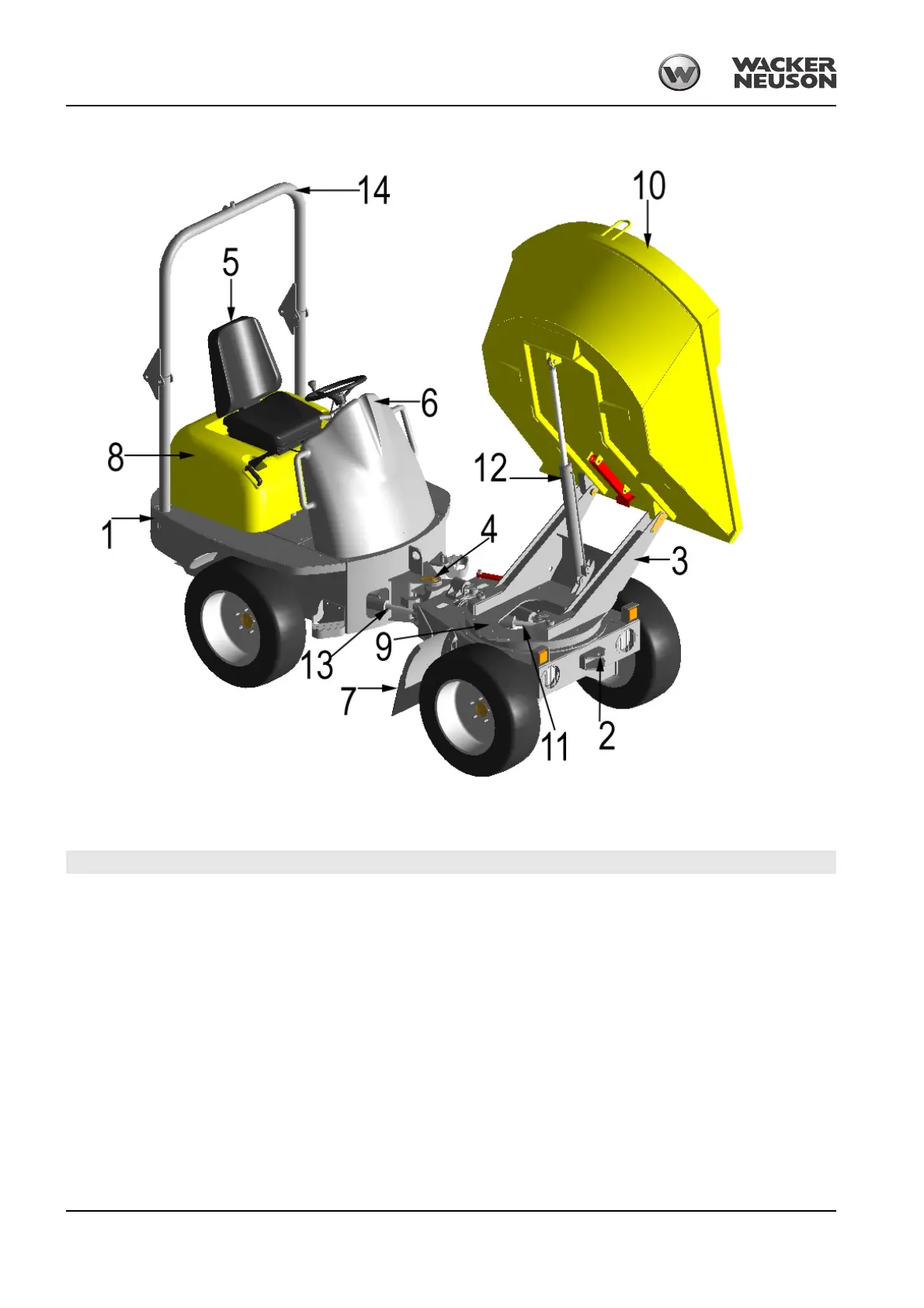

3.1 Description of 2001S components (overview)
Pos.
Designation
1 Rear chassis
2Front chassis
3 Swiveling console
4 Articulated joint
5 Operator seat
6 Control stand
7 Mudguard
8 Engine cover
9 Swivel centring
10 Skip
11 Swiveling cylinder
12 Tilt cylinder
13 Steering cylinder
14 Rollbar
