BA 1001/1501/2001 us – Edition 3.3 * 12001b330.fm 3-37
Operation

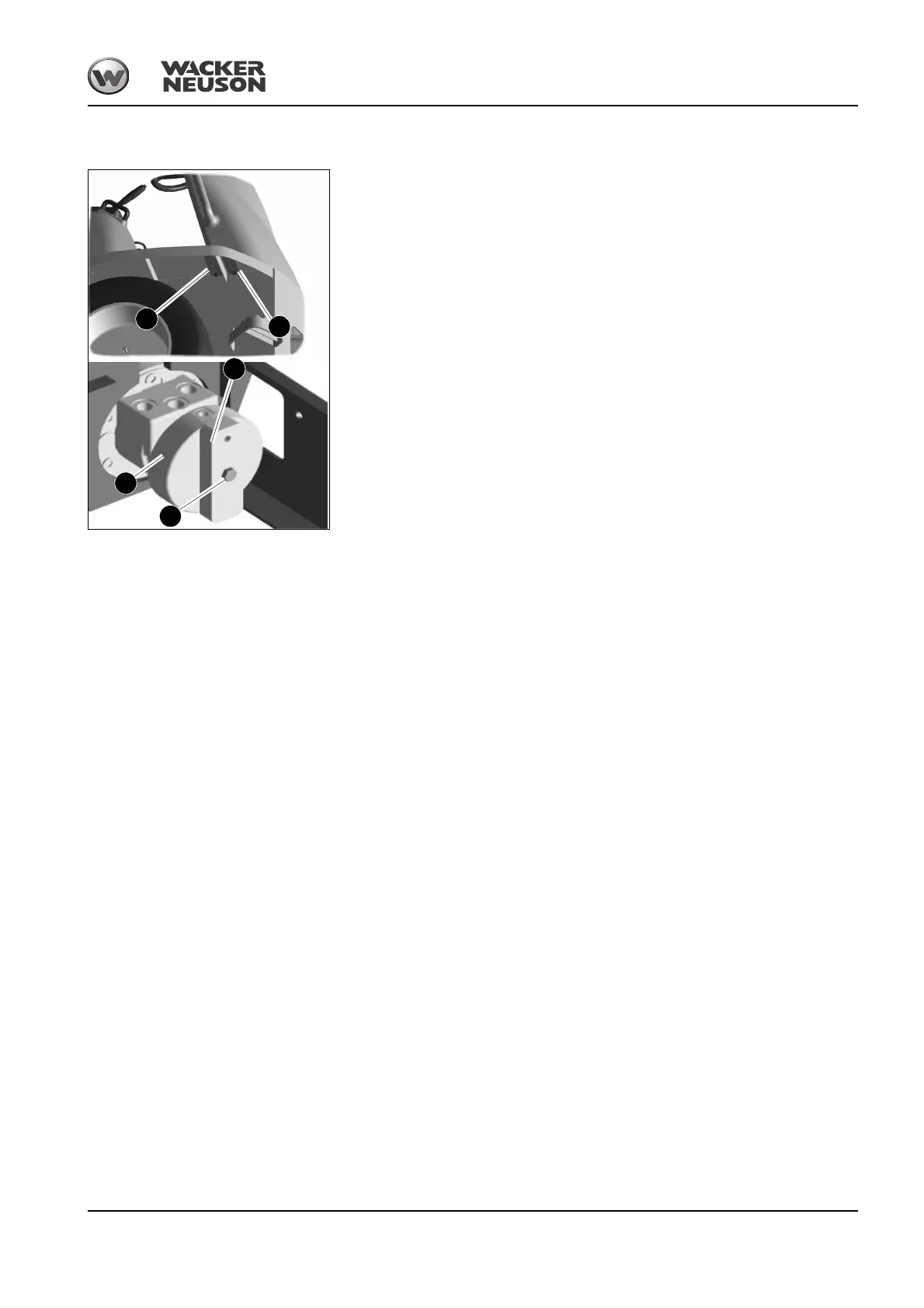

3.26 Releasing the hydraulic parking brake 2001
☞Remove both extraction units (2) installed at the front on the mudguard to release the
hydraulic parking brake (1). Remove hexagon head screw (3) M12x35 (ws 19) to this effect.
☞Remove the plastic plugs (4) in the middle on the face of the wheel motors.
☞Place the extraction unit on the face of the wheel motor and fasten it with screw M12x35.
☞Tighten the screw to 42 Nm (31 ft.lbs) until the wheel turns freely.
3
2
3
2
1
