7 Components and operator's controls
19 100_0102_cp_0002.fm
7.2 ARFU
Item Description Item Description
1 Motor case 7 Screwed-on saddle clamp (optional)
2 Hood 8 Tapered zerk fitting
3 Terminal box 9 Power cable (optional)
4 Cable gland 10 ON/OFF switch (optional)
5 Typenschild 11 Plug (optional)
6 Nameplate 12 Control lamp (optional)

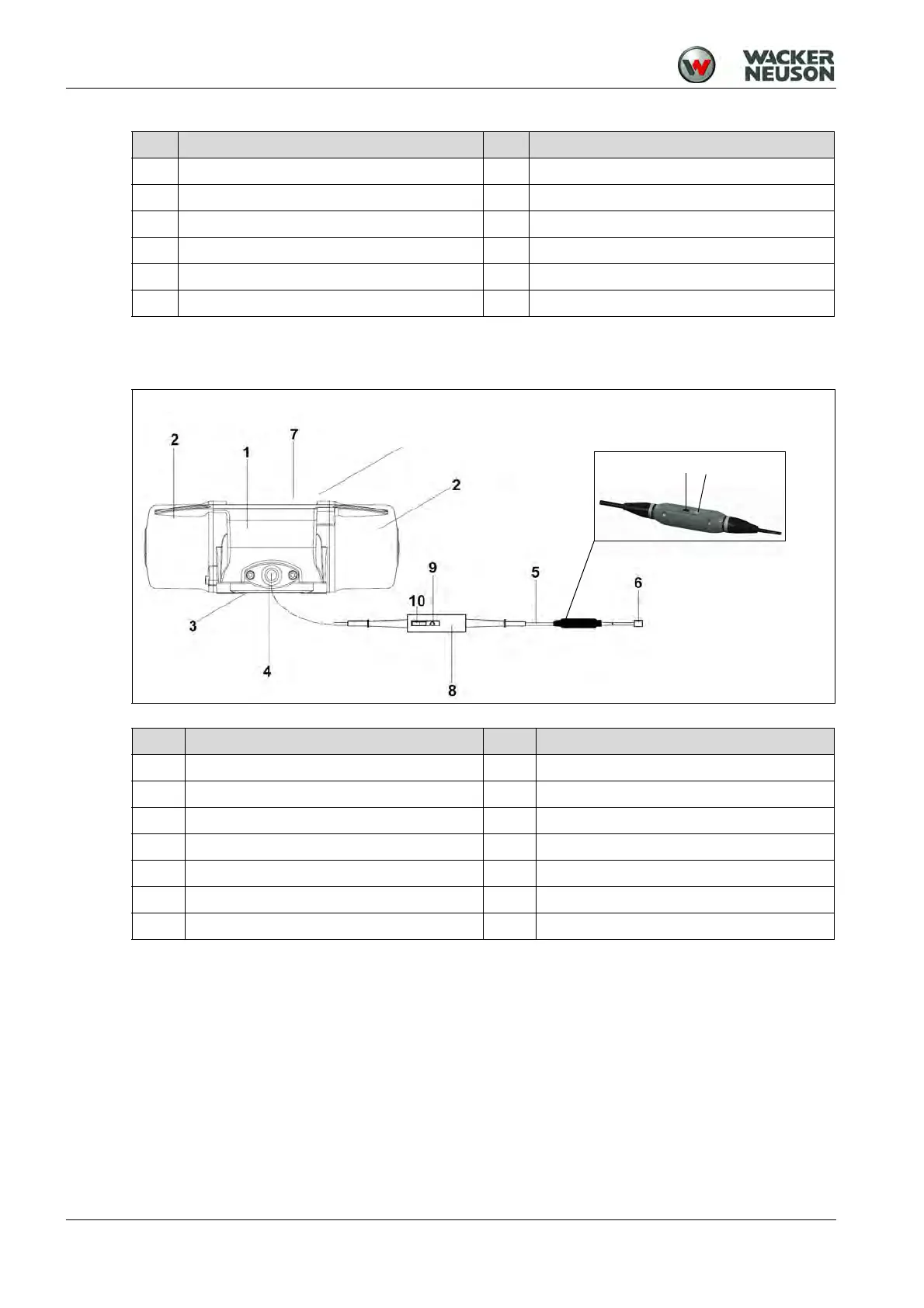

ARFU26
Item Description Item Description
1 Motor case 8 Inverter
2 Hood 9 Control lamp
3 Terminal box 10 ON/OFF switch
4 Cable gland 11 Bodyguard
®
5 Power cable 12 Control lamp
6 Plug 13 Test button
7 Control lamp (optional) 14 Nameplate
14
11
12
13
