10 Use and operation
25 100_0102_op_0003.fm

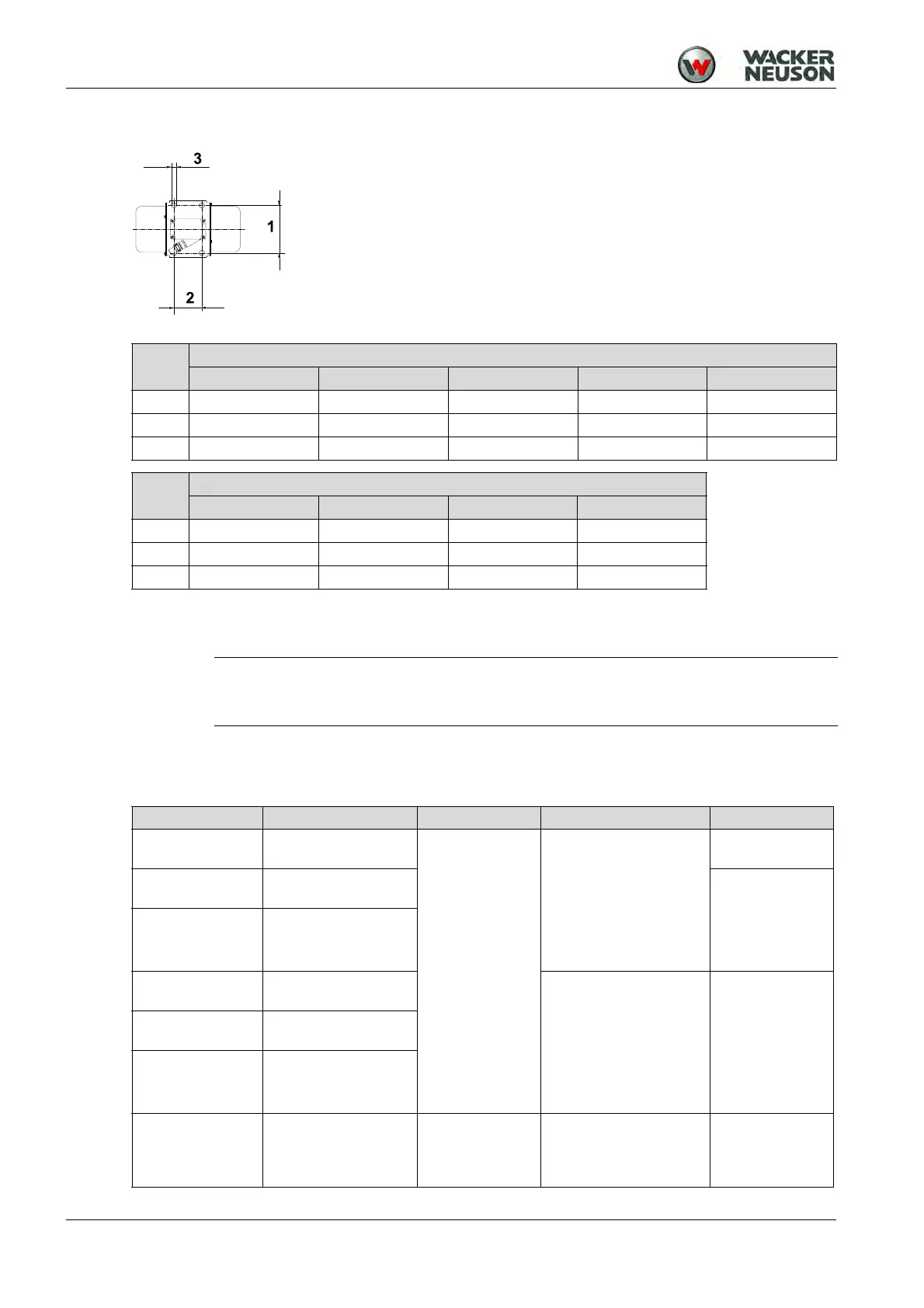

10.3.2 Hole pattern
10.3.3 Fastening material requirements
When mounting the machine on the base plate, only the following fastening material can be used:
1. Remove any dirt around the seating surface.
2. Screw on machine with all screws, washers and nuts.
3. Attach the machine to the formwork.
Machine types
Item AR26 AR34 AR43 AR52 AR53
1 125 mm 120 mm 154 mm 120 mm 154 mm
2 90 mm 120 mm 90 mm 120 mm 90 mm
3 12 mm 18 mm 18 mm 17 mm 16,5 mm
Machine types
Item AR54 AR63 AR64 AR75
1 120 mm 154 mm 120 mm 180 mm
2 120 mm 90 mm 120 mm 95 mm
3 16,5 mm 16,5 mm 16,5 mm 17 mm
NOTE
If only 1 external vibrator is used, both this and the fastening plate can be mounted on the
formwork in any position.
Machine types Fastening material Strength class Standard Note
AR2 Screw/Nut:
M10
8.8 / 8 Screw:
DIN EN ISO 4014,
DIN EN ISO 4017,
DIN EN ISO 4762
Nut:
DIN EN ISO 4032
Washer:
DIN EN ISO 7090
Torque 47 Nm
AR3 Screw/Nut:
M16
Torque 150 Nm
AR4 Screw/Nut:
M16
AR5 Screw/Nut:
M16
Screw:
DIN EN ISO 4014,
DIN EN ISO 4017,
DIN EN ISO 4762
Nut:
DIN EN ISO 4032
Washer:
DIN 7989, DIN 1543
Torque 210 Nm
AR6 Screw/Nut:
M16
AR7 Screw/Nut:
M16
AR52 Screw/Nut:
M 18
4.6 / 10 Screw:
DIN 444
Washer:
DIN 6331
Torque 150 Nm
