Use and operation EH 9
34
7.3.3 Tool holder for tool with hexagonal bolt
Selecting tool position
Adjusting the chisel to the correct turn position that ensures safe working condi-
tions and reduces operator fatigue is especially important when using a flat chis-
el.
Note: The tool can be inserted into the tool holder at 6 different turn positions.
Inserting tool
1. Clean tool end.
2. Swivel out retaining spring.
3. Push tool into the tool holder as far as it will go.
The tool is to be inserted into the tool holder in the position best suited for the
planned work.
4. Return retaining spring to original position.
5. Check to see if the tool is locked by pulling on the tool.
Removing tool
1. Swivel out retaining spring.
2. Remove tool from the tool holder.
3. Return retaining spring to original position.

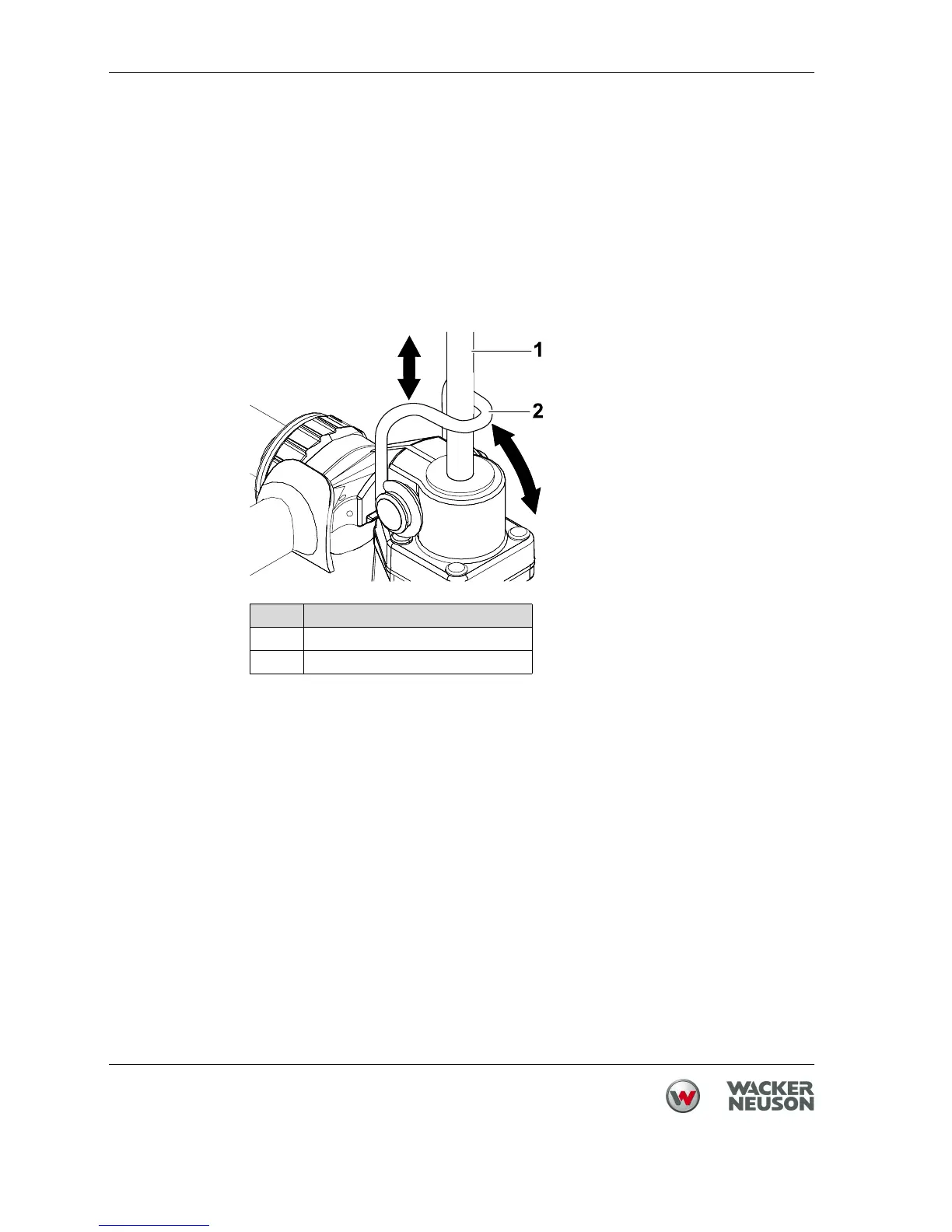

Item Designation
1Tool
2 Retaining spring
