7 Operation
100_0402_op_0003.fm 29

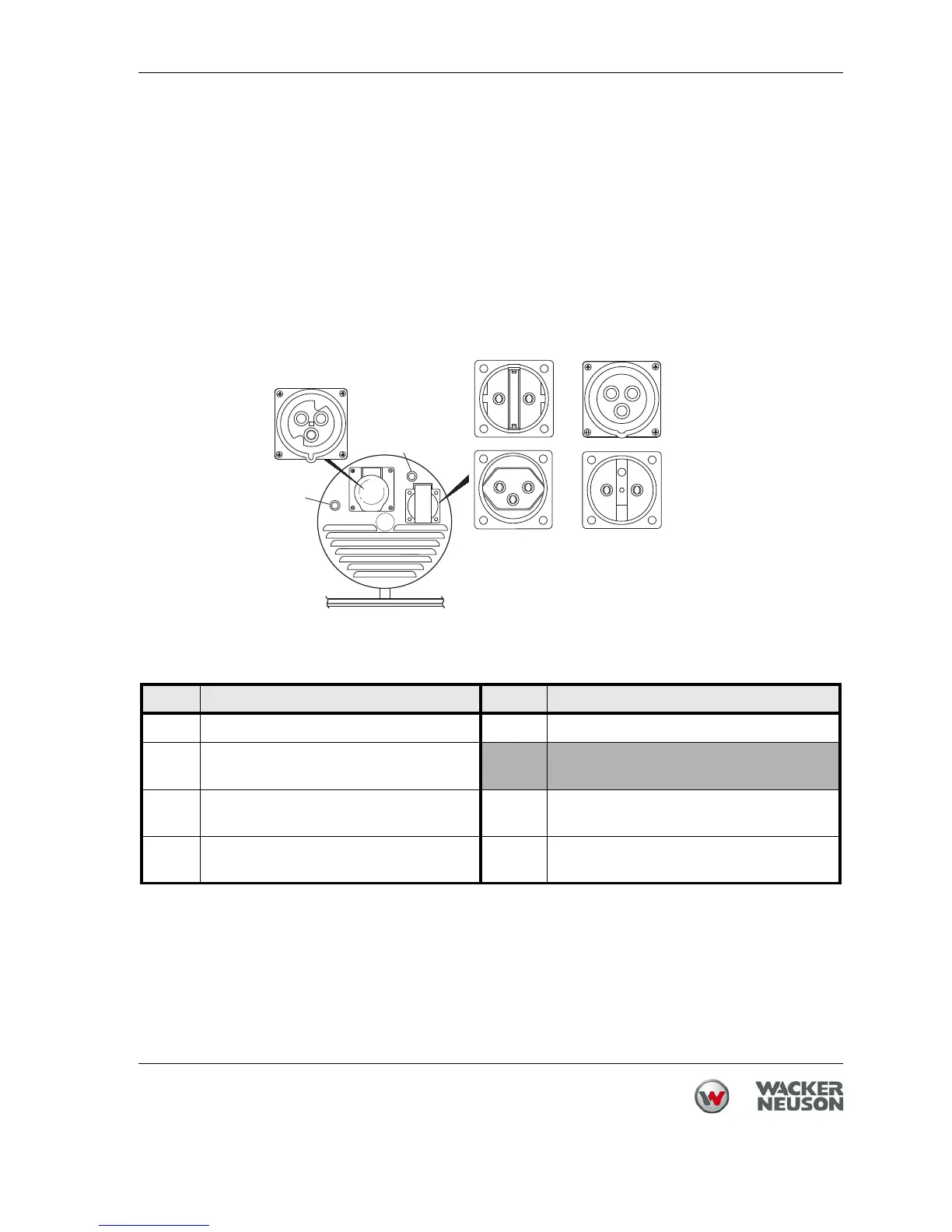

7.8 Control Panel
See blueprints: wc_gr001275 and wc_gr001369
The fuse protects the generator from significant overloads or short circuits. If the
fuse opens, shut down the engine immediately and determine the cause by
starting the engine again. Check the electrical equipment and tools connected
to the generator and make sure that their power requirements do not exceed the
performance limit of the generator or the power limitations of the plug receptacle.
Comment: The protective covers are only missing in the enlarged plug
receptacles for reasons of identification. Never remove the protective cover.
No. Description No. Description
a Main safety cutout - 22A b Main safety cutout - 12A
c Plug receptacle, CEE, IP44
230V, 32A
d1 Plug receptacle, Schuko IP44 (CEE 7)
230 V, 16 A
d2 Plug receptacle, CEE, IP44 2P+E
230 V, 16 A
d3 Plug receptacle (Switzerland)
230 V, 16 A
d4 Plug receptacle (French)
230 V, 16 A
a
c
GV 7000A
b
d1
d2
d3
d4
wc_
