4 Putting into operation

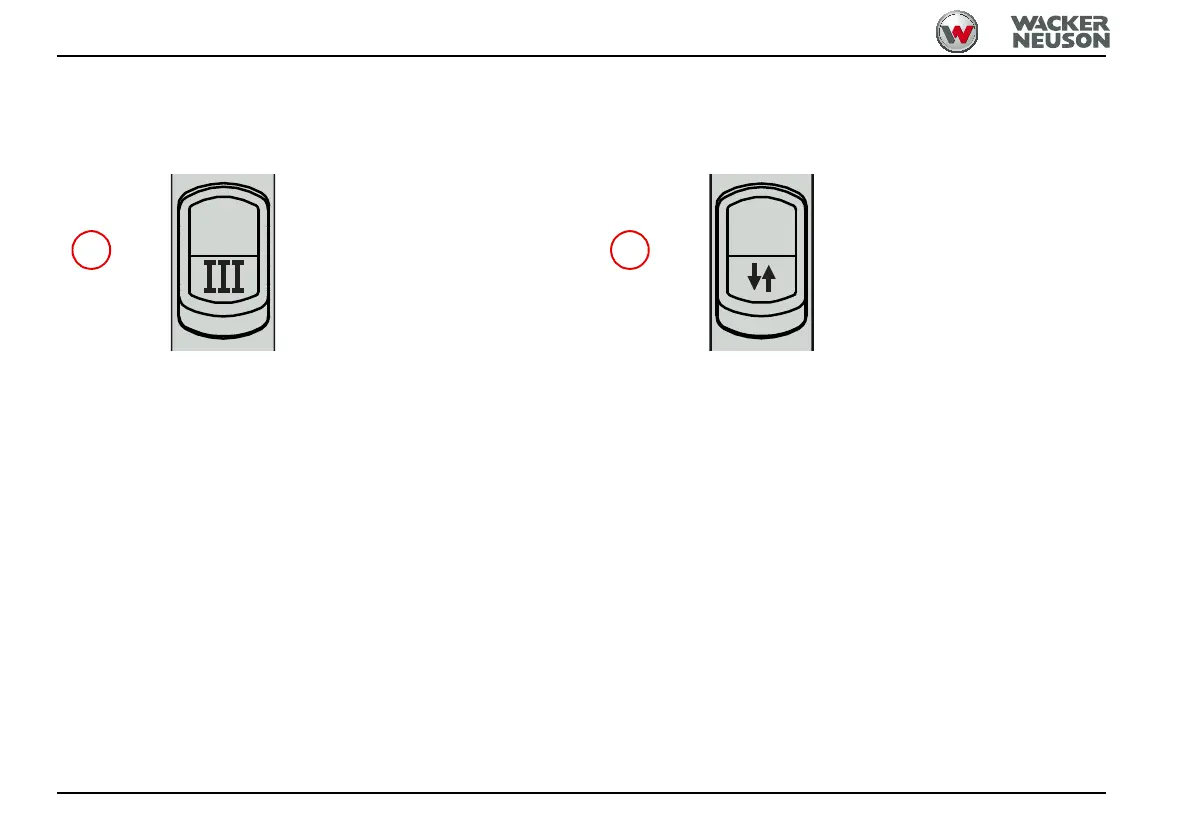

Rocker switch for "High Flow" hydraulic connec-
tions (optional)
The rocker switch 49 is located in Rocker switch panel 4.
The hydraulic “High-Flow” connections on the mast can
be operated with this function. This function is required for
constant-operation attachments requiring a higher oil flow
rate. If the machine is equipped with the "High Flow"
system then the "Detent mechanism for the control lever
for the additional hydraulics" is fitted as standard.
➥
Operating “High Flow” hydraulic connections on
page 5-91
Rocker switch "Three-point receptacle at the rear"
(optional)
Switch 50 is located on the right beside the operator seat,
behind the control lever for the auxiliary hydraulics. The 3-
point mount can be raised and lowered with the switch.
➥
Operating the rear 3-point mount on page 5-95
