5 Operation
Monitoring the stability display
The safe load indicator only works after the charge
indicator light has gone out.

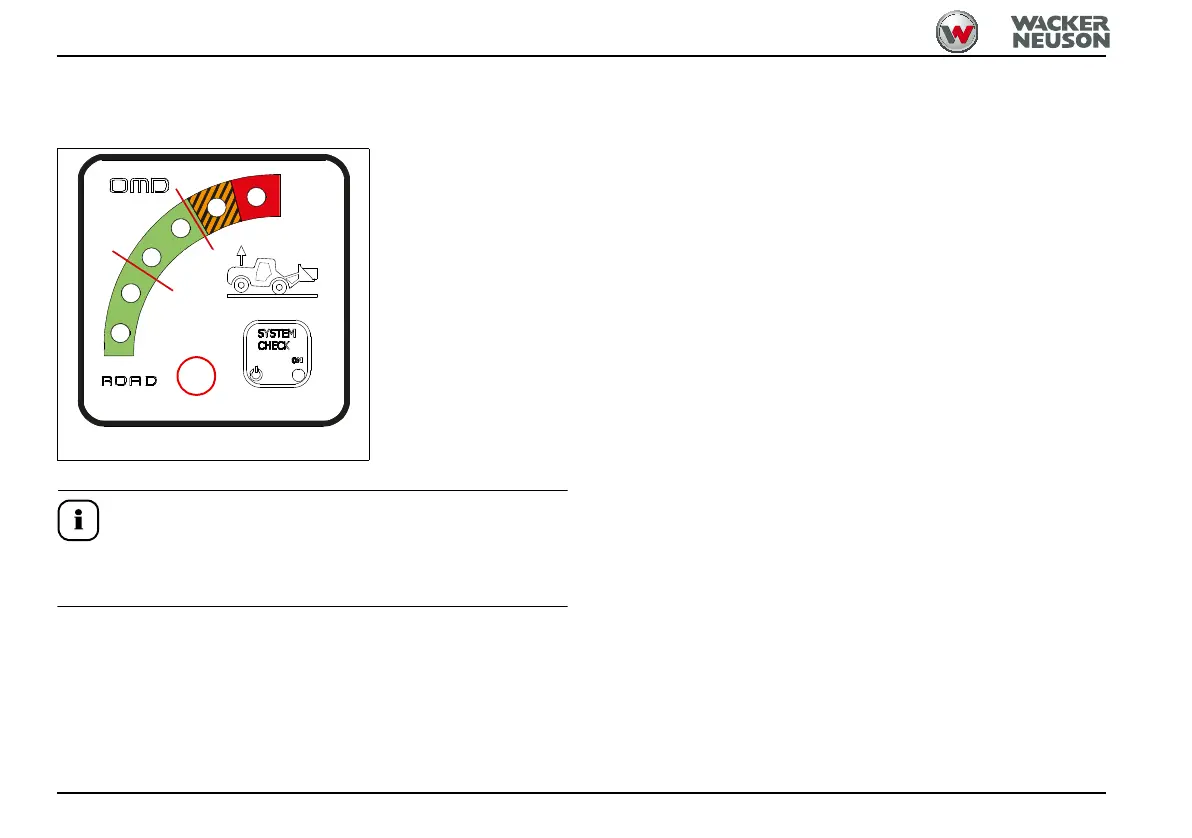

Always pay attention to the stability display 3 at the upper
right in the cabin while working. The display of the safe
load indicator indicates machine stability as a function of
the raised load. The safe load indicator gives visual and
acoustic signals.
1. Green up to 40%: There is no risk of the machine
tipping over, all travel and work movements can be
continued.
• Green up to 85%: There is a slight risk of the machine
tipping over, pay attention to the display of the safe
load indicator for further travel and work movements.
2. Orange: There is an increased risk of the machine
tipping over. Perform further travel and work
movements with caution.
3. Red: There is an imminent risk of the machine tipping
over!
- With an extended boom: the overload protection is
active.
- With the telescopic boom retracted: Immediately
stop the work movement currently being carried out.
Retract the telescopic boom or lower the loader unit.
