Operation 5
BA TH412 * 06/2017 * 4512_5-9_Arbeitshydraulik_en.fm
5-35

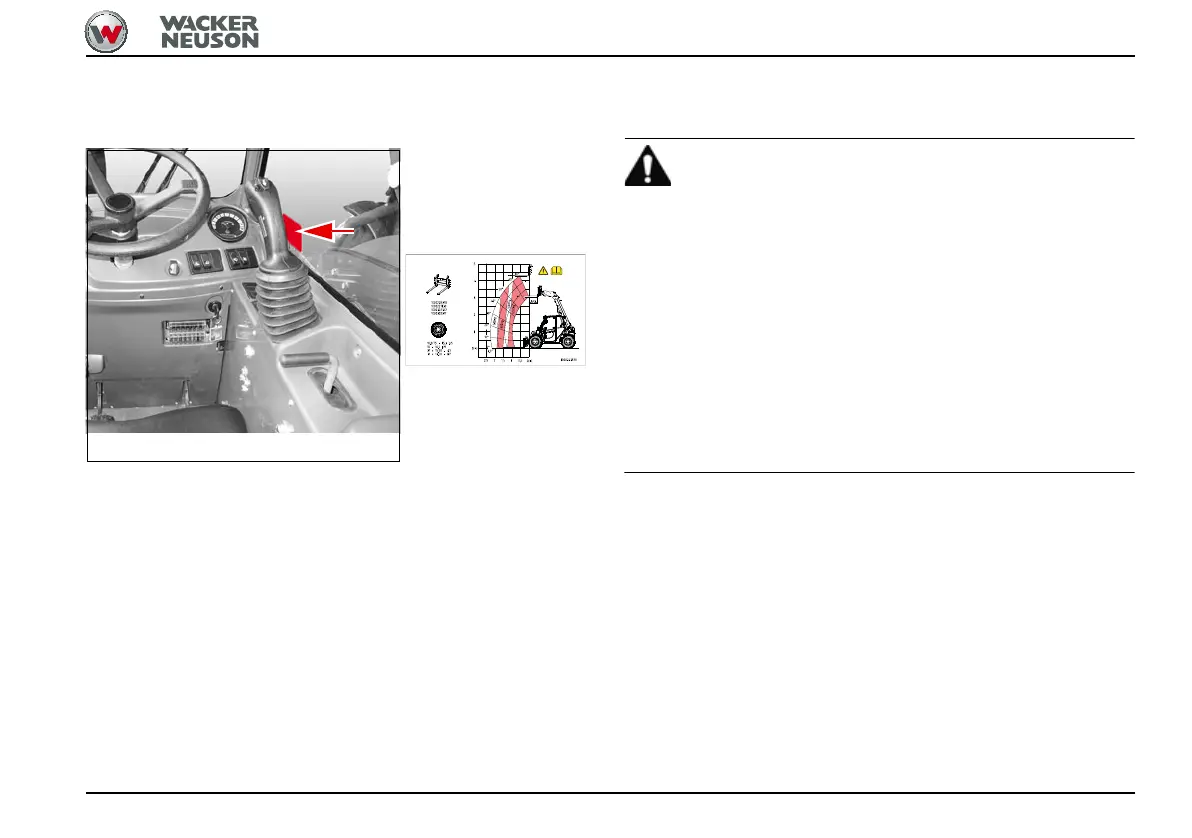

Load diagram
Pay attention to the indications on the load diagram. The
load diagram is located in the operator’s cab on the right
side window. For a picture of the load diagram, see page
– see "Load diagram" on page 9-13 in chapter Technical
data.
Overload protection
Tipping hazard due to overloading!
The overload protection is enabled if the load is too
heavy. Lowering quickly or unevenly can cause the
machine to tip over.
► Slowly and carefully lower the boom.
The overload protection function is deactivated when the
boom is retracted.
► Pay attention to the display of the safe load indicator.
► Reduce the load if necessary.
If the overload protection is enabled, reduce the load on
the loader unit immediately. In order to do so, proceed as
follows:
1. Retract the telescopic arm.
2. Reduce the load (for example tilt out some of the load,
carefully lower and set down the load).
