Removing attachments from a hydraulic quickhitch (option)
Lower the attachment only to firm, level ground and
secure it to prevent it from tipping over or rolling away.
1. Retract the telescopic boom completely.
2. Lower the attachment until it is barely above the
ground.

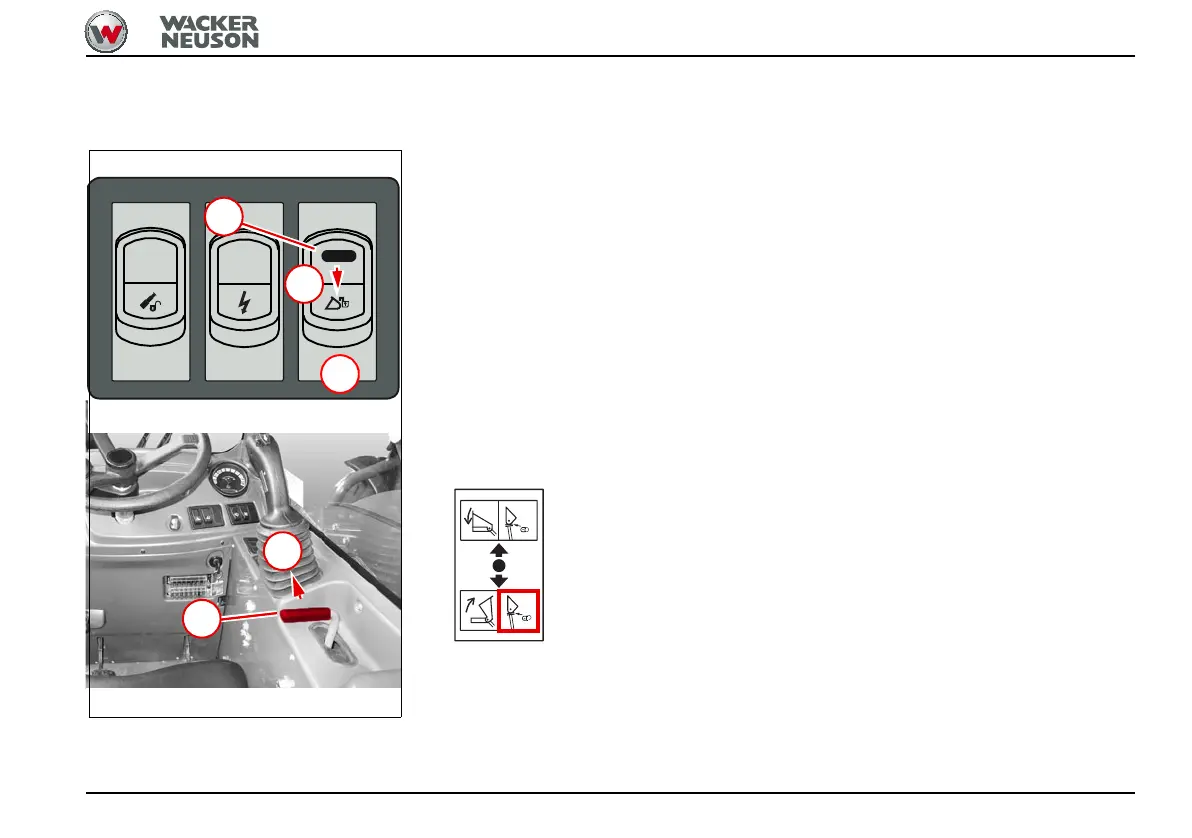

3. Move lock a in switch 40 toward b. Press and hold
switch 40 and move control lever 6 toward L.
- The lock pins 3 are retracted.
➥ The quickhitch is unlocked.
4. Lower the loader unit and tilt out the attachment.
- This removes the pins 1 from the catch hooks 2.
5. Reverse the machine away from the attachment as
soon as the catch hooks are free.
