5 Operation

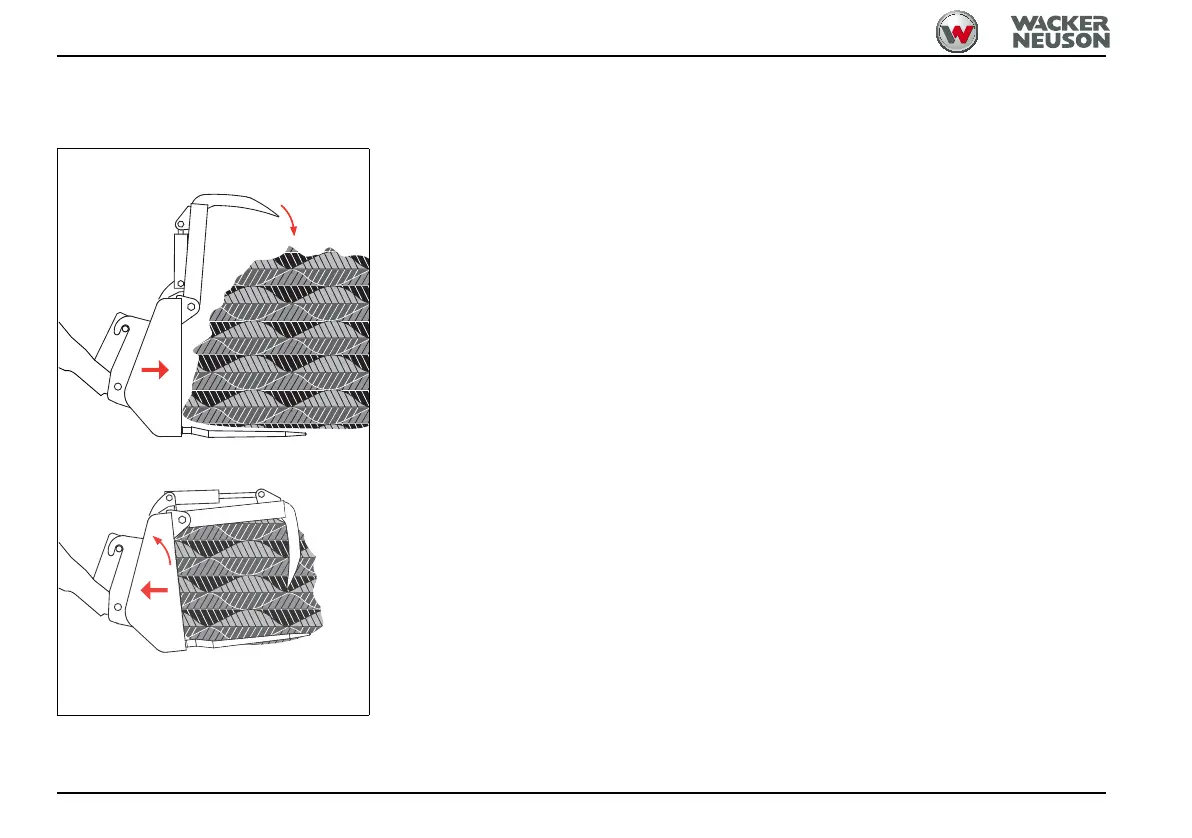

Working with the fork-and-grab attachment
1. Open the fork-and-grab attachment.
2. Lower the fork-and-grab attachment until the tines are
parallel to the ground.
3. Travel into the material.
- Pay attention to the travel speed.
4. Slightly raise the loader unit.
➥ A load is applied to the front axle of the machine.
5. Close the fork-and-grab attachment.
If the material is solid, such as compacted manure, the
fork-and-grab attachment can be tilted in to loosen the
load.
1. Travel to the unloading position in a straight line.
2. Raise the fork-and-grab attachment to the required
height only shortly before reaching the unloading
position.
3. Travel forward as far as possible and tilt out the fork-
and-grab attachment.
4. Open the fork-and-grab attachment.
➥ The load falls out.
