Operation 5
BA TH412 * 06/2017 * 4512_5-13_2_Opt_Hydr_en.fm
5-93
Operating the rear hydraulic connections with a
switch
With this type of connection, the hydraulic connections on
the loader unit and at the rear of the machine can be
operated separately.
This function is operated with the rocker switch 48.
Coupling the rear hydraulic connections requires
releasing the pressure on them first. Proceed as follows:
1. Stop the engine.
2. Switch on the starter (position I).
3. Press the rocker switch 48 in both directions.
The pressure on the rear hydraulic connections is
released.
4. Connect the hydraulic connections.
Press the rocker switch 48 to "position I:"
The upper hydraulic connection is the pressure
side.
Press the rocker switch 48 to "position II:"
The lower hydraulic connection is the pressure
side.
Press switch 48 to position 0:
There is no pressure on any of the hydraulic
connections.

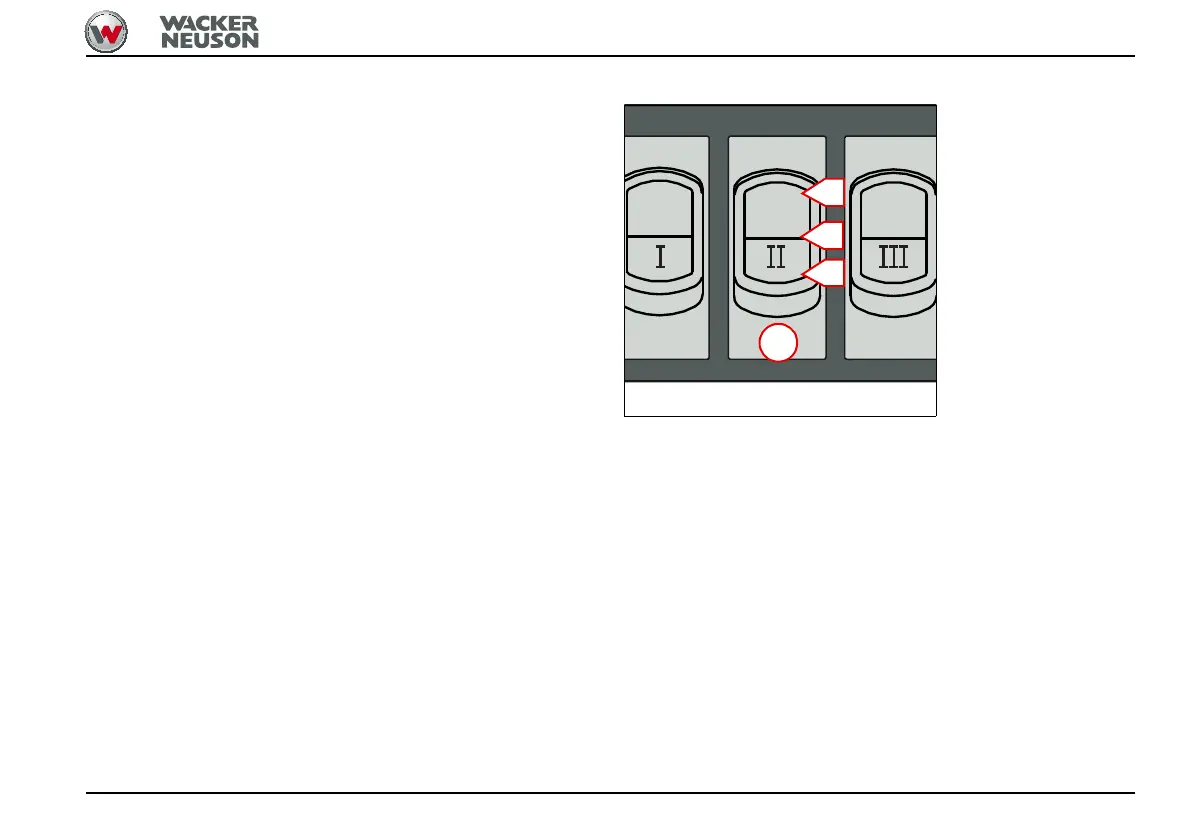

Fig. 111
48
I
II
0
