7 Maintenance
Preparations:
1. Park the machine on firm, level and dry ground.
2. Apply the parking brake.
3. Fully lower the loading frame to the ground.
4. Stop the engine.
5. Set all control levers and switches to the zero position.
6. Switch off all electrical consumers and the battery
master switch.
7. Remove the starting key.
Way of proceeding:
1. Open the engine cover.
2. Unscrew the line from the negative terminal (ā).

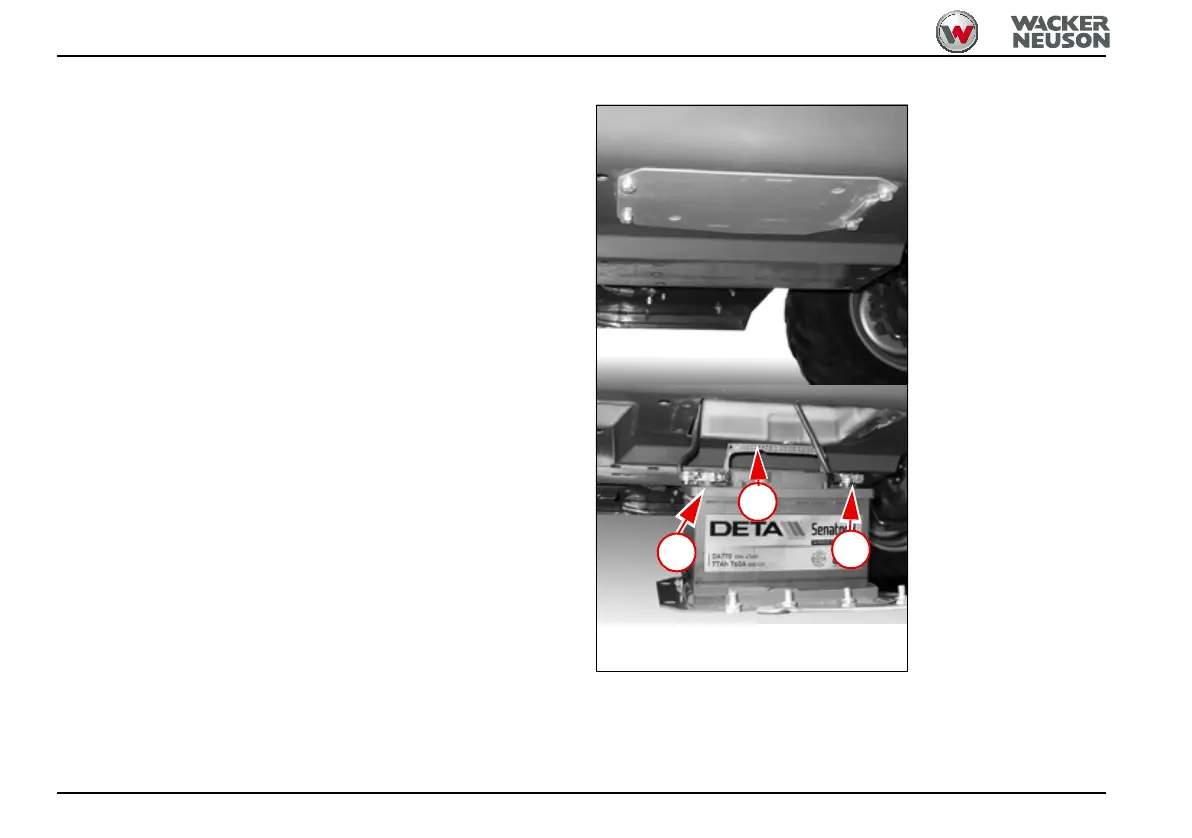

3. Put a jack under the battery plate.
4. Unscrew the 4 screws (WS 17) of the battery plate and
lower the battery with a suitable jack.
5. Unscrew the line from the positive terminal (+).
6. Unscrew battery holder (WS 13).
7. Take out the battery with handle 1.
