24

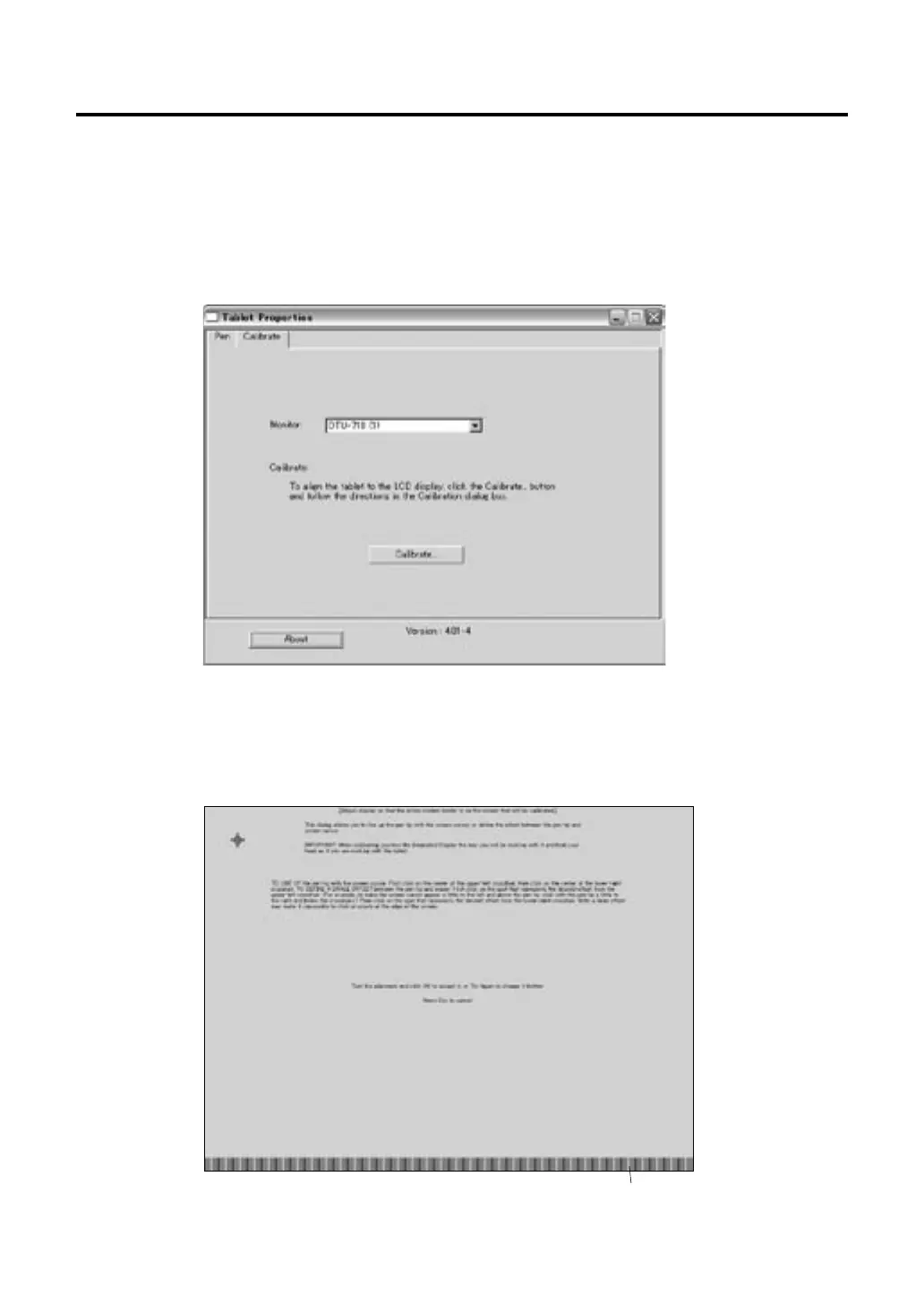

Adjusting Pitch and Phase
1.
From the Wacom Tablet Control Panel, select the CALIBRATION tab.
If you are working with multiple monitors, be sure the display corresponding
to the DTI-520 is selected in the MONITOR menu.
2.
Click on the CALIBRATE... button to display the monitor calibration screen.
Adjustment pattern
Adjusting the LCD Monitor
Some computers and video cards may not allow the multi-sync function to
fully work when DTI-520 is first connected. If some portion of the text appears
blurred, adjust the pitch and phase by following the procedure below. For crisp
images, set the DTI-520 resolution of your video card to 1280 x 1024.
To Next Page
