14
Calibrating the DTI-520
1.

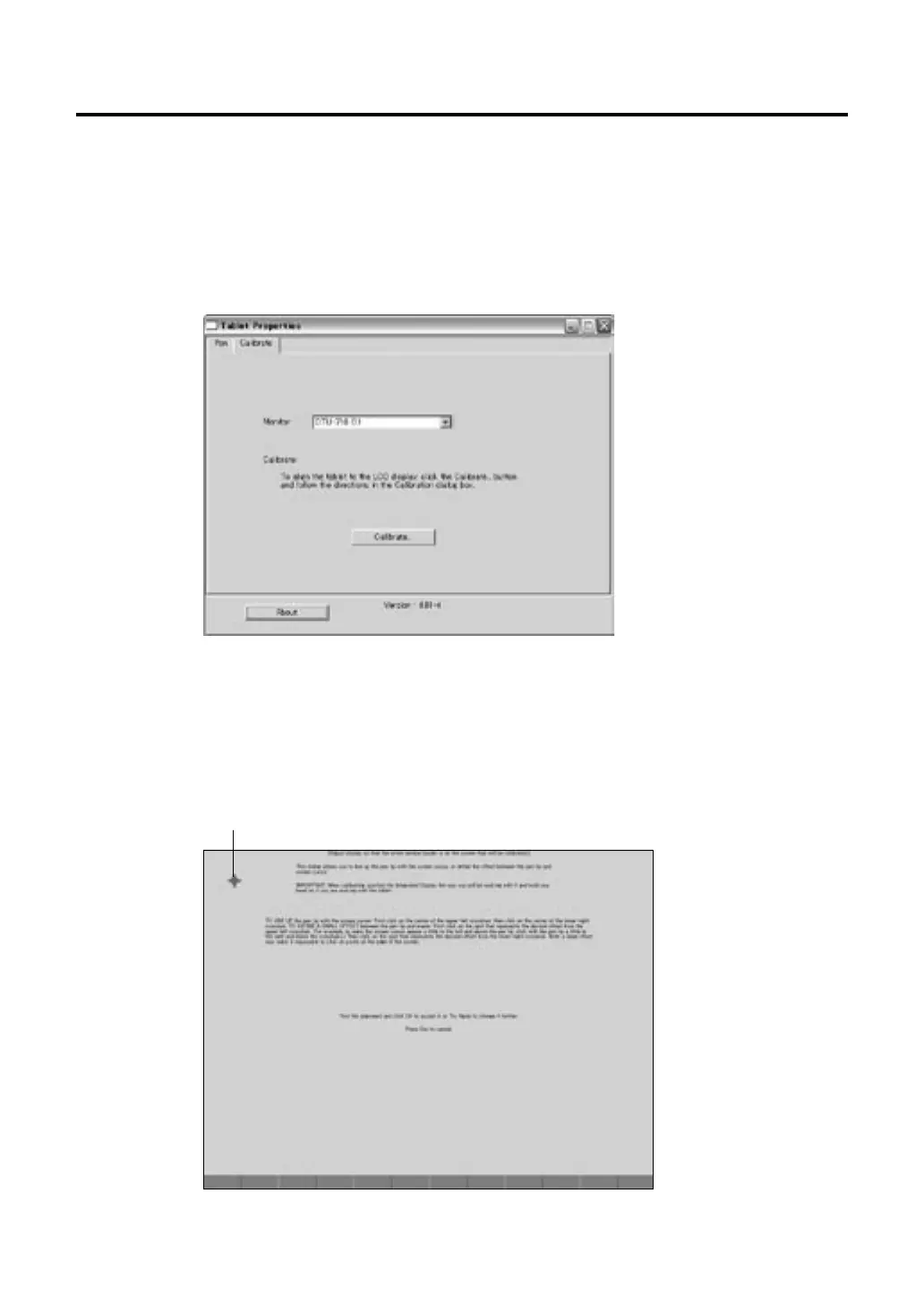

From the WACOM TABLET Control Panel, select the CALIBRATION tab.
If you are working with multiple monitors, select the Monitor that
corresponds to the tablet's LCD display. (Only monitors that are set to one of
the resolutions supported by the DTI-520 will appear in the list.)
2.
Click on the CALIBTRATE... button to display the monitor calibration screen.
Cross-hairs
Adjustment pattern
for phase and pitch.
See
Adjusting Pitch
and Phase (VGA
Only)
on page 26 for
details.
Customizing DTI-520 – The Basics
You will need to calibrate the pen display tablet in order to align the screen cursor
position with the position of the pen on the display screen. This is required to
adjust for parallax caused by the display screen cover glass. Set the DTI-520 in
its working position, then follow the procedure below.
To Next Page
