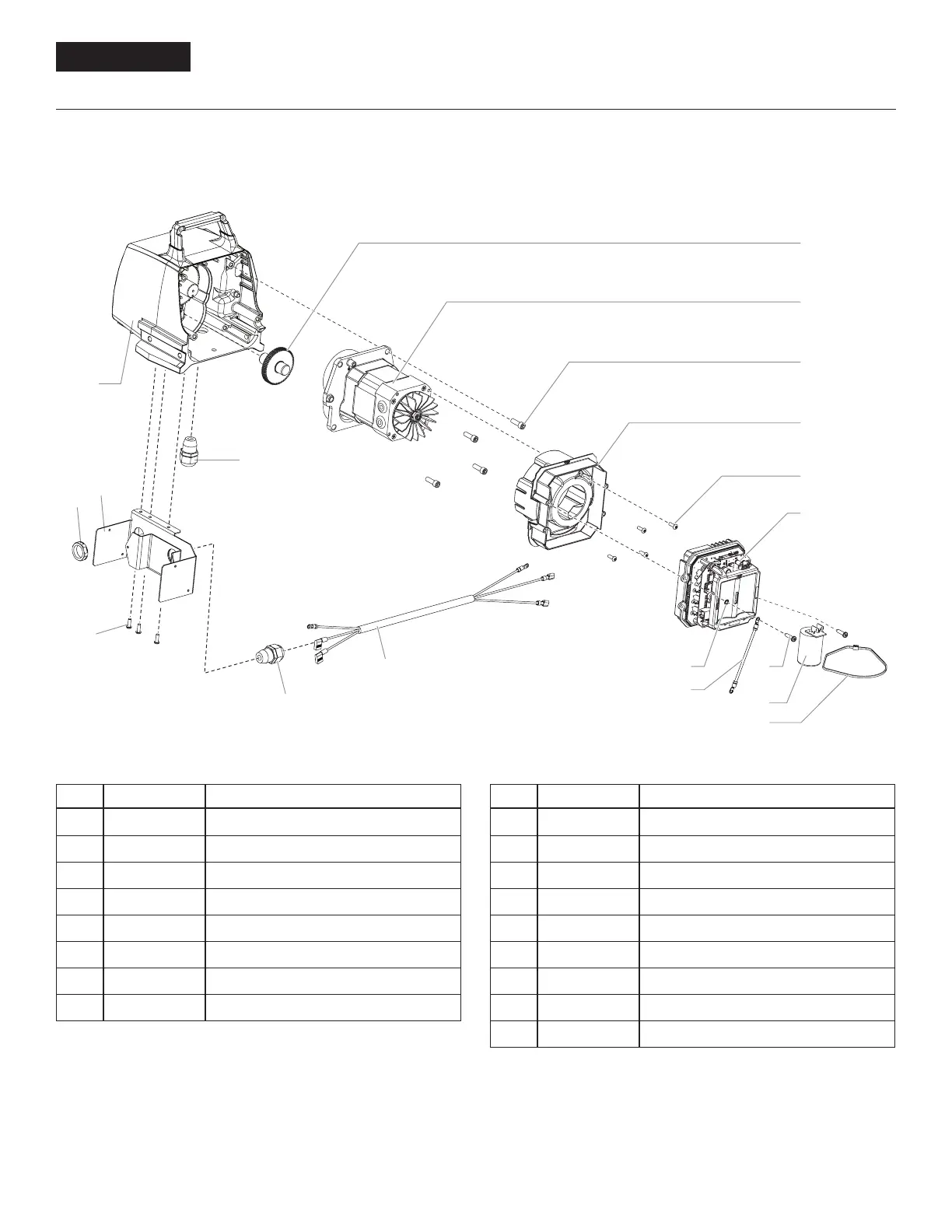

SPARE PARTS DIAGRAM
PS 3.25
GB DRIVE ASSEMBLY
37
9
10
811
12
1
2
3
5
6
7
4
13
17
14
15
16
13
#
PS 3.25 Description
1 0524 637A Housing assembly
2 0509 121 2nd stage gear
3 0290 282 Motor assembly
4 0508 559 Screw (4)
5 0290 226 Bae assembly
6 0509 218 Screw (2)
7 0558 540 Electronic control assembly
8 9802 266 Screw
#
PS 3.25 Description
9 0522 023 Capacitor assembly
10 0551 543 Tie wrap
11 9822 106 Washer
12 0522 040 Wire assembly
13 0551 714 Cord grip (2)
14 0558 449 Bracket*
15 0551 980 Lock nut*
16 0509 218 Screw (3)*
17 0558 476 Power cord jumper*
* UK only
