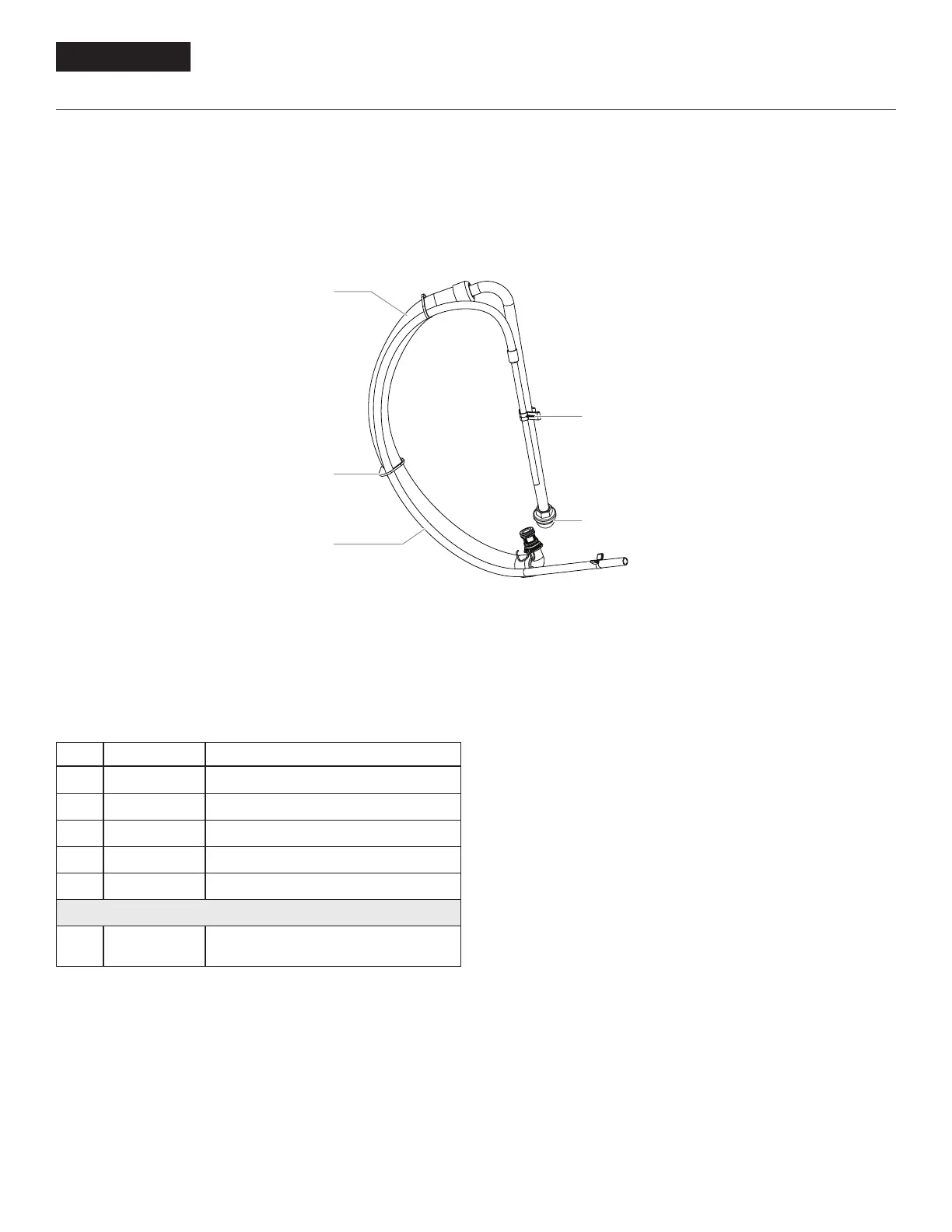

SPARE PARTS DIAGRAM
PS 3.25
GB
SUCTION SYSTEM FOR STAND
39
1
3
2
4
5
#
PS 3.25
Description
1
0551 706
Siphon hose
2
9850 638
Tie wrap (2)
3
0558 659A
Return tube
4
0279 459
Clip
5
0295 565
Inlet screen
0558 672
Siphon tube assembly (includes items
1-5)
38
40
Table of Contents
Default Chapter
3
Table of Contents
3
1 Safety Regulations for Airless Spraying
4
Explanation of Symbols Used
4
Electric Safety
8
Electrostatic Charging (Formation of Sparks or Flames)
8
2 General View of Application __________
9
General View of Application
9
Application
9
Coating Materials
9
3 Description of Unit
10
Airless Process
10
Functioning of the Unit
10
Technical Data
10
Legend for Explanatory Diagram PS 3.25
11
Explanatory Diagram PS 3.25
11
Transportation
12
Transportation in Vehicle
12
4 Starting Operation
12
High-Pressure Hose, Spray Gun and Separating Oil
12
Control Panel Indicators
13
Pressure Control Knob Settings
13
Connection to the Mains Network
14
Cleaning Preserving Agent When Starting-Up of Operation Initially
14
Taking the Unit into Operation with Coating Material
14
Digital Electronic Spray Control (DESC)
15
Spraying Technique
17
Handling the High-Pressure Hose
18
Interruption of Work
18
8 Cleaning the Unit (Shutting Down)
19
Cleaning Unit from Outside
19
Suction Filter
19
Cleaning the High-Pressure Filter
20
Cleaning Airless Spray Gun
20
9 Remedy in Case of Faults
21
10 Servicing
22
General Servicing
22
High-Pressure Hose
22
11 Repairs at the Unit
22
Relief Valve
22
Inlet and Outlet Valve
23
Packings
24
PS 3.25 Connection Diagram
25
Digital Electronic Spray Control (DESC) Error Messages
25
12 Appendix
26
Selection of Tip
26
Servicing and Cleaning of Airless Hard-Metal Tips
26
Spray Gun Accessories
27
Airless Tip Table
28
Tempspray
30
Pump-Runner
31
Accessories for Prospray 3.25
32
Spare Parts List for Main Assembly
34
Spare Parts List for the Fluid Section
36
Spare Parts List for Drive Assembly
37
Spare Parts List of Stand
38
Spare Parts List for Suction System of Stand
39
6 Handling the HighPressure Hose ____18
40
Spare Parts List of Upright Cart Assembly
40
Important Notes on Product Liability
41
3+2 Years Guarantee for Professional Finishing
41
Sales and Service Companies
43
Other manuals for WAGNER 0558021
Operating Manual
36 pages
Original Operating Manual
36 pages
4
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the WAGNER 0558021 and is the answer not in the manual?
Ask a question
WAGNER 0558021 Specifications
General
Brand
WAGNER
Model
0558021
Category
Paint Sprayer
Language
English
Related product manuals
WAGNER ProSpray 3.21 0558019
28 pages
WAGNER GX 05
4 pages
WAGNER 0529017
20 pages
WAGNER SMART SIDEKICK 0530010
12 pages
WAGNER GM 2600 0179070
16 pages
WAGNER Project 115 0418A
48 pages
WAGNER ProjectPro 117 0418B
20 pages
WAGNER W 180 P
42 pages
WAGNER Flexio 2000
20 pages
WAGNER CONTROL SPRAY
10 pages
WAGNER Control Stainer 150
40 pages
WAGNER PRO DUTY POWER PAINTER
13 pages
