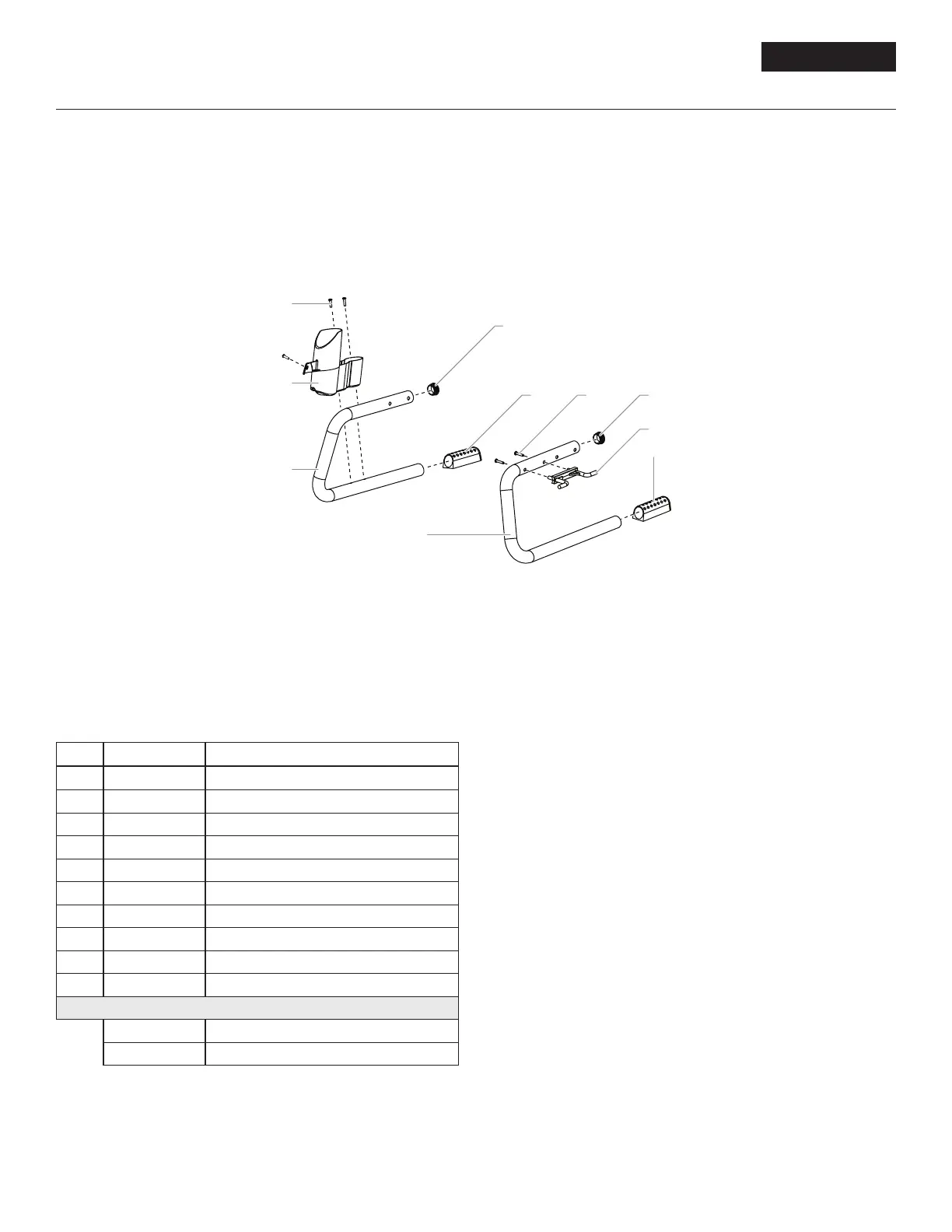

SPARE PARTS DIAGRAM
PS 3.25
GB
STAND
38
1
4
56
7
8
9
2
3
10
#
PS 3.25
Description
1
9805 367
Screw (3)
2
0290 215
Drip cup
3
0290 211
Leg, right
4
0294 635
Plug
5
0290 214
Foot
6
0508 660
Screw (2)
7
0294 635
Plug
8
0290 219
Cord holder
9
0290 214
Foot
10
0290 210
Leg, left
0290 203
Left leg assembly (includes items 6-10)
0290 204
Right leg assembly (includes items 1-5)
37
39
Table of Contents
Default Chapter
3
Table of Contents
3
1 Safety Regulations for Airless Spraying
4
Explanation of Symbols Used
4
Electric Safety
8
Electrostatic Charging (Formation of Sparks or Flames)
8
2 General View of Application __________
9
General View of Application
9
Application
9
Coating Materials
9
3 Description of Unit
10
Airless Process
10
Functioning of the Unit
10
Technical Data
10
Legend for Explanatory Diagram PS 3.25
11
Explanatory Diagram PS 3.25
11
Transportation
12
Transportation in Vehicle
12
4 Starting Operation
12
High-Pressure Hose, Spray Gun and Separating Oil
12
Control Panel Indicators
13
Pressure Control Knob Settings
13
Connection to the Mains Network
14
Cleaning Preserving Agent When Starting-Up of Operation Initially
14
Taking the Unit into Operation with Coating Material
14
Digital Electronic Spray Control (DESC)
15
Spraying Technique
17
Handling the High-Pressure Hose
18
Interruption of Work
18
8 Cleaning the Unit (Shutting Down)
19
Cleaning Unit from Outside
19
Suction Filter
19
Cleaning the High-Pressure Filter
20
Cleaning Airless Spray Gun
20
9 Remedy in Case of Faults
21
10 Servicing
22
General Servicing
22
High-Pressure Hose
22
11 Repairs at the Unit
22
Relief Valve
22
Inlet and Outlet Valve
23
Packings
24
PS 3.25 Connection Diagram
25
Digital Electronic Spray Control (DESC) Error Messages
25
12 Appendix
26
Selection of Tip
26
Servicing and Cleaning of Airless Hard-Metal Tips
26
Spray Gun Accessories
27
Airless Tip Table
28
Tempspray
30
Pump-Runner
31
Accessories for Prospray 3.25
32
Spare Parts List for Main Assembly
34
Spare Parts List for the Fluid Section
36
Spare Parts List for Drive Assembly
37
Spare Parts List of Stand
38
Spare Parts List for Suction System of Stand
39
6 Handling the HighPressure Hose ____18
40
Spare Parts List of Upright Cart Assembly
40
Important Notes on Product Liability
41
3+2 Years Guarantee for Professional Finishing
41
Sales and Service Companies
43
