WAGNER EP 3000 User Manual

EP3000
DRUCK/
Pressure
1
2

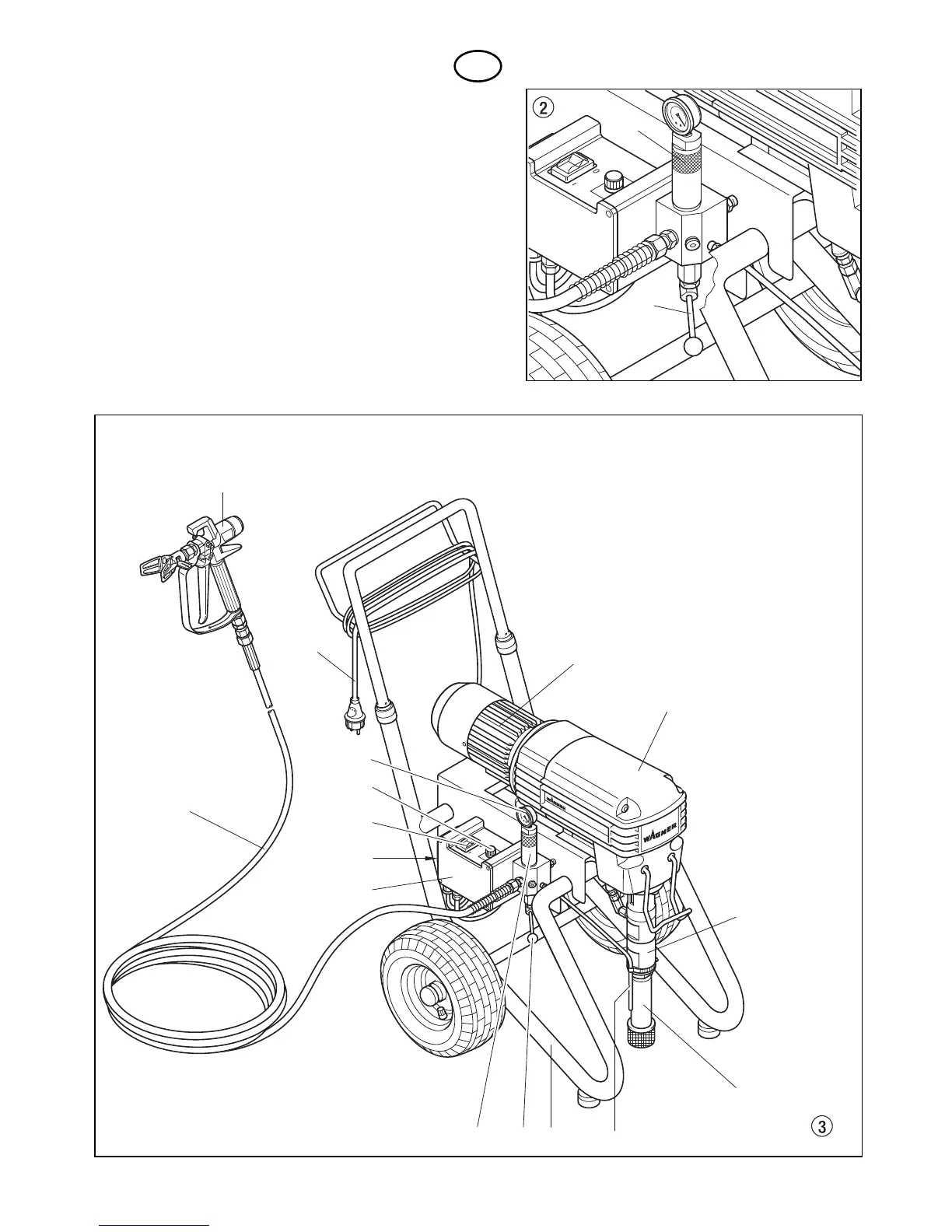

Explanatory diagram WAGNER EP 3000
Switch off unit and release the pressure in the unit
when working on the high-pressure filter.
Attention:
Never unscrew the filter housing (fig. 2, item 1)
while still under pressure if the high pressure filter is
blocked. Correct procedure:
1. Switch off unit.
2. Remove mains plug from the socket.
3. Release the safety unit on the spray gun and
open trigger.
4. Open release tap (2) – lever relocated.
5. Unscrew the filter housing.
6. Clean or replace filter insert.
26
EP3000
DRUCK/
Pressure
WAGNER
G15
1
3
4
5
679 8
16
10
13
12
2
15
11
14
1 Spray gun G 15
2 Electric motor
3 Gear unit
4 Material feed pump
5 Intake hose with filter
6 Return hose
7 Trolley
8 Release valve
9 High-pressure filter
10 Switch box
11 Motor safety switch (400 V)
12 Motor safety switch (230 V)
13 Pressure regulator
14 Pressure gauge
15 Mains cable
16 Special high-pressure hose 15 m
GB
