EN
11

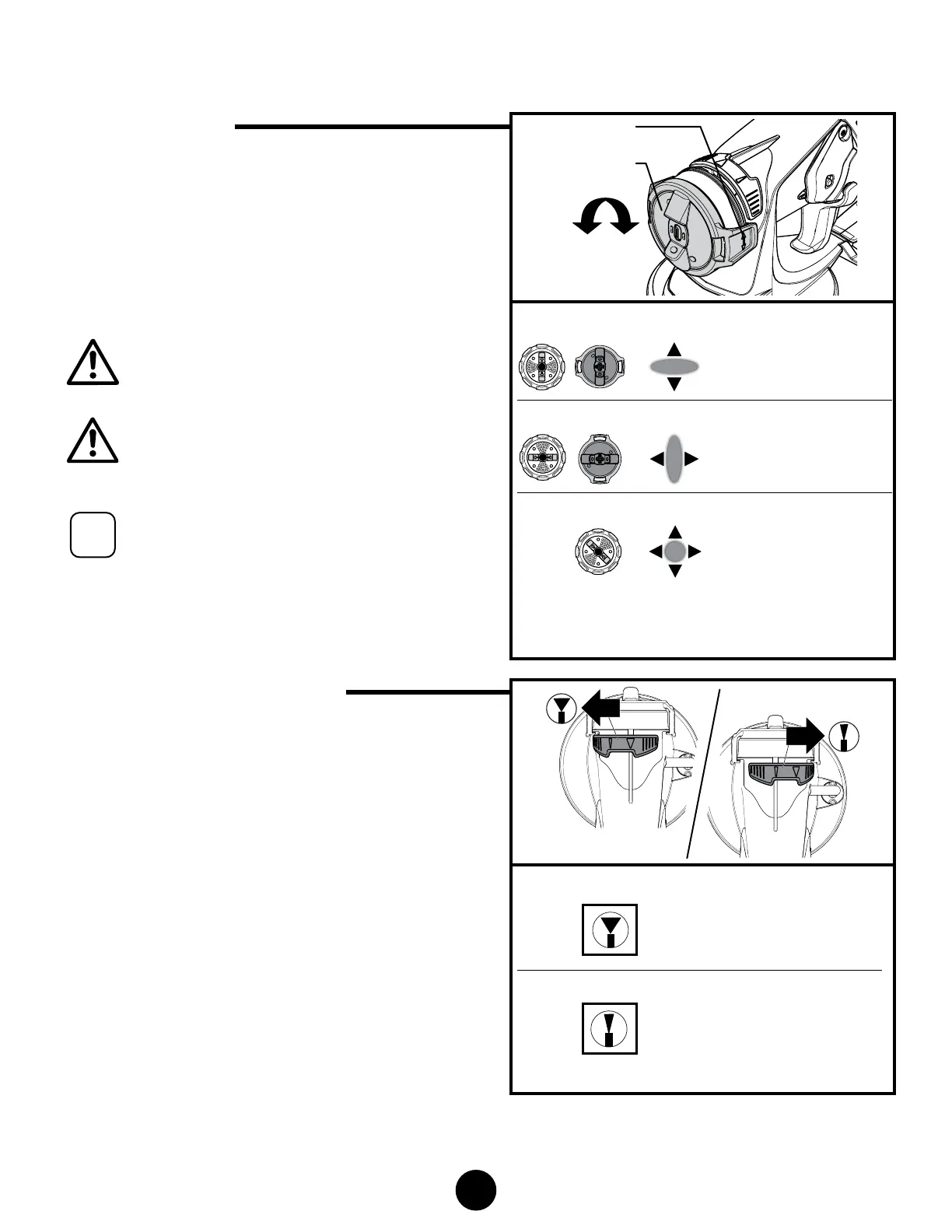

SPRAY PATTERN ADJUSTMENT
ADJUST SPRAY SHAPE
Adjust the spray pattern by turning the air cap ears. Adjust
the air cap position to your intended direction of the spray
gun.
The positions of the air cap and the corresponding spray
pattern shapes are illustrated below.
Test each pattern and use whichever pattern is suitable for
your application.
NEVER trigger the gun while turning the
adjustment ring. NEVER point the spray gun at
any part of the body.
tention
When changing the spray pattern, make sure
the black retaining ring is not loosened.
*The air cap can be set diagonally on the
Gravity Feed nozzle only. To achieve a round
pattern with the iSpray nozzle, see the “Adjust
Spray Width” section.
ADJUST SPRAY WIDTH iSPRAY ONLY
The spray width lever on the iSpray nozzle determines the
width of the spray pattern.
TIPS:
1. Start with a narrow fan pattern for painting trim work (1-
5” width) and touch ups. Use a wide pattern for larger
surfaces like doors and walls (>5” width).
2. Adjust Material & Air Flow settings as shown in chart
based on coating, fan pattern width, and nozzle.
3. Fine tune the Material and Air Power settings to achieve
the best results for your application. Use provided spray
poster to test.
4. Recommended settings for Material and Air Power may
change if the coating is thinned.
WIDE
NARROW
Wide pattern
For coating large
surfaces
Use higher air power
Use higher material
ow
Narrow pattern
For coating smaller
areas, corners and
edges
Use lower air power
Use lower material
ow
AIR CAP
AIR CAP EARS
Horizontal pattern
=
Use ‘up and down’
spraying motion
Vertical pattern
=
Use ‘side to side’
spraying motion
Round pattern*
=
Use ‘up and down’ or
‘side to side’ spraying
motion
Use lower air power /
material ow
For coating smaller
areas, corners and
edges
