ASSEMBLY iSPRAY NOZZLE
iSPRAY ASSEMBLY
tention
Make sure the power cord is unplugged.

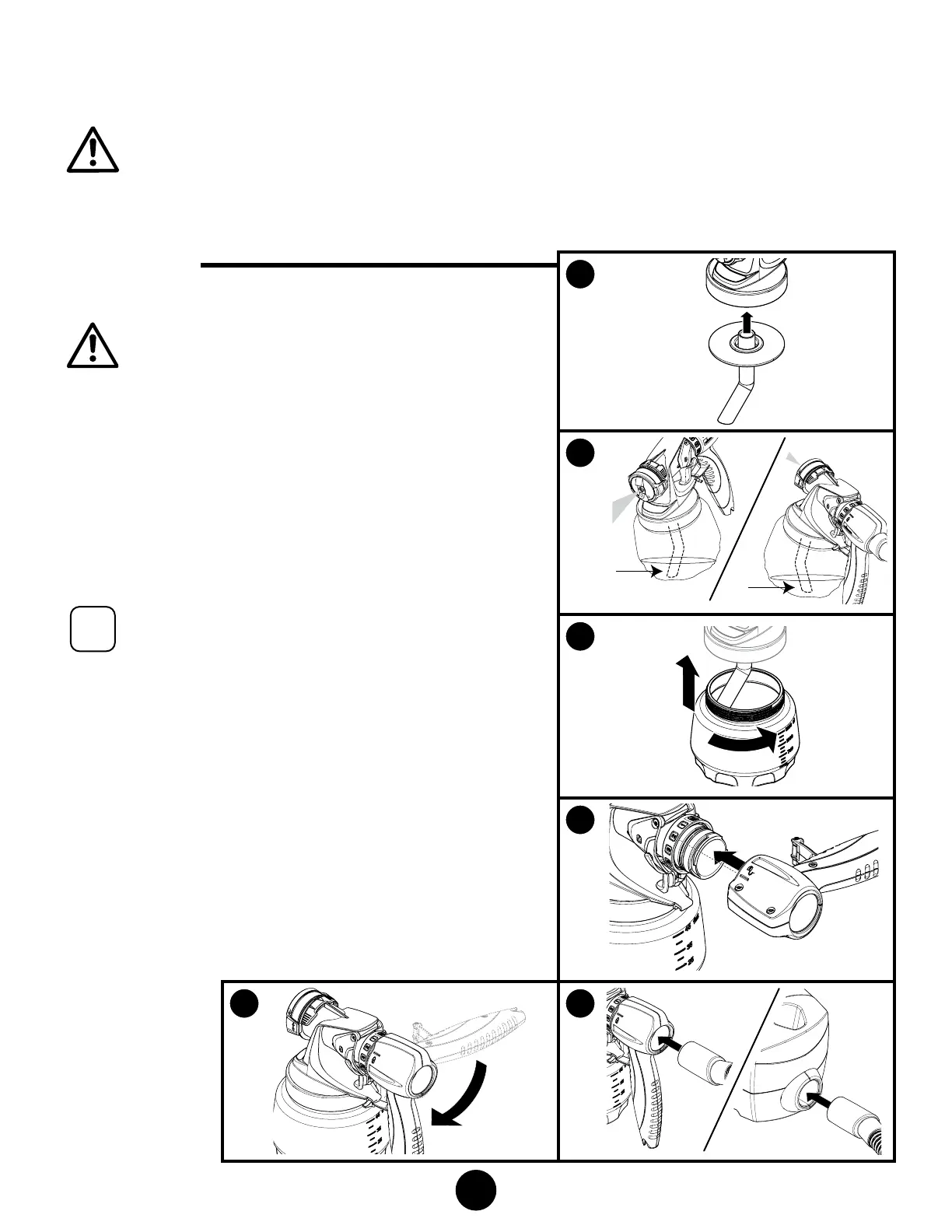

1. Insert the suction tube into the intake opening.
2. Align the pickup tube:
A If spraying downward, the angled end of the pickup tube
should be pointing toward the front of the nozzle.
B If spraying upward, the angled end of the pickup tube
should be pointing toward the rear of the nozzle.
Make sure the pickup tube is inserted as far as it
will go to ensure a tight t.
3. Carefully screw the cup back onto the nozzle assembly.
Tighten rmly.
4. Align the nozzle and the handle approximately as shown.
5. Insert and twist the nozzle into the handle toward the
“lock” symbol on the handle.
The tab below the trigger will lock the two pieces into
place.
6. Insert the air hose tightly into the connection on the spray
gun handle. The connection can be positioned as desired.
Insert the air hose tightly into the connection into the
turbine. The connections can be positioned as desired.
NEVER point the spray gun at any part of the
body.
1
2
A
B
3
4
5 6
