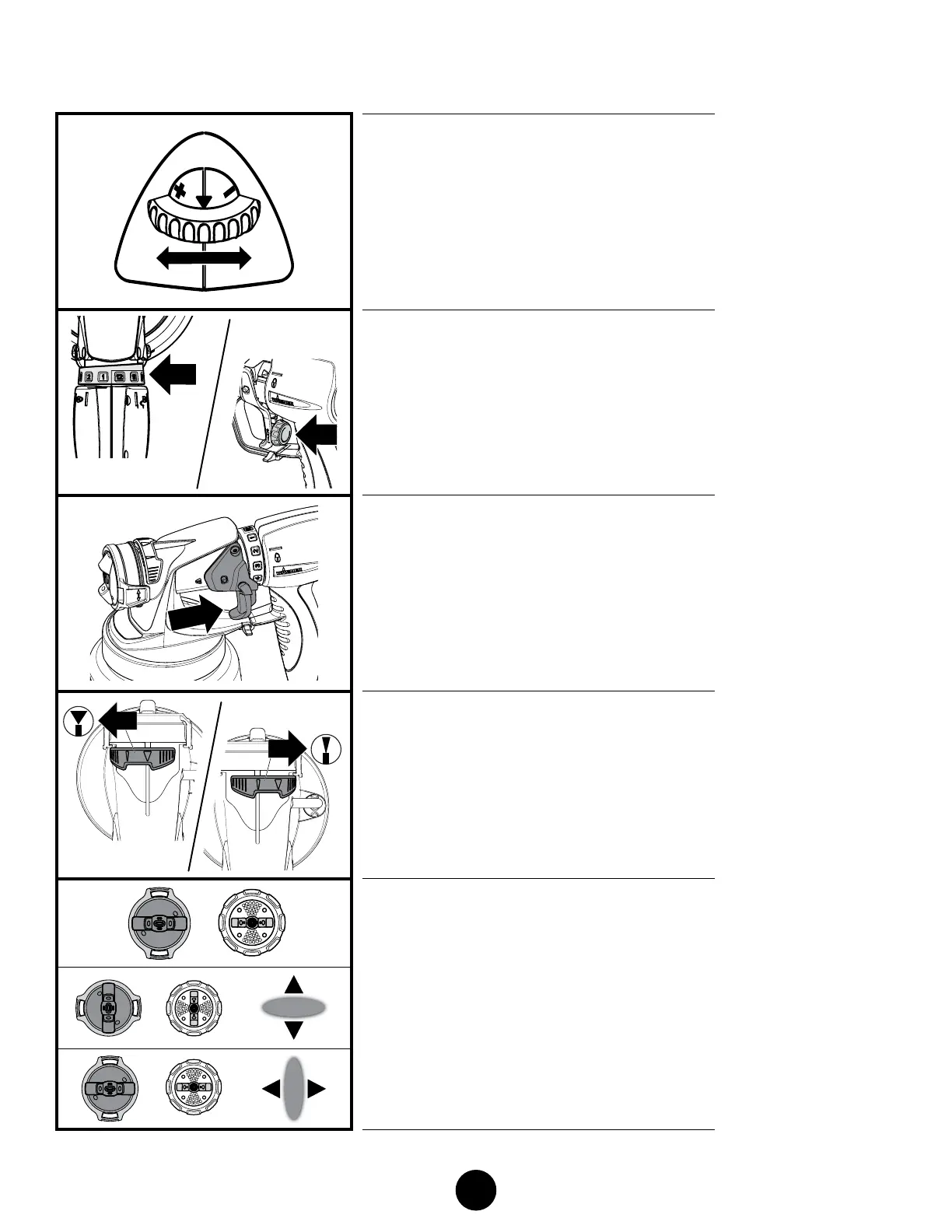

CONTROLS AND FUNCTIONS
+
-
XBOOST™ POWER DIAL
The X-Boost power dial adjusts the level of air power
produced by the turbine.
iSPRAY
GRAVITY FEED
MATERIAL FLOW CONTROL
The material ow control determines the amount of
spray material that is sprayed from the spray nozzle.
iSpray Nozzle - The material ow can be adjusted
incrementally from 1 (minimum) to 12 (maximum) by
turning the adjustable material ow control.
Gravity Feed Nozzle - Set the material ow by turning
the knob on the trigger of the spray gun.
TRIGGER
Pulling the trigger will deliver spray material from the
material container to the nozzle assembly, where it is
sprayed.
WIDE
NARROW
SPRAY WIDTH LEVER
The spray width lever determines the width of the spray
pattern.
AIR CAP
Adjust the spray pattern by turning the air cap ears.
Adjust the air cap to your intended movement direction
of the spray gun.
=
Horizontal pattern (use ‘up and down’ spraying motion)
=
Vertical pattern (use ‘side to side’ spraying motion)
