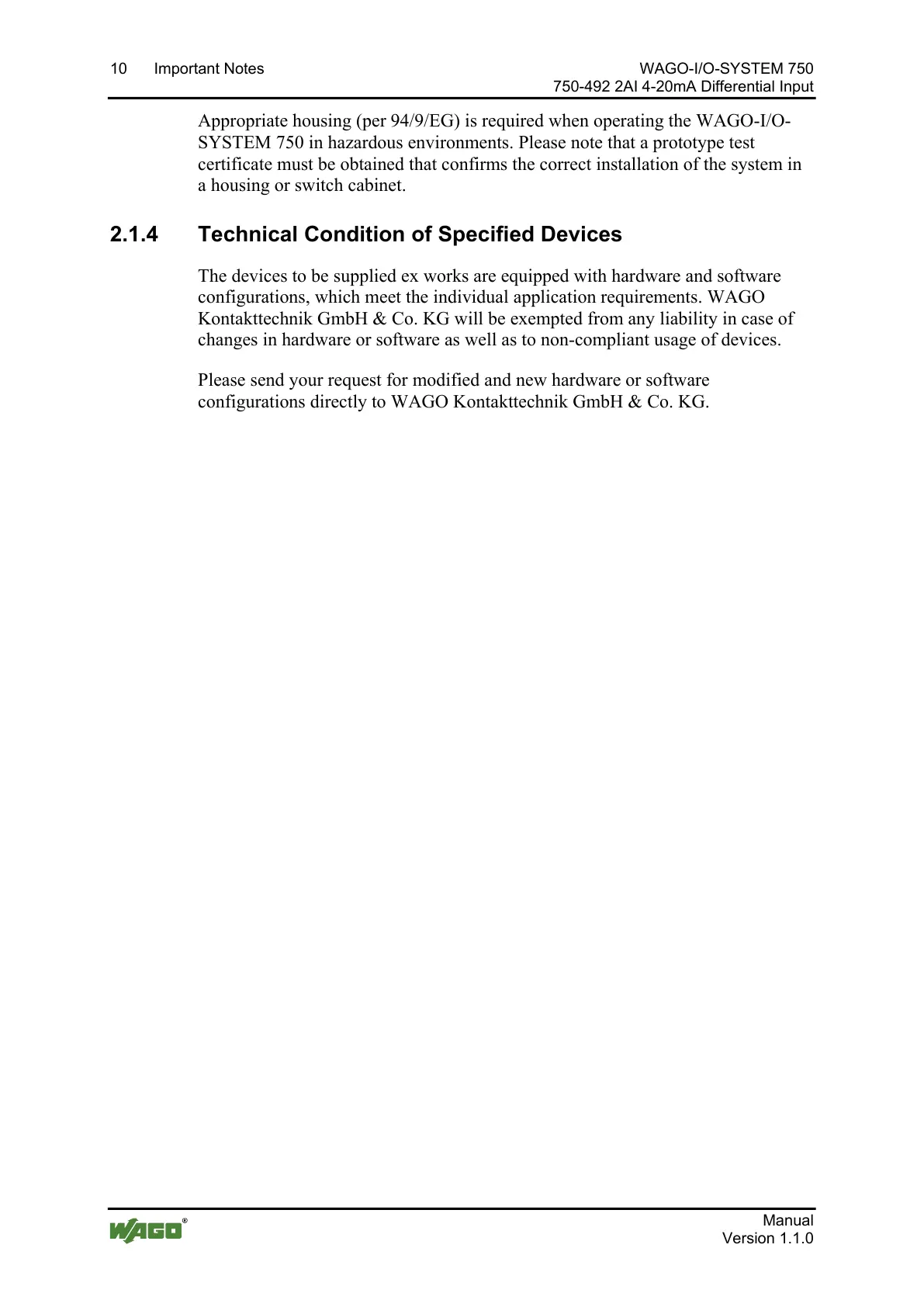

WAGO 750 Series Instruction Manual

10 Important Notes WAGO-I/O-SYSTEM 750
750-492 2AI 4-20mA Differential Input
Manual
Version 1.1.0
Appropriate housing (per 94/9/EG) is required when operating the WAGO-I/O-
SYSTEM 750 in hazardous environments. Please note that a prototype test
certificate must be obtained that confirms the correct installation of the system in
a housing or switch cabinet.
Pos: 15.6 /Alle Serien (A llgemeine Dokumente) (Allgemeine Module)/ Wichtige Erläuterunge n/Technischer Zusta nd der Geräte - Übersc hrift 3 und Inhalt @ 3\mod_12210 60446109_21.docx @ 217 23 @ 3 @ 1
2.1.4 Technical Condition of Specified Devices
The devices to be supplied ex works are equipped with hardware and software
configurations, which meet the individual application requirements. WAGO
Kontakttechnik GmbH & Co. KG will be exempted from any liability in case of
changes in hardware or software as well as to non-compliant usage of devices.
Please send your request for modified and new hardware or software
configurations directly to WAGO Kontakttechnik GmbH & Co. KG.
