WAGO 750 Series Instruction Manual

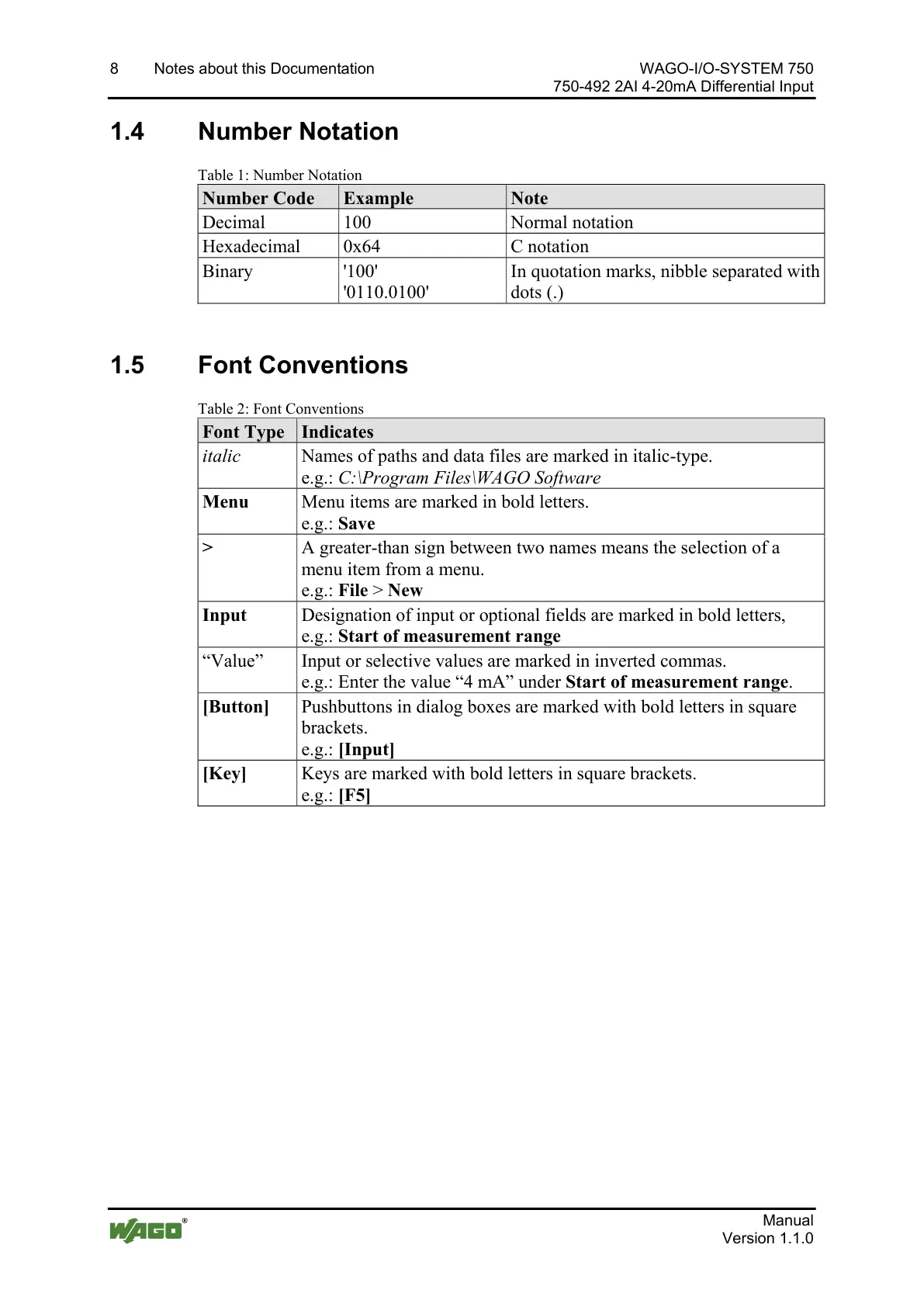

8 Notes about this Documentation WAGO-I/O-SYSTEM 750
750-492 2AI 4-20mA Differential Input
Manual
Version 1.1.0
Pos: 12.6 /Alle Serien (A llgemeine Module)/Hin weise zur Dokumentatio n/Zahlensyste me @ 3\mod_1221059454015_21. docx @ 21711 @ 2 @ 1
1.4 Number Notation
Table 1: Number Notation
Number Code
Example
Note
Decimal
100
Normal notation
Hexadecimal
0x64
C notation
Binary
'100'
'0110.0100'
In quotation marks, nibble separated with
dots (.)
Pos: 12.7 /Alle Serien (A llgemeine Module)/Hin weise zur Dokumentatio n/Schriftkon ventionen @ 3\mod_12210595 21437_21.docx @ 2171 4 @ 2 @ 1
1.5 Font Conventions
Table 2: Font Conventions
Font Type
Indicates
italic
Names of paths and data files are marked in italic-type.
e.g.: C:\Program Files\WAGO Software
Menu
Menu items are marked in bold letters.
e.g.: Save
>
A greater-than sign between two names means the selection of a
menu item from a menu.
e.g.: File > New
Input
Designation of input or optional fields are marked in bold letters,
e.g.: Start of measurement range
“Value”
Input or selective values are marked in inverted commas.
e.g.: Enter the value “4 mA” under Start of measurement range.
[Button]
Pushbuttons in dialog boxes are marked with bold letters in square
brackets.
e.g.: [Input]
[Key]
Keys are marked with bold letters in square brackets.
e.g.: [F5]
Pos: 13 /Dokumentation al lgemein/Glieder ungselemente/---Seitenwec hsel--- @ 3\mod_122110804 5078_0.docx @ 21810 @ @ 1
All manuals and user guides at all-guides.com

WAGO 750 Series Specifications

General

Protection Class	IP20
Bus Couplers	PROFIBUS, CANopen, Ethernet
Modules	Digital Input, Digital Output, Analog Input, Analog Output
Mounting	DIN rail mounting
Voltage Supply	24 V DC (typical)
Communication Protocol	Depends on the bus coupler (e.g., PROFIBUS, CANopen, DeviceNet, Ethernet)
Digital Input Channels	Varies by module (e.g., 8, 16 channels)
Digital Output Channels	Varies by module (e.g., 8, 16 channels)
Analog Input Channels	Varies by module (e.g., 2, 4, 8 channels)
Analog Output Channels	1, 2, 4 channels (depending on module)
Width	12 mm, 24 mm (typical module widths)
Number of Channels	Varies by module type
Current Consumption per Channel	Varies by module type
