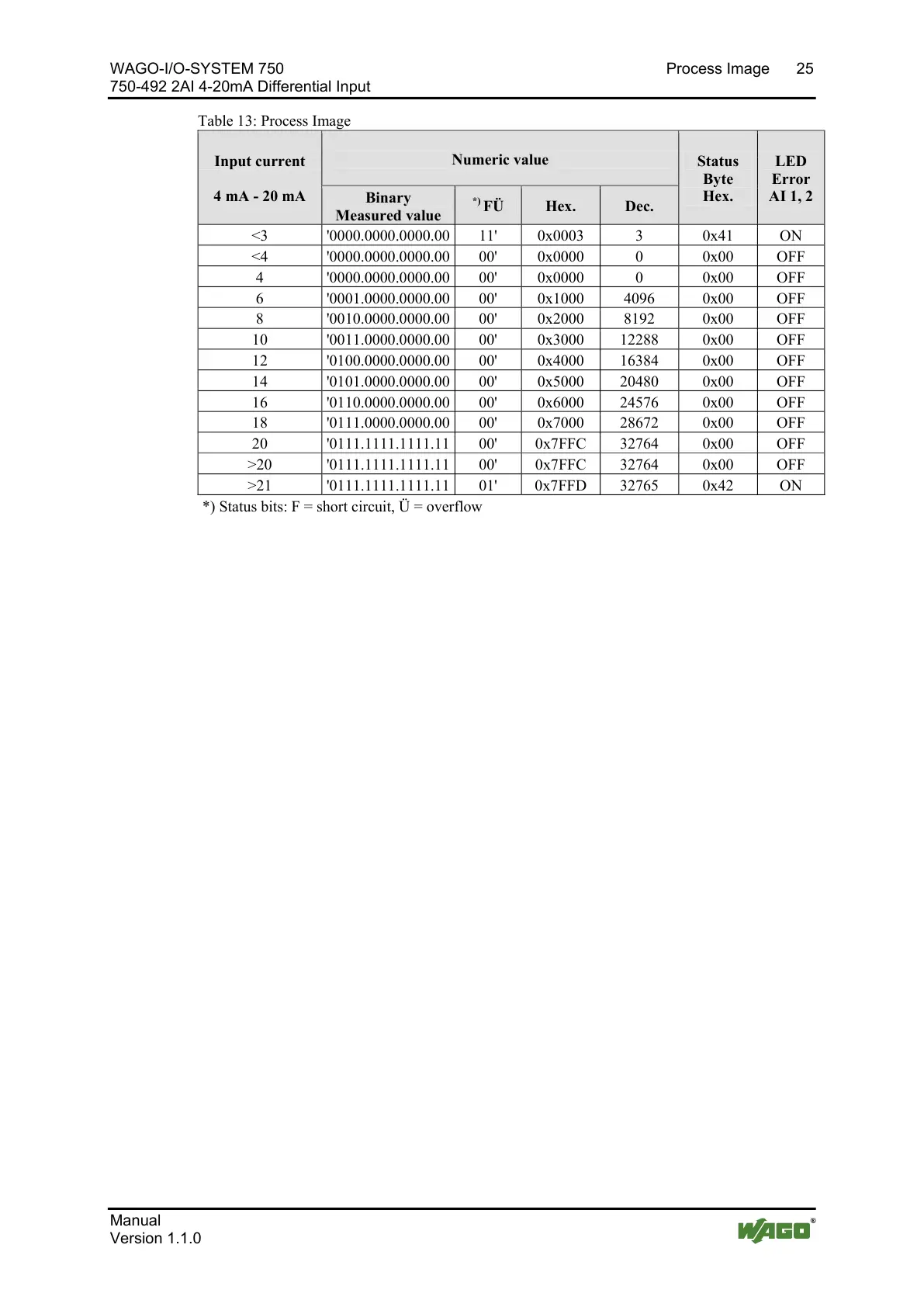

WAGO-I/O-SYSTEM 750 Process Image 25
750-492 2AI 4-20mA Differential Input
Manual
Version 1.1.0
Table 13: Process Image
Input current
4 mA - 20 mA
Numeric value
Status
Byte
Hex.
LED
Error
AI 1, 2
Binary
Measured value
*)
Hex. Dec.
<3
'0000.0000.0000.00
11'
0x0003
3
0x41
ON
<4
'0000.0000.0000.00
00'
0x0000
0
0x00
OFF
4
'0000.0000.0000.00
00'
0x0000
0
0x00
OFF
6
'0001.0000.0000.00
00'
0x1000
4096
0x00
OFF
8
'0010.0000.0000.00
00'
0x2000
8192
0x00
OFF
10
'0011.0000.0000.00
00'
0x3000
12288
0x00
OFF
12
'0100.0000.0000.00
00'
0x4000
16384
0x00
OFF
14
'0101.0000.0000.00
00'
0x5000
20480
0x00
OFF
16
'0110.0000.0000.00
00'
0x6000
24576
0x00
OFF
18
'0111.0000.0000.00
00'
0x7000
28672
0x00
OFF
20
'0111.1111.1111.11
00'
0x7FFC
32764
0x00
OFF
>20
'0111.1111.1111.11
00'
0x7FFC
32764
0x00
OFF
>21
'0111.1111.1111.11
01'
0x7FFD
32765
0x42
ON
*) Status bits: F = short circuit, Ü = overflow
