WAGO WAGO-I/O-SYSTEM 750 XTR User Manual

154 Fieldbus Communication WAGO-I/O-SYSTEM 750 XTR
750-352/040-000 FC ETHERNET G3 XTR
Manual
Version 1.3.0
Note the number system when addressing!
The examples listed use the hexadecimal system (i.e.: 0x000) as their numerical
format. Addressing begins with 0. The format and beginning of the addressing
may vary according to the software and the control system. All addresses then
need to be converted accordingly.
Pos: 94.7 /Dokumentation allgemei n/Gliederungselemente/---Sei te nwe chsel --- @ 3\mod_1221108045078_0.docx @ 21810 @ @ 1
Pos: 94.8 /Serie 750 (WAGO-I/O-SYSTEM)/Funktionsbeschreibung/Feldbuskommunikation/MODBUS/Anwendung der MODBUS-Funktionen - Einl eitu ng @ 7\ mod_1265623985585_21. docx @ 49940 @ 33 @ 1
11.2.2 Use of the MODBUS Functions

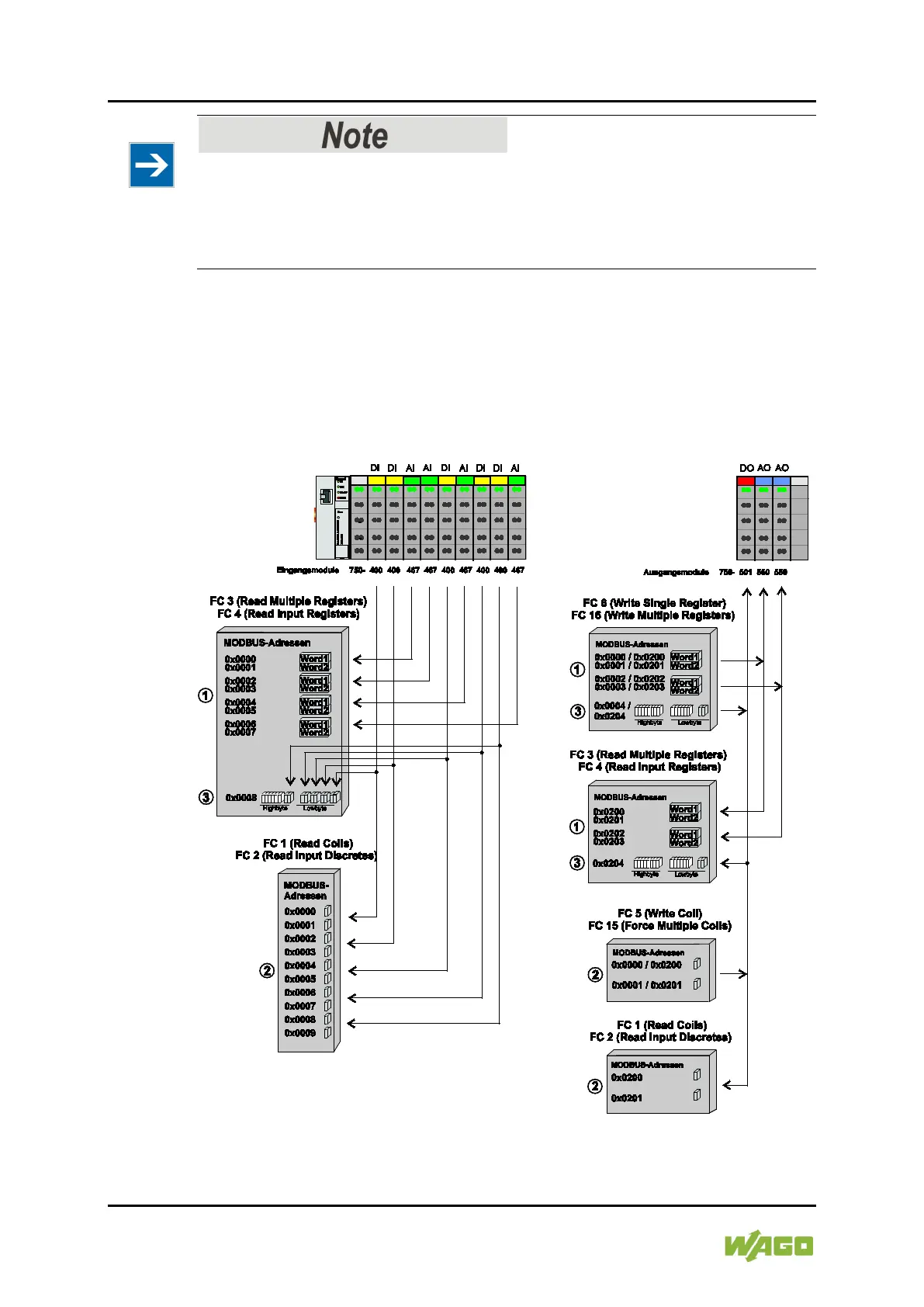

The example below uses a graphical view of a fieldbus node to show which
MODBUS functions can be used to access data of the process image.
Figure 55: Use of the MODBUS Functions

WAGO WAGO-I/O-SYSTEM 750 XTR Specifications

General

Product Type	I/O System
Series	750 XTR
Protection Class	IP20
Number of Modules	Up to 64
Power Supply	24 V DC
Relative Air Humidity	95 % (non-condensing)
EMC Immunity to Interference	EN 61000-6-2
Operating Temperature	-40°C to +70°C
Bus System	Fieldbus independent
Shock Resistance	15g
EMC Emission of Interference	EN 61000-6-4
Approvals	ATEX, IECEx
Connection Technology	Spring-loaded terminals
Number of Channels	Varies by module
Mounting Type	DIN Rail
Certifications	ATEX
