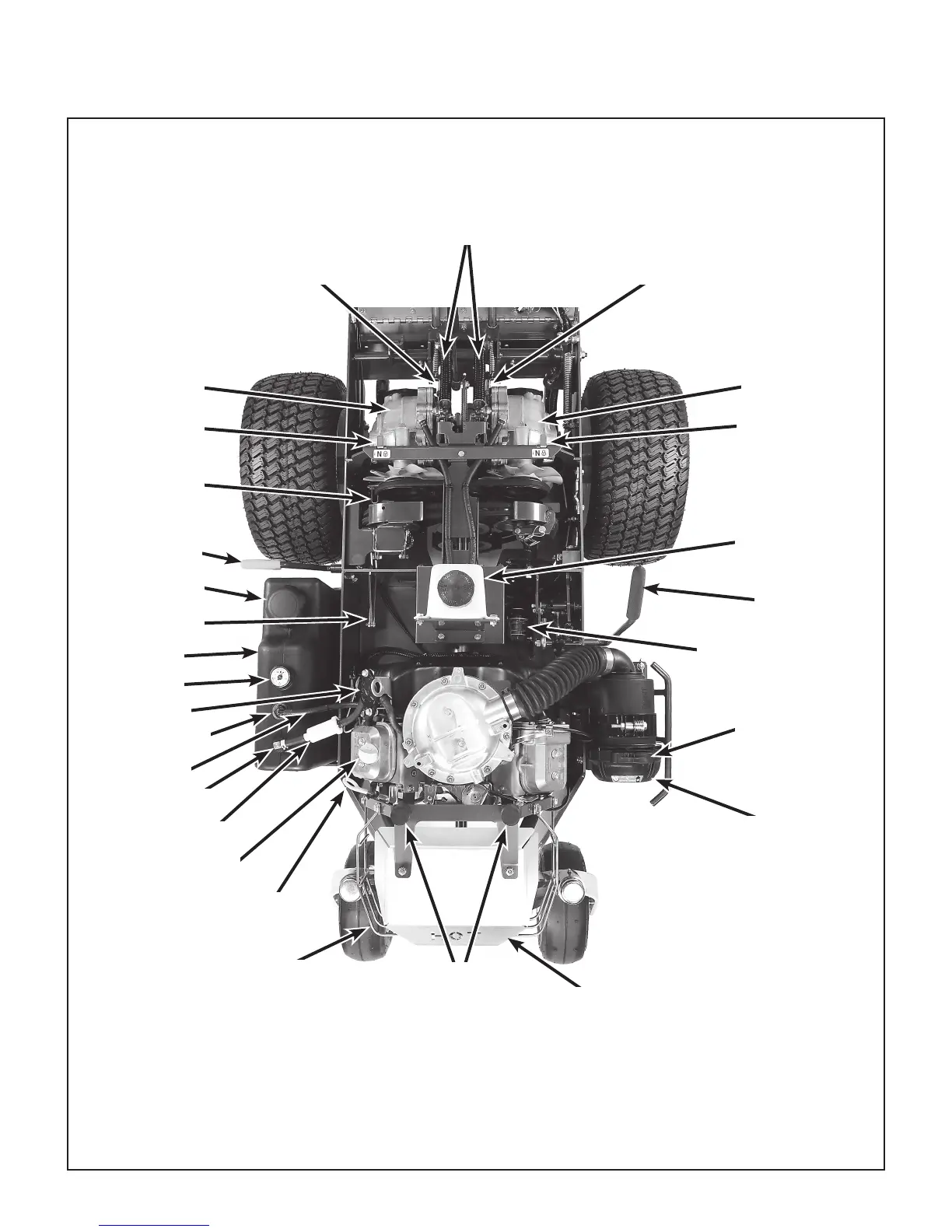

Component
Identication
8
T
op View (Engine Compartment)
Fuel T
ank
Parking Brake
Lever
Muffler Guard
Fuel Gauge
Oil Dipstick
Oil Fill
Fuel Pickup Line
Fuel Filter
Roll Over V
alve
Fuel Pump
EV
AP Line
Fuel T
ank Cap
LH T
ransaxle
LH T
ransaxle
Lockout Arm
Parking Brake
Linkage
Parking Brake
Linkage
RH T
ransmission
Control Arm
LH T
ransmission
Control Arm
Steering Lever
Dampening Springs
RH T
ransaxle
RH T
ransaxle
Lockout Arm
PTO Clutch
Lever
Air Filter
Restriction Gauge
T
ransaxle Oil
Expansion
Reservoir
Air Cleaner
Cover Latch
Muffler Heat
Shield
Rubber Bumpers
(Body Support)
Air Cleaner Cover
11
13
Table of Contents
Default Chapter
3
Table of Contents
3
General Information
5
Highlighted Information
5
Glossary
5
Identifying Number Locations
5
Engine Serial Number Location
6
Servicing of Engine and Drivetrain Components
6
Specifications
7
Engine
7
Electrical System
7
Transmission
7
Blade Drive
8
Tire Size
8
Tire Pressure
8
Mower Deck
8
Dimensions
9
Drive Belts
9
Seat
9
Frame/Body Construction
9
Component Identification
10
Safety Instructions
13
Before Operating
13
Operating
15
Safety, Control, and
18
Instruction Decals
18
Maintenance
19
Assembly Instructions
21
Setup Instructions
21
Battery Service
21
Wet Battery Service
21
Dry Battery Service
21
Battery Charging
22
Mower Deck Assembly
22
Deck Caster Wheels Installation
22
Deck Discharge Deflector Shield Installation
23
PTO Shaft Guard Installation
23
Tilt-Up Roller Wheel Installation
23
Mower Deck Installation on Tractor
24
Deck Installation
24
Deck Leveling
25
Preoperating Checklist
26
Operating Instructions
28
Control Identification, Location, and Function
28
Ignition Switch
28
Engine Choke
29
Engine Throttle
29
Forward Speed Control (FSC)
29
Steering Levers
29
Blade Clutch (PTO)
29
Circuit Breaker
29
Parking Brake
30
Transaxle Lockout Arms
30
Body Latch
30
Hourmeter
31
Starting the Engine
33
Adjusting Ground Speed and Steering
34
Engaging the Blade Drive
36
Stopping the Machine
37
Adjusting Cutting Height
37
Transaxle Lockout
38
Recommendations for Mowing
39
Recommendations for Tilt-Up Deck Operation/Transport
40
Maintenance Instructions
41
Maintenance Schedule Chart
41
Important Tips for Care of the Briggs & Stratton Engine
42
Fuel System
42
Starting/Stopping
42
Cooling System
42
Air Cleaner System
42
Oil
42
Lubrication
43
Engine Oil
43
Engine Break-In Oil
43
Checking Engine Crankcase Oil Level
43
Changing Engine Crankcase Oil/Oil Filter
44
Grease Fitting and Oil Point Lubrication
45
PTO U-Joint Lubrication
45
Mower Deck Gearbox Lubrication
48
Mower Deck Spindle Lubrication
48
Transaxle Fluid Level
48
Transaxle Oil and Filter Change
49
Cleaning
49
Engine Air Cooling System
50
Cylinder Head Cooling Fins
50
Engine Air Cleaner System
51
Cummins/Fleetguard Optiair™ Air Cleaner
51
Grass Buildup in Mower Deck Housing
53
Transaxle Housing
54
Checking/Servicing
55
Security of Air Filtration Components
55
Battery
55
Electrolyte Level
55
Cleaning the Terminals
55
Charging the Battery
55
Tire Pressure
56
Wheel Nut Torque
56
Sharpen Mower Blades
56
Drive Belts
57
Mower Deck Gearbox Oil Seals
57
Spark Plugs
57
Breaker Points
57
Fuel Lines and Clamps
57
Blade Brake Action
57
PTO U-Joints
58
Ignition Wires
58
Safety Switch System
58
Forward Speed Control Friction Lock
58
Replacing/Repairing
59
Drive Belts
59
Engine/Pto Belt
60
Ground Drive Belt
61
Fuel Filter
62
Blade Overload Shear Bolts
63
Shear Pin (if Equipped)
63
Mower Blades
64
Adjustments
65
Transmission Control
65
Steering Lever Position Adjustment
65
Steering Handles Adjustment
66
Neutral Position Adjustment
66
Full Forward Speed Adjustment
68
Straight Tracking Adjustment
68
FSC Neutral Switch Adjustment
68
Forward Speed Control Friction Adjustment
69
Blade Clutch (PTO)
70
Clutch Engagement/Belt Tension
70
Clutch Disengagement/Brake Action
71
Idler Pulley Maximum Travel Adjustment
71
Blade Brake Band Adjustment
72
Tilt-Up Deck Adjustable Stop
72
Operator's Notes
73
Limited Warranty
75
